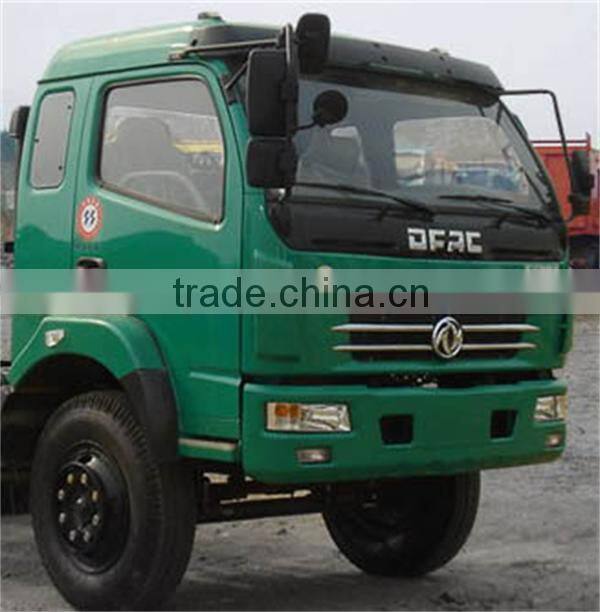

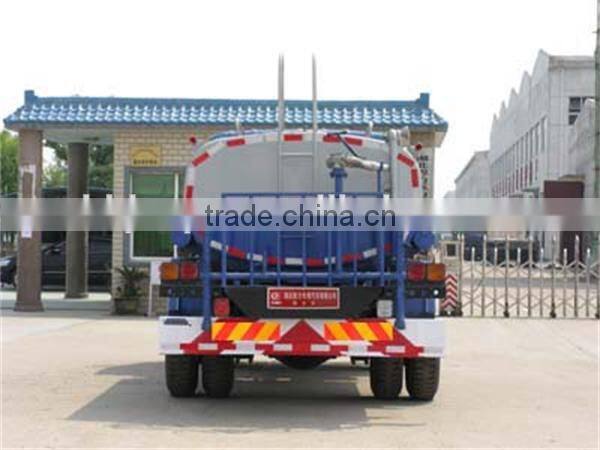

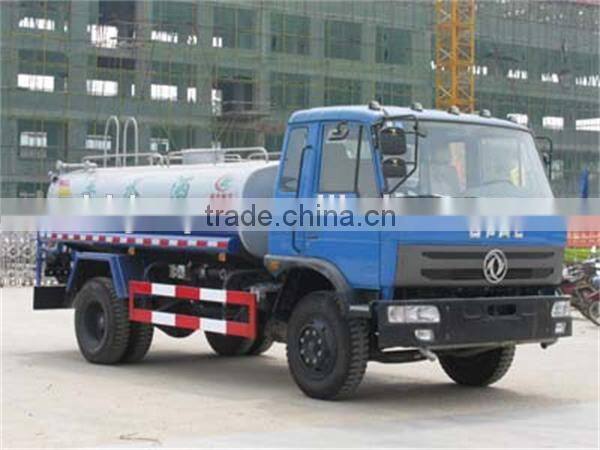

China Factory Supply DFAC 4*2 10000-15000 Litres Water Sprinkler Truck

FOB Price

US$ 20,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Drive Wheel	4x2	Fuel	Diesel
Transmission Type	Manual	Condition	New
Sprinkling Area (m)	12 - 16m	Emission Standard	Euro 3
Engine Capacity	4 - 6L	Tank Volume	10001 - 15001L
Dimensions (L x W x H) (mm)	750024803150	Brand Name	JDF
Place of Origin	Hubei, China	Model Number	EQ1162GJAC
Gross Vehicle Weight	15990	Certification	ISO CCC
After-sales Service Provided	Overseas third-party support available

1,Sprinkler Width>14m.
2,Water tanker capacity :10000-15000 Litres.
3,Engine:190hp.
4,Pass ISO and CCC.

DFAC 10000-15000 Litres Water Tank Truck

Summary Hot line( 0086-18727938399 Fax: 0086-0722-3330262
Basic Information
Vehicle name	Water TRUCK		Chassis:			EQ1162GJAC
Outline size(L×W×H) (mm)	750024803150		Cargo inline size(L×W×H)(mm):			/
Rating mass(kg)	9800		Empty mass(Kg):			5995
Full mass(kg)	15990		Emission standard			Euro 3
Engine Information
Model	YC6J190-33		Type		6 Cylinder Diesel engine
Power/displacement(KW/ML)	140(190HP)/6494		Manufacture		yuchai
Chassis Information
Wheelbase(mm):	3950		Axle load(kg)		5995/9995
Tire	9.00-20,10.00-20,9.00R20 16PR		Max speed (km/h)		85,80
Front suspension(mm)	1250		Rear suspension(mm)		2040
Front track(mm)	1910,1940		Rear track(mm)		1800,1860
Approach angel(°)	34		Departure angle(°)		18
Steering	Power steering		Brake		Air brake
Cabin	3
Special function
Tank capacity(m³)	10000-15000L	Tank material		Carbon steel
Trade terms
Quote Lifetime	30workdays (we promise the quote is effective in the lifetime!)
Payment terms	1. 30% by T/T in advance, 70% by T/T against the copy of Bill-of-Lading. 2. Letter of credit payment for some countries and regions.
Deliver time	10workdays for LHD , 20workdays for RHD after receive 30% earnest money
MOQ	1set
Supply quantity	3000sets/month
Package	waxing

Note:

1.All the data above is for reference ,we keep the right to improve our product.
