Home > Products > refrigerator truck > 2015 New Product Small Freezer Box Truck
2015 New Product Small Freezer Box Truck
- any port in china
- T/T
You May Like
Product Details
| Brand Name | jiangte | Model | JDF5121XLCDF | |
| Place of Origin | HUBEI | Transmission Type | Manual | |
| Condition | New | |||
| Emission Standard | Euro 2 | Fuel Type | Diesel | |
| Dimensions (L x W x H) (mm) | 5400*1790*2350 | Box Dimensions (L x W x H) (mm) | 3500*1700*1700 | |
| Temperature Range | -18 ~ 0 | Gross Vehicle Weight | 3450 |
Product Description

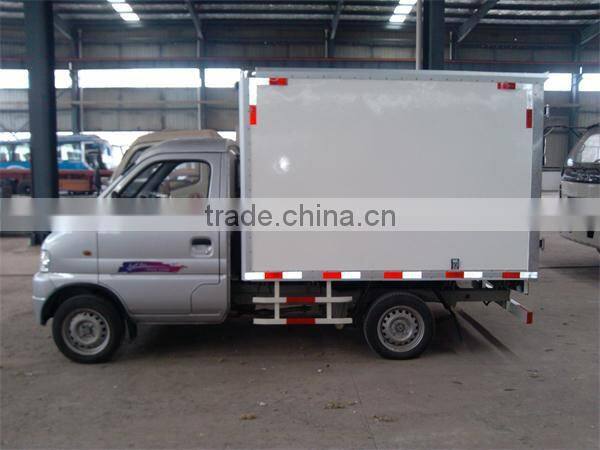

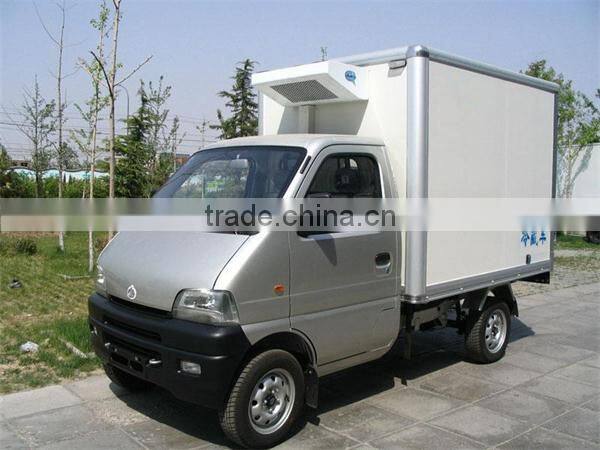

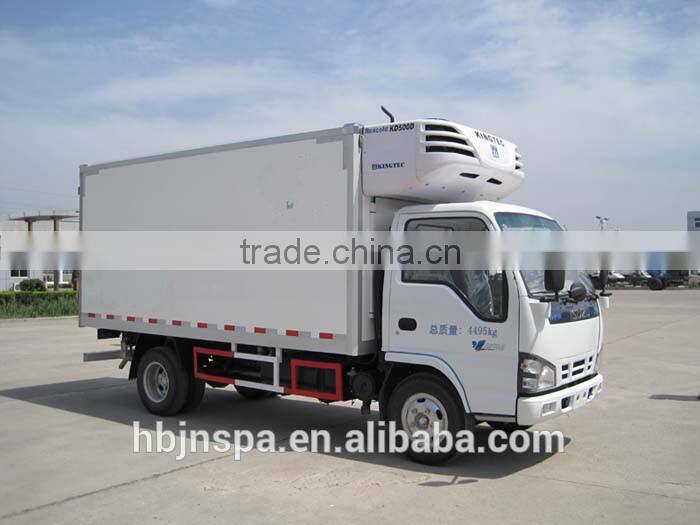

2015 new product small freezer box truck
Product model | Refrigerator truck for good sale | |
Product parameters | Total mass(Kg) | 3450 |
Rated weight(Kg) | 2000 | |
Curb weight(Kg) | 1450 | |
Overall dimension(mm) | 5485*1600*2350 | |
Carriage dimensions (mm) | 3000*1700*1700 | |
| ||
Chassis parameters | Chassis model | BJ1040A1HAY |
Fuel type | Diesel | |
Emission standard | Euro 2 | |
| ||
Engine parameters | Engine model | YN33CRD2 |
Manufacturer | ISUZU | |
Displacement(ml) | 2771 ML | |
Power(HP) | 93HP | |
| ||
Main Parameters
| Rated person of Cab | 2 |
Number of axles | 2 | |
Wheelbase(mm) | 2490 | |
Axle load(Kg) | 1140/2860 | |
Tires No. | 6 | |
Tyre size | 165/70R13LT | |
Max. speed(Km/h) | 95 | |
Approach angle /Departure angle (°) | 19/16 | |
Front overhang /Rear overhang (mm) | 1015/1525 | |
Front track/Rear track(mm) | 1385/1425 | |
Container material:
♦The cover of outside and inside is glass fibre reinforced plastic board (GFRP),the inner is fulled
with rigid polyurethane foam(PURF). Its density is 42-45kg/m³.
♦We use High-strength mucus to glue the GFRP and PURF together to form a closeness and
integrated board.
♦Preservation and refrigeration effect is very good , Insulation performance through the national testing, 3C and ISO certification ,reliable quality, The annual sales volume is very large .
