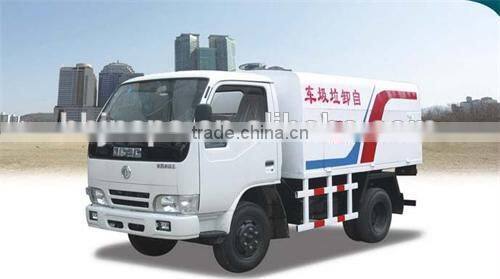

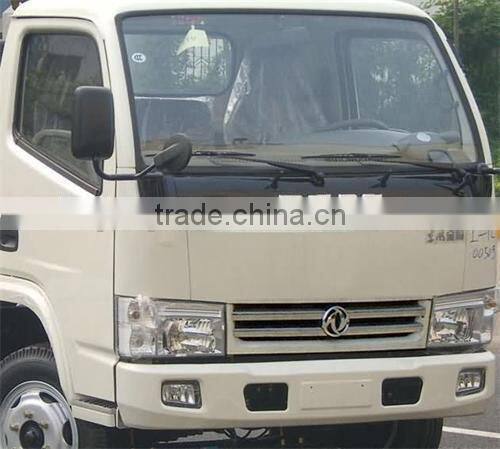

DFAC 4X2 Self-load and Self-unload Garbage Truck

FOB Price

US$ 20,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Drive Wheel	4x2
Type	Other, Self-load and Self-unload Garbage Truck	Transmission Type	Manual
Emission Standard	Euro 4	Volume	1000 - 3000L
Fuel Type	Diesel	Engine Capacity	2771
Size	562019502220	Gross Vehicle Weight	4495
Place of Origin	Hubei, China	Brand Name	JDF
Model Number	JDF5041ZZZDFA4	Certification	ISO CCC
After-sales Service Provided	Overseas service center available

1,Most famous chassis.
2,ISO9001-9002.Quality Standard. CCC approved.
3,High quality.
4,fast delivery time.

DFAC SELF LOADING AND UNLOADING GARBAGE TRUCK

Summary Hot line( 0086-18727938399 Fax: 0086-0722-3330262
Basic Information
Vehicle name	Garbage truck	Chassis:	DFA1041SJ35D6
Outline size(L×W×H) (mm)	562019502220	Cargo inline size(L×W×H)(mm):	/
Rating mass(kg)	1065	Empty mass(Kg):	3300
Full mass(kg)	4495	Emission standard	Euro 4
Engine Information
Model	D28D10-4DA	Type	Diesel engine
Power/displacement(KW/ML)	75(102HP)/2771	Manufacture	Dongfeng Motor Co Ltd
Chassis Information
Wheelbase(mm):	3300	Axle load(kg) F/R	1800/2695
Tire	7.00-16 8PR,7.00R16 8PR,6.50-16 10PR,6.50R16 10PR	Max speed (km/h):	95,80
Front overhang(mm)	1032	Rear overhang(mm)	1513
Front track(mm)	1506,1404,1500	Rear track(mm)	1466,1458,1520
Approach angel(°)	19	Departure angle(°)	16
Steering	steering wheel	Brake	Air brake
Cabin	2/3
Trade terms
Quote Lifetime	30days (we promise the quote is effective in the lifetime!)
Payment terms	1. 30% by T/T in advance, 70% by T/T against the copy of Bill-of-Lading. 2. Letter of credit payment for some countries and regions.
Deliver time	30 workdays
MOQ	1
Supply quantity	3000set/month
Package	waxing

Note:

1.All the data above is for reference ,we keep the right to improve our product.

2..Price will be changed depending on the exchange rate and amount.
