SSM1290 120*90 100W cheap double heads plywood wood mdf engraving cardboard cutting high quality laser engraving machine Quality Choice

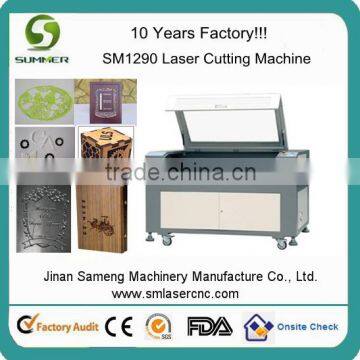

SM1290 1200*900 100W double heads high quality laser engraving machine

We also have other CO2 CNC Laser Cutting Engraving Machines. Please advise us the following information, then we can recommend you the most suitable model:

1. The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)

2. The cutting depth on above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)

3. The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,...)

Sameng CNC Laser Cutting Machine Price Parameter:

Laser cutting machine for plywood, MDF, Balsa Wood, and many other wood types

Sameng woodworking lasers are optimally suited for laser engraving and laser cutting wood and timber, such as for example toys, decorative items, artistic craftwork, souvenirs, Christmas decorations, gifts, architectural models, and for wood inlays.

Types of wood suitable for laser cutting & engraving:

How can wood be cut or engraved with a laser?
When cutting or engraving wood with the laser, personalization and individualization are often most important: text or lines are applied to photo frames to increase their value; photographs or even logos can be realized with incredible detail with the laser. Using the laser provides the user with extreme flexibility and the ability to refine the woods in a very high quality.

Does the wood burn during laser cutting?
In the cutting clearance of the material, the laser will produce a temperature increase that is higher than the sublimation temperature of wood. The "suddenly evaporated" – in other words: sublimated – wood is visible in the form of smoke escaping at a fast rate. This smoke also transports the introduced heat away from the wood. Consequently, there is only relatively low thermal stress on the material near the cutting clearance. By accurate focusing and selecting the appropriate opticsand by supplying compressed air, high-quality cuts can be produced. The cutting edges with their brown color can often be used effectively in the design.

Can any type of wood be cut and engraved with the laser?
Since wood is a natural material, the laser user must consider various characteristics, such as e. g. the density and the resin content, when working with wood. Soft wood types, such as e. g. Balsa wood, require a lower laser power and can be cut at a higher speed. Hard wood, as an example of dense wood types, on the other hand, requires a higher laser power. When working with MDF, which consists of glued wood fibers, Sameng recommends the use of compressed air.

Laser cutting and engraving machine Spare Parts:

Samples:

What other materials can I work on?
A CO2-laser can be used for engraving or etching a wide range of other materials, such as wood, glass, rubber, acrylic and plexiglass, plastics, leather, paper, textiles or foams.

cnc laser cutting machine Workshop View:

Strong fumigation-free wooden case:

Warranty and Service:

1.one year equipment warranty and maintenance for lifetime.

2.Free installation and test before sending and free training for operators

3.Advice for the solutions best for customers requirements.

4.free training and sample provided

Jinan Sameng Machinery Manufacture Co.,Ltd specialized in laser engraving machine, laser cutting machine, CNC router, Laser marking machine etc. we are looking for agents and hope to cooperate with you

Looking for agent and distributors all over the world !

When you send inquiry, Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact –Sameng Laser!

1. The exact material you want to engrave/cut? (wood, acrylic,fabric, leather, rubber, paper, plastic, marble....)
2.  The cutting depth on above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)
3. The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,...)
