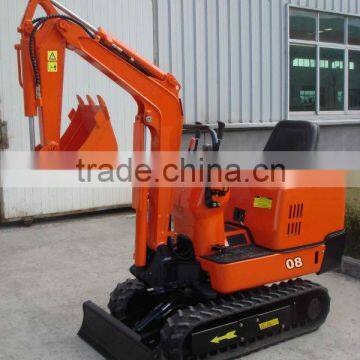

Hydraulic Excavator

FOB Price

US$ 8,888 - 8,888 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Topmac
Model Number	08	Condition	New
Moving Type	Crawler Excavator	Operating Weight	820kg
Bucket capacity	0.02m3	Maximum Digging Height	2000mm
Maximum Digging Depth	1500kg	Machine Weight	820kg
Max Digging Radius	2730mm	After-sales Service Provided	No overseas service provided

Our watchword is surviving on quality, developing on innovation and make best profit for clients. Our company already met ISO900

A. Overall height	1350mm
B. Overall length	2760mm
C. width of upperstructure	760mm
D. Track overall length	1220mm
E. Track overall width shoes	820mm
F. Track shoe width	190mm
G. Center to center(inler to sprocket)	900mm
H. Upperstructure ground clearance	360mm
J. Minimum ground clearance	160mm
K. Tail swing radius	820mm
L. Backfill blade height	200mm
Working weight	820kg
Ground pressure	25kpa
Tail swing overhang

A. Maximum dig radius	2730mm
B. Dig radius at groundline	2650mm
C. Maximum dig depth	1500mm
D. Dump height	2000mm
E. Overall reach height	2720mm
F. Bucket rotation	174°
G. Vertical straight wall dig depth	1040mm
H. Lift above groud	105mm
J. Drop below groud	210mm
K. Minimum rotation radius	1005mm
Arm digging force	8.5KN
Bucket digging force	9.6KN
