Home > Products > Push Button Switch > GB5-AT42 CNGAD GB5 Series 40mm Red Push-pull Button Switch
GB5-AT42 CNGAD GB5 Series 40mm Red Push-pull Button Switch
US$ 0.55 - 2
/ Piece
100 Pieces(Min. Order)
- NINGBO/SHANGHAI
- T/T
You May Like
-
GA1-11ZS,S CNGAD 40mm Red Emergency Push Button Switch
-
GA1-11M,S CNGAD 40mm Blue Mushroom Switch Push Button
-
GA1-11BN,S CNGAD GA1 Series Green Flush Switch Pushbutton
-
GA1-11Y CNGAD Key Selector Pushbutton Switch
-
GA1-11XB CNGAD Short Lever Selector Switch Push Button
-
GA1-11ZS CNGAD Mushroom Head Emergency Pushbutton Switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CNGAD | |
| Model Number | GB5-AT42 | Protection Level | IP65 | |
| Max. Current | 10A | Max. Voltage | 220V |
Product Description

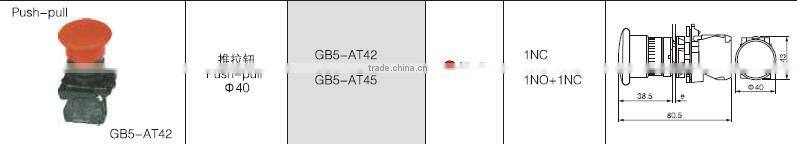

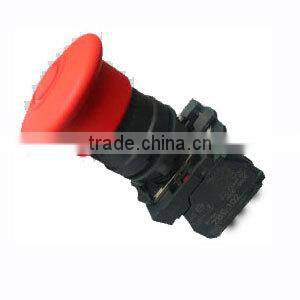

GB5-AT42 CNGAD GB5 series 40mm red push-pull button switch
Application and main technical parameters
1) Operational Voltage: No exceed than 380AC or no exceed than 220DC
2) Operational temperation: -25 to +70
3)Operational humidity: 45% to 90%
4) power-frequency withstand voltage: 2500V AC, 1min
5) contact resistance: ≤ 50mΩ
6) Mechanical durability: Monentary 1000, 000, maintained 250, 000
7)Electrical durability: 500, 000
8) Protection grade: IP65, IP67 with cover
9)Certificate: CCC, CE
