Home > Products > Push Button Switch > GB2-EL8425 CNGAD Red and Green Double Buttons Switch
GB2-EL8425 CNGAD Red and Green Double Buttons Switch
US$ 0.5 - 3
/ Piece
100 Pieces(Min. Order)
- NINGBO/SHANGHAI
- T/T
You May Like
-
GB2-EP42 CNGAD Red Booted Momentary Pushbutton Switch
-
GB2-EA3311 CNGAD Green 30mm Premarked Pushbutton Switch
-
GB2-EC31 CNGAD Green 40mm Mushroom Button Switch
-
GB2-EW8465 CNGAD GB2 Series Red and Green 2 Buttons Illuminated With LED Switch
-
GB2-ES542 CNGAD Red 40mm Emergency Stop Button Switch
-
GB2-EG21 CNGAD GB2 Series 2-position Selector Maintain Key Switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CNGAD | |
| Model Number | GB2-EL8425 | Protection Level | IP65 | |
| Max. Current | 10A | Max. Voltage | 220V |
Product Description

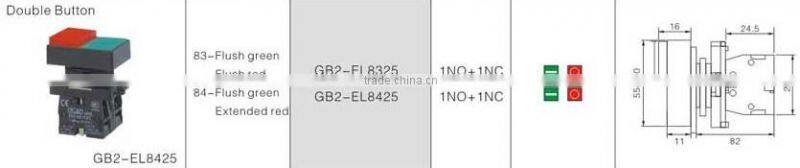

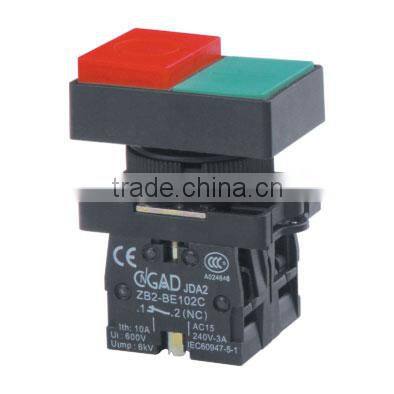

GB2-EL8425 CNGAD red and green double buttons switch
1) Operational Voltage: No exceed than 380AC or no exceed than 220DC
2) Operational temperation: -25 to +70
3) Operational humidity: 45% to 90%
4) power-frequency withstand voltage: 2500V AC, 1min
5) contact resistance: ≤ 50mΩ
6) Mechanical durability: Monentary 1000, 000, maintained 250, 000
7) Electrical durability: 500, 000
8) Protection grade: IP65
9)Certificate: CCC, CE
Contact Us
- Wenzhou Gad Technological Electricity Co., Ltd.
- Contact nameMeg Lin Chat Now
- Phone86-577-62777145
- AddressHuxi Village Liushi Town, Wenzhou, Zhejiang
