Home > Products > Marine Gearbox > Advance Marine Gearbox HCT400A for Marine Engine

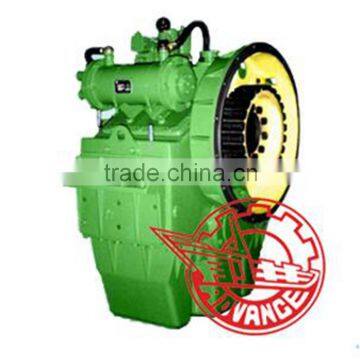

Advance Marine Gearbox HCT400A for Marine Engine
US$ 1,000 - 5,000
/ Piece
1 Piece(Min. Order)
- Shanghai or other ports in China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ADVANCE | |
| Model Number | HCT400A | Gearing Arrangement | Planetary | |
| Input Speed | 1000-2100 r/min |
Product Description
Product Description
Marine Gearbox HCT400A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in small in volume, large in ratio, light in weight and higher loading capacity.
This product are approved by CCS, BV, GL, LR, ABS, NK, DNV, RS and KR Classification Societies.
Product Application
Marine Gearbox HCT400A is suitable for fishing, tug and various engineering boats.
Main Technical Data
| Input speed | 1000-2100r/min | ||
| Reduction ratio | 6.09,6.49,6.93 | Trans. capacity | 0.331kw/r/min |
| 7.42 | 0.309 kw/r/min | ||
| 7.95 | 0.287kw/r/min | ||
| 8.40 | 0.265 kw/r/min | ||
| 9.00,9.47 | 0.243 kw/r/min | ||
| Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
| Rated thrust | 82KN | ||
| Center distance | 375mm | ||
| L×W×H | 784×992×1130mm | ||
| Net weight | 1450kg | ||
| Flywheel | SAE18,16,14 | ||
| Bell housing | SAE0,1 | ||
