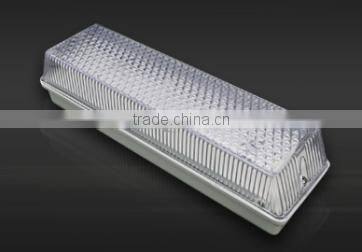

SAA Approved IP65 8w Surface Mounted Led Panel Light
US$ 18 - 20
/ Piece
5 Pieces(Min. Order)
- Shenzhen/HongKong
- T/T Money Gram
You May Like
-
Surface Mounted Downlight IP65 8w Bulkhead Lighting
-
Microwave Motion Sensor 8w Led Lighting
-
Micro Motion Sensor Lighting IP65 8w Led Bulkhead Light
-
Long Range Motion Sensor Lighting IP65 8w Bulkhead Lamp for Wholesale
-
Surface Mounted Lights 8w Bulkhead Light Fitting
-
Surface Mounted Ceiling Ligh 8w Ip65 Light Fixture for Wholesale
Product Details
| LED Light Source | SMD2835 | Install Style | Other, Surface Mounted, Surface Mounted | |
| Lamp Power(W) | 8 | Color Temperature(CCT) | Other, CW/NW/WW | |
| Lamp Body Material | PVC | IP Rating | IP65 | |
| Certification | CE, SAA, C-tick, CE | Place of Origin | Guangdong, China | |
| Brand Name | OEM/ODM, Gooday lighting | Model Number | GL0804SA, GL0804SA | |
| Lamp Luminous Efficiency(lm/w) | 100 | Working Lifetime(Hour) | 50000 |
Product Description
SAA approved IP65 8w surface mounted led panel light specification:
1.Features
| Input Voltage | AC 100-240V |
| Power consumption | 8W (6-12W available) |
| PF | >0.9 |
| LED Driver output voltage | DC 36V |
| LED Driver output current | 300mA ±15mA |
| Light source | SMD LED |
| Color Temperature (CCT) | 3000K /4000K/ 6000K (optional) |
| CRI | > 80 |
| View angle | 120° |
| Housing material | Die-cast aluminum base , PC diffuser |
| IP Rating | IP65 |
| Life Span | Up to 50,000 hours |
| Operation temperature | -20degC to 45degC |
| Dimension | 390*110*90mm |
| Net Weight | 2.2KG(approx) |
| Microwave Sensor: | 100-25% 100-10% 100-0% |
| Sensor range | 360 degree; 0.5 - 8M(adjustable) |
| Sensing interval | 10s to 5min max (adjustable) |
| Sensing interval output | 25% of nominal power |
| Emergency: | 3 hours maintained |
| Battery(High-Temperature) | 9.6V 1600MAH Ni-MH rechargeable |
| Emergency output | 30% nominal power |
| Emergency duration | >3 Hours |
| Charge time | < 12Hours |
| LED indication | Red: charging; Green: fully charged; Yellow: battery fault or disconnected |
| Test button | AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode |
2. Step Microwave sensor dimmable light Schematic diagram

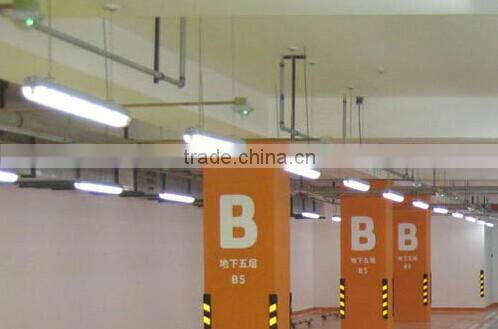

Application:
Wall or ceiling mounted, widely used at workshop, warehouse, cold storage, railway station, tunnels, car park etc.
Gooday limited informatin:
Specializing R&D, production, sale and service of high-tech LED lighting enterprise. Mainly produce multi-function led light: Emergency light, Sensor light, Sensor & Emergency light etc. It can be widely used LED ceiling light, LED bulkhead light, LED panel light, LED tube light etc .The company is abundant with technical R&D strengths and highly professional management resources. We always stick to the business Philosophy of“pursue energy saving and green technology, customer first, quality first, service first”,adhering to seek survival by quality, make development by Technology Innovation, oriented by integrity management.

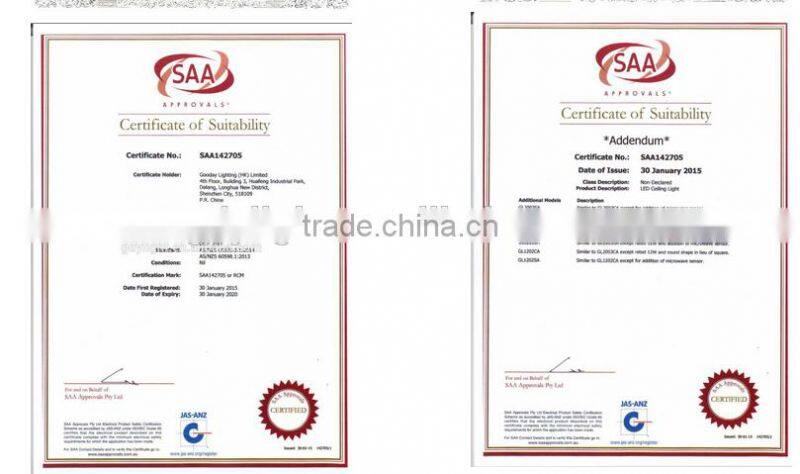

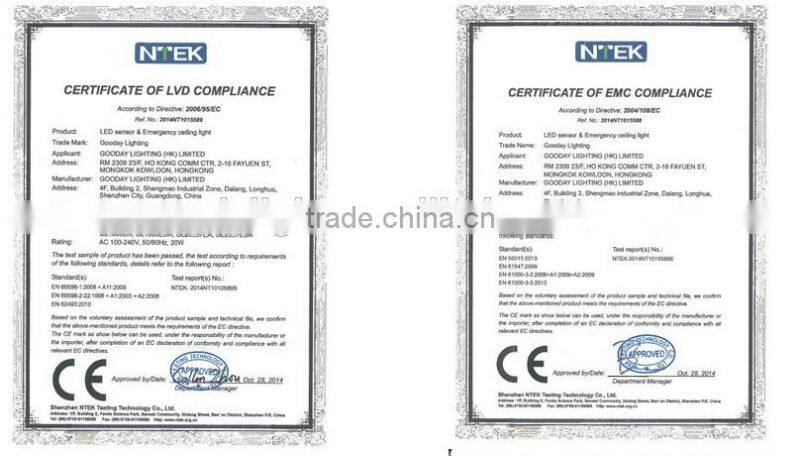

Certification:
Any questions please contact with us without any hesitate!
