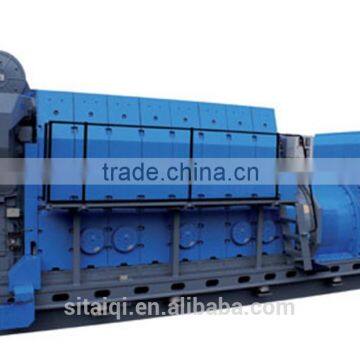

Weichai 2000-4300kW Series General Generating Sets for Land

FOB Price

USD $5,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 400 Set / Sets per Month
Port Shanghai or other ports in China Mainland
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Weichai
Model Number	2000-4300kW Series	Type	Generator
Electricity Generator Type	Other, Diesel Genset	Output Voltage (V)	400

Product Description

2000-4300kW series general Genset uses L27/38 and L32/40 diesel engines jointly produced by Weichai and Germany-based MAN Diesel AG, as its power source, and equipped with brand name generator. Its rotation speed reaches 750r/min. The Genset is manufactured and tested according to ISO8528 and GB/T2820 Standard.

Features:

High accuracy in pressure adjustment; excellent dynamic performances.
Good appearance and compact structure.
High reliability and continuous operation under full load.
Long durability, low fuel consumption, and good environmental adaptability.

Main Technical Data

2000-4300kW Universal Generating Sets

Set model	Rated power (kW)	Rated voltage (V)	Fuel consumption at rated load (L/h)	Weichai L27/38,L32/40 diesel engine						Excitation mode
Set model	Rated power (kW)	Rated voltage (V)	Fuel consumption at rated load (L/h)	Engine model	Rated power (kW)	Rated speed (r/min)	No. of cylinders	Bore×Stroke(mm)	Cooling method	Excitation mode
WD2750/2	2000	400/230	500 .0	6L27/38	2100	750	6	270×380	Open water cooling	Brushless
WD3231/2	2350	400/230	587.5	7L27/38	2450	750	7	270×380	Open water cooling	Brushless
WD3644/2	2650	400/230	662.5	8L27/38	2800	750	8	270×380	Open water cooling	Brushless
WD3919/2	2850	400/230	712.5	6L32/40	3000	750	6	320×400	Open water cooling	Brushless
WD4125/2	3000	400/230	750.0	9L27/38	3150	750	9	270×380	Open water cooling	Brushless
WD4606/2	3350	400/230	837.5	7L32/40	3500	750	7	320×400	Open water cooling	Brushless
WD5294/2	3850	400/230	962.5	8L32/40	4000	750	8	320×400	Open water cooling	Brushless
WD5913/2	4300	400/230	1075.0	9L32/40	4500	750	9	320×400	Open water cooling	Brushless
The frequency of generating sets listed in this table is 50Hz (60Hz generating sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system.

Product Application

Weichai land gen-sets are widely uses as lighting power in factory, drilling, railway, agriculture and others; as mobile power in broadcast communication, flood control and drought relief, engineering construction; as emergency standby power in hospital, hotel , school and other public facilities. Weichai land gen-sets are widely used in national defense, shipping, telecommunication, petroleum, working on plateau, mineral mining, aquaculture, real estate, construction site, traffic and other fields.
