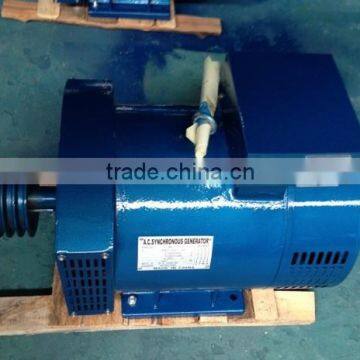

Three-phase A.C. Synchronous 100% Output Generator/alternator STC 30KW FOR GENSETS

 Three-phase A.C. synchronous 100% output generator/alternator  STC 30KW FOR GENSETS

The generators are to be used in town , the countryside , work sites , Mountain and pasture lands as a electric power source for lighting purpose , It can also be used as a reserved power Source for emergent case . The generators are of drip - poof with rotary field type and with the adoption of harmonic excitation system . that allow your easy operation and simple maintenance , The generators are of three - phase four - wire type , making use of atar connection with neutral point . The rated line voltage is 400V . Phase voltage 230V . Frequency 50Hz . power factor 0.8 ( lag ) . It can provide 60Hz and the other voltage’s generator according to necessary . They can be coupled with a prime mover directly or through V - belt making right or reverse continuous rotation at the rated speed . when the revolution slip of prime mover is 3 % and load varies in the range of 0 - 1 00 % cosΦ  1.0 – 0.8 they give Food  constant voltage. After sudden change  ( increase or decrease ) of load . the generators constant voltage . will soon return to their normal working state , without any starting devices the generator can directly start an unloaded squirrel cage lnduction motor.

MINDONG ELECTRIC was established in 1958. Our company has been granted the state awards in 1979. MINDONG brand ST series generator has won the national gold medals three times successively in 1979,1984 and 1989. It’s the only product to be honored in the domestic machinery industry. In 1980, we MINDONG brand trademark obtain the national famous trademark.

Since 1958 China famous trademark,mindong electric ace brand!
