Soshine S1 Max V3 Li-ion Smart Battery Charger - 4 slots 18650 16650 17650 18500 (Latest Version-Real CC/CV algorithm)

Bar Code: 6951151524287

Quick charge
This charger is an intelligent charger especially designed to charge rechargeable 1-4pcs 18650/18650(protected)/17650/18500/17500 Lithium-Ion batteries.

Specification:

Adaptor:

Input: AC100-24V 50/60Hz

Output: DC12V 1800mA

DC car adapter: 12V

DC out: 4.2V 1x1000mA, 2x1000mA, 3x 1000mA, 4x1000mA

Trickle charge: 50mA

Using an adaptor that does not meet these specifications could damage the charger or the adaptor

Feature:

- End-of-charge voltage detection assures the safe and full charge any time
- Short-circuit protection
- Over voltage cut-off protection ------ prevents damage to your battery due to over voltage
- Complete individual channels ------- convenience; prevent batteries charge each other
- Charge Method :CC/CV -------------- charge battery fully and quickly
- Reverse polarity protection ---------- prevent damage to your battery and charger
- Time control  -------------------------   4 individual clocks, after charge 8 hour, the power cut down

- Battery reset ---------------------------- make short circuit protection battery to reset

S1-MAX (New Ver. 03) four charging slots intelligent Li-ion battery charger will charge: 1, 2, 3, or 4 Li-ion 3.7V or 3.6V 18650 18500 16650 17650 17500 rechargeable batteries. Protected or unprotected.

Each battery is charged with current of 1A (1000mA) per channel. Unlike other multibay chargers that rather use "2 channels sharing 1A current" this dedicated 18650 charger will charge your li-ion 18650 at the full speed (1000mA) no matter how many batteries you charge at the same time.

This is what makes Soshine S1-MAX (Latest, 3rd Generation) one of our top choices:

• Charging process is controlled by microprocessor.
• Very fast charging for Li-ion charging standards.
• User friendly design.
• One of the best CC/CV charging algorithms that we tested so far.
• Various safety features.
• Smooth, and easy moving contact rails.

Very useful 12V car adapter is also included with this high quality charger.

• Charging Current: 1x1000mA, 2x1000mA, 3x1000mA, 4x1000mA
• Charging Voltage: 4.2V
• Charging Method: CC/CV

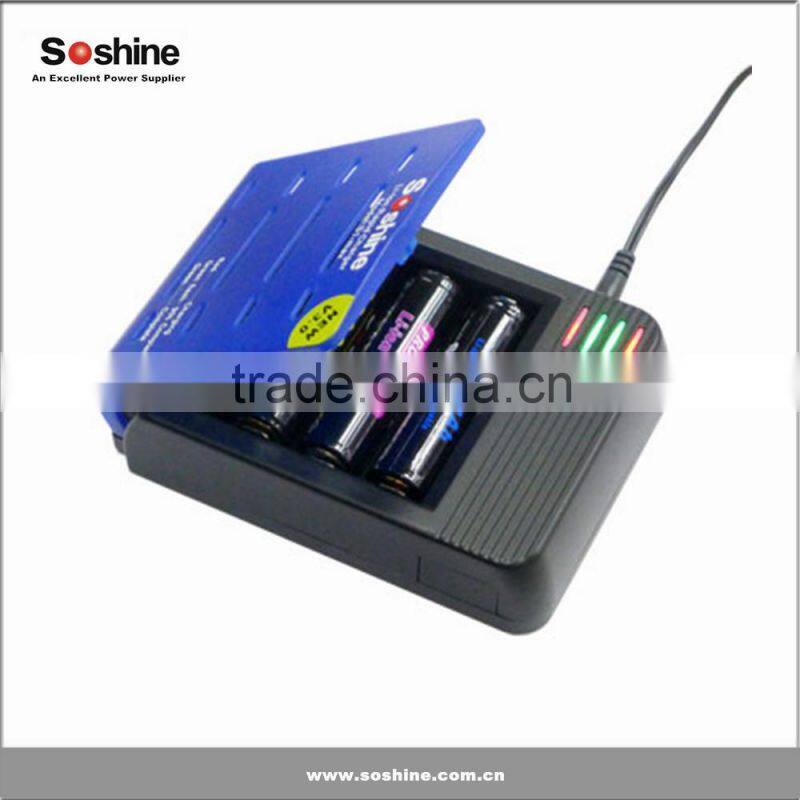

• 4 slots with individual LED indicator for each slot
• Overcharging control feature
• Short-circuit, and reverse polarity protection
• 4 individual timers
• Over temperature protection
• Flashing green LED alert - 90% of charging process completed,( charging process will complete soon [solid green LED light] ).

LED lights - charging code:

• Red ON: Charging in progress
• Green Flash: 90% charged ( charging process soon to be completed )
• Green ON: Charging Completed

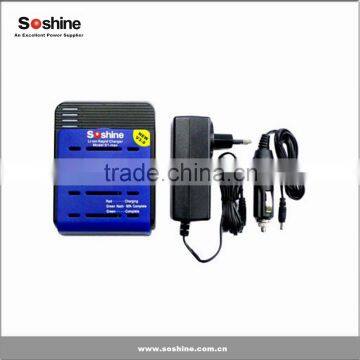

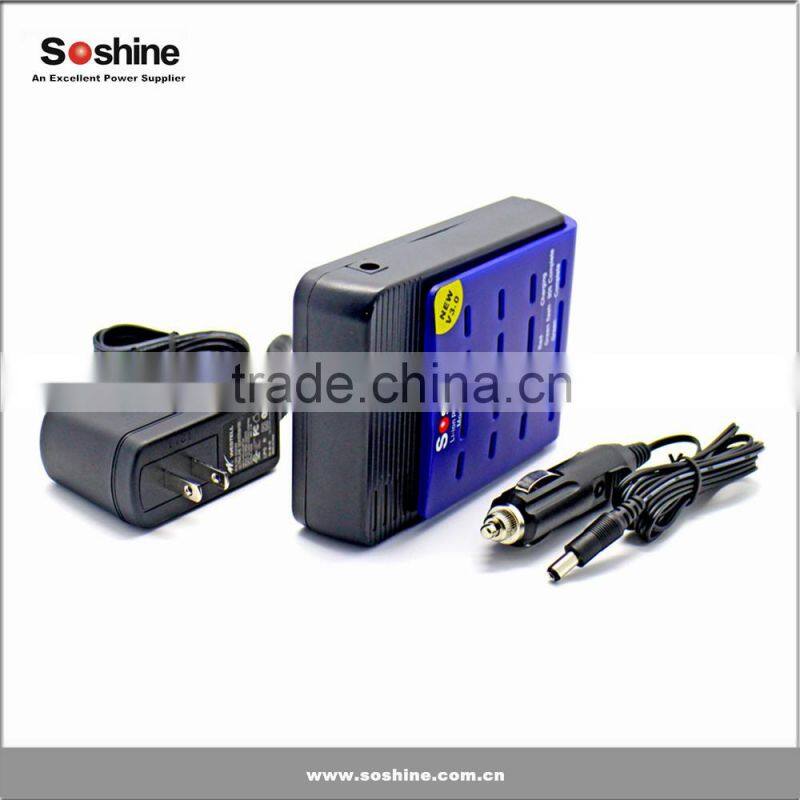

What is in the box?

1x Four battery slots charging unit

1x Wall adapter

1x Car adapter

Box with instructions
