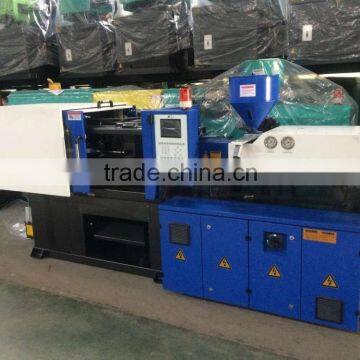

52T Shuangsheng small plastic injection machine new structure
- Ningbo
- T/T
You May Like
Product Details
Condition | New | Type | Preform Injection | |
Style | Horizontal | Brand Name | Shuangsheng | |
Model Number | SSF520-K5 | Place of Origin | Zhejiang, China | |
Plastic Type | Thermoplastic | Automatic | Yes | |
Injection Weight | 64g or 84g | Injection Rate | 70g/s or 92g/s | |
Clamping Force | 520kn | Opening Stroke | 270mm | |
Power(W) | 3200 | Certification | CE ISO9001 | |
After-sales Service Provided | Overseas third-party support available |
Product Description
Our SSF520-K5&SSF520-S are newly developed model, -K5 means fixed pump and -S servo motor.
This model machine applies more rigidity mold platen, with more strength clamping mechanism, can holding much larger molds but with small injection weight.
The main parameters of this machine as following;
Items | Parameter | Unit | SSF520 | |
Injection Unit | Screw diameter | mm | A | B |
28 | 32 | |||
Screw L/D ratio | L/D | 20 | 17.7 | |
shot volume(theoretical) | Cm3 | 70 | 92 | |
injection weight(PS) | g | 64 | 84 | |
OZ | 2.2 | 2.9 | ||
injection rate | g/s | 48 | 65 | |
injection pressure | Mpa | 211 | 162 | |
screw speed | rmp | 200 | ||
Clamping unit | clamp force | KN | 520 | |
open stroke | mm | 270 | ||
distance between tie bars (W*H) | mm | 300*300 | ||
max mould thickness | mm | 340 | ||
min mould thickness | mm | 100 | ||
ejector stroke | mm | 70 | ||
ejector force | KN | 25 | ||
ejector number | PC | 1 | ||
dia of mould location hole | mm | 100 | ||
Others | max pump pressure | Mpa | 16 | |
pump motor power | KW | 5.5 | ||
heating power | KW | 4.7 | ||
machine dimension | m | 3.3*1.1*1.6 | ||
machine weight | T | 2.2 | ||
oil tank capacity | L | 115 |
This machine applied world renowned components to ensure the machine stabilization.
We have full experience of export machine to all territory in the world, no matter from delivery or service, machine quality, we are always do our best to offer our customers.
Our machines covers the areas like South American(Argentina, Chile, Colombia,Brazil), Mid American(Mexico,Dominica), North American( US, Canada), Europe(Denmark, UK, Spain, Netherland, Poland,Russia, Ukraine,Turkey), Asia(Korea, Malaysia, Indonesia,Thailand,Isreal,Lebanon), Australia, South Africa and so on.
There are 2 serials machines, one is fixed pump machine with cheap price and servo motor machine with energy saving and environment protection.
Our customers can select the suitable series per own requirements.
The machine recommended to delivery by full container.
