Home > Products > Copper/Aluminium Wire Drawing Machine > Hot sale copper wire drawn machine

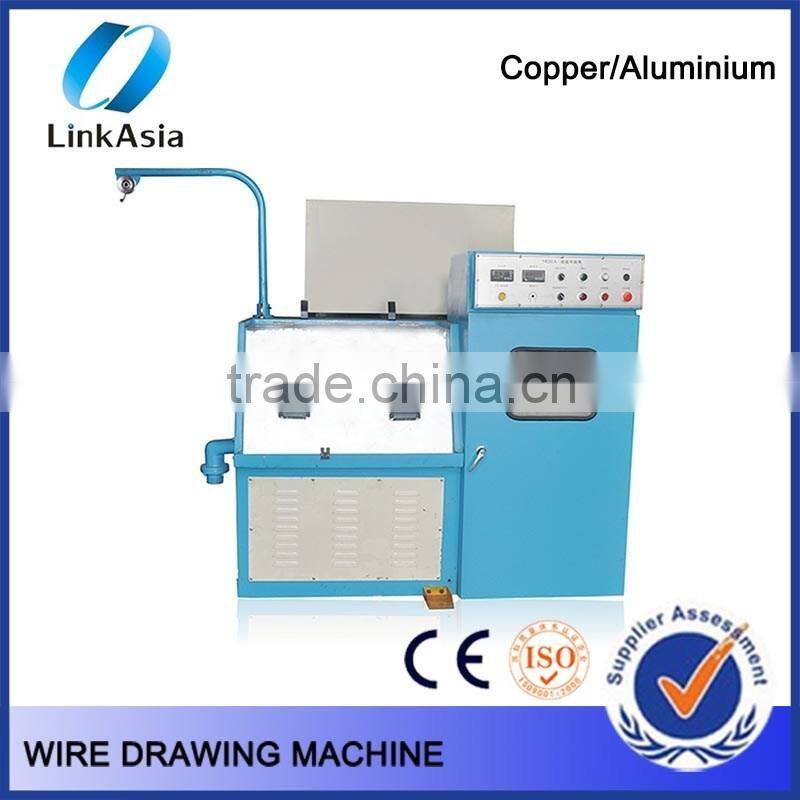

Hot sale copper wire drawn machine
- Shenzhen
- T/T L/C D/P D/A
You May Like
-
Best effect stable wire drawing machine
-
Guangdong factory copper wire rod drawing machine
-
Factory price wire drawing machine for welded wire machine
-
Guangdong Mechanical Copper Drawing Machine
-
Whole sale high carbon straight line wire drawing machine
-
Whole sale low carbon steel straight line wire drawing machine
Product Details
| Condition | New | Inlet Diameter | 1.0-1.6 | |
| Outlet Diameter | 0.25-0.8mm | Place of Origin | Guangdong, China | |
| Brand Name | LinkAsia | Model Number | 14DHA | |
| Voltage | 380V | Power(W) | AC15KW | |
| Dimension(L*W*H) | 2000L*1600W*1900H | Weight | 2200KG | |
| Certification | ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot sale copper wire drawn machine
Main technical parameter of wire drawn machine
| Product Name | Hot sale copper wire drawn machine |
| Model | 14DHA |
| Power control | Dual-inverter |
| Inlet diameter | 1.0-1.6 |
| Outlet diameter | 0.25-0.8 |
| Drawing line speed | 1500m/min |
| Drawing dies no./max | 14 |
| Mechanical Elongation Rate | 17.5%+10% |
| Construction of the machine body | monoblack casting |
| Capstan | Imported Ceramic Capstan |
| Capstan dia.(max) | 268 |
| Dimension of take-up spool(mm) | 300*215*270,400*300*324 |
| Traverse method | flat belt |
| Drawing/take-up motor | AC 15KW/AC5.5KW |
| Drive | Sychronous Motor + flat belt |
| Control Type | PID Dual Inverter automatic control |
| Tension control | Weight type tension pulley |
| Maximum copper load | 50-80kg |
| Power supply | 380V,50/60HZ |
| Volume of lubricant | 40L/min |
| Lubrication type | Lubrication by full immersion |
| Brake | Magnetic brake |
| Machine dimension | 2000L*1600W*1900H |
| Machine weight | 2200kg |
Product show of copper rod wire drawn machine
Similar wire drawn machine you may like
We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the machines away from unexpected damages. We ensure that clients will get their satisfying machines.
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
All the products of our company have already been widely used in metal products area
Our company is located in Humen, Dongguan, Guangdong province.In wire drawing and annealing area, based on practical experience, modern technical, united management, perfect service after sale and good reputation, especially founded public’s praise and brand image in stainless steel drawing industry.
The company focuses on developing and designing wire drawing and annealing equipment. Improving the quality of the final products. Novel design and complete functions can offer various type on basis of wire Dia. for choice to meet customers’ needs and create more convenience and economic benefit.
In wire drawing manufacturer technique, our company break the traditional opinion, use corresponding machine to produce different martial wire instead of one machine drawing various material wire, achieve one martial, one dedicated machine. The drawing technique changed also depend on wire material. Meanwhile, in the wire annealing to increase efficient, combine the wire material requirement, formulate the new technique differ from previous to make the energy substantial drop. Our wire drawing machines and accessories sells to the Far East Asia, Middle East, Africa, India and Egypt.
2012 SHANGHAI WIRE & TUBE EXHIBITION
Welcome to contact us
Link Asia (China) Group of Industries CO.,LTD
Address:Unit 1016,Block 1,Yizhou Business Center,Liansheng Zhong Rd,Humen Town,Dongguan Province,China
Attn:Ella Li
Tel:8613725830159 86 0769-85180450
Skype:haiyingand
