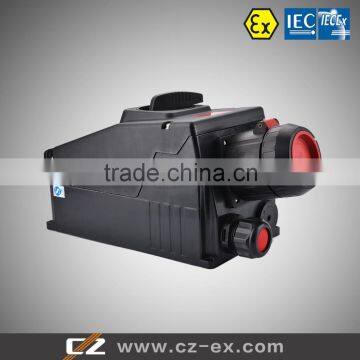

ATEX and IECEx Certified Explosion-proof GRP Industrial Male and Female Plug and Socket 63A
- Shanghai or Ningbo
- T/T Credit Card
You May Like
-
IECEx&ATEX certified full plastic GRP explosion-proof plug and socket/receptacle
-
ATEX,IECEx Certifying,TUV Certified Full plastic explosion-proof plugs and sockets
-
ATEX plug socket,16A socket
-
explosion-proof coupler socket|ATEX ex proof socket
-
ATEX explosion-proof panel socket
-
explosion-proof plug,32A socket,
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CZ | |
| Model Number | CZ0253 | Type | Wall Socket | |
| Grounding | Self Grounding | Rated Voltage | Up to 690V | |
| Rated Current | 63A | Application | Industrial |
Product Description
ATEX and IECEx Certified Explosion-proof GRP Industrial Male and Female Plug and Socket 63A
Main Technical Data:
- Ex mark: Ex ed IIC T6 DIP A21 TA, T6
- Applicable scope:Degree of protection: IP66Ambient temperature: -40≤Ta≤55°C
- Used in petroleum, petrochemical and marine industry
- In explosive gas atmosphere: zone 1 and 2
- In flammable dust atmosphere: zone 21 and 22
- Frequency: 50/60Hz
Order Specification
Name of Product | Clock and Voltage | Current and Poles | Cabel Outside Diameter | Aux. Contact | Weight | Order No. |
Wall type socket | 9h 200-250V 3P+PE | 63A 4P | Φ22~35mm (1xM50) | No | 8.1kg | CZ0253 4409 0001 |
6h 380-415 3P+PE | No | CZ0253 4406 0001 | ||||
Yes | CZ0253 4406 4001 | |||||
7h 480-500V 3P+PE | No | CZ0253 4407 0001 | ||||
Yes | CZ0253 4407 4001 | |||||
5h 600-690 3P+PE | No | CZ0253 4405 0001 | ||||
Yes | CZ0253 4405 4001 | |||||
6h 200-250V 380V-415V 3P+N+PE | 63A 5P | No | CZ0253 4506 0001 | |||
Yes | CZ0253 4506 4001 |
Name of Product | Clock and Voltage | Current and Poles | Cabel Outside Diameter | Aux. Contact | Weight | Order No. |
Plug | 9h 200-250V 3P+PE | 63A 4P | Φ19~28mm | No | 0.85kg | CZ0253 7409 0001 |
6h 380-415 3P+PE | No | CZ0253 7406 0001 | ||||
Yes | CZ0253 7406 4001 | |||||
7h 480-500V 3P+PE | No | CZ0253 7407 0001 | ||||
Yes | CZ0253 7407 4001 | |||||
5h 600-690 3P+PE | No | CZ0253 7405 0001 | ||||
Yes | CZ0253 7405 4001 | |||||
6h 200-250V 380V-415V 3P+N+PE | 63A 5P | No | CZ0253 7506 0001 | |||
Yes | CZ0253 7506 4001 |
