Home > Products > Electrical apparatus > ATEX Certifying,IECEx and TUV Certified Full plastic explosion-proof plugs and sockets

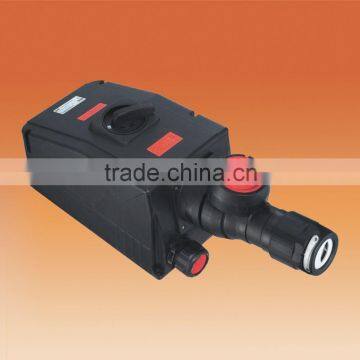

ATEX Certifying,IECEx and TUV Certified Full plastic explosion-proof plugs and sockets
- Shanghai or Ningbo
You May Like
-
ATEX and IECEx Certified Explosion-proof GRP Industrial Male and Female Plug and Socket 63A
-
IECEx&ATEX certified full plastic GRP explosion-proof plug and socket/receptacle
-
ATEX,IECEx Certifying,TUV Certified Full plastic explosion-proof plugs and sockets
-
ATEX plug socket,16A socket
-
explosion-proof coupler socket|ATEX ex proof socket
-
ATEX explosion-proof panel socket
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CZ | |
| Model Number | CZ0254 | Rated Voltage | Up to 690V | |
| Rated Current | 125A | Application | Industrial |
Product Description
Specifications
1) Applying for ATEX,IECEx certificates2)With domestic conformity certificate of explosion-proof
3)IP66
Main Technical Data:
- Ex mark: Ex ed IIC T6 DIP A21 TA, T6
- Applicable scope:
- Used in petroleum, petrochemical and marine industry
- In explosive gas atmosphere: zone 1 and 2
- In flammable dust atmosphere: zone 21 and 22
- Degree of protection: IP66
- Ambient temperature: -40≤Ta≤40°C
- Frequency: 50/60Hz
Order Specification
Name of Product | Clock and Voltage | Current and Poles | Cabel Outside Diameter | Aux. Contact | Weight | Order No. |
Wall type socket | 9h 200-250V 3P+PE | 125A 4P | Φ27~48mm (1xM63) | No | 13.5kg | CZ0254 4409 0001 |
6h 380-415 3P+PE | No | CZ0254 4406 0001 | ||||
Yes | CZ0254 4406 4001 | |||||
7h 480-500V 3P+PE | No | CZ0254 4407 0001 | ||||
Yes | CZ0254 4407 4001 | |||||
5h 600-690 3P+PE | No | CZ0254 4405 0001 | ||||
Yes | CZ0254 4405 4001 | |||||
6h 200-250V 380V-415V 3P+N+PE | 125A 5P | No | CZ0254 4506 0001 | |||
Yes | CZ0254 4506 4001 |
Name of Product | Clock and Voltage | Current and Poles | Cabel Outside Diameter | Aux. Contact | Weight | Order No. |
Plug | 9h 200-250V 3P+PE | 125A 4P | Φ31~55mm | No | 1.3kg | CZ0254 7409 0001 |
6h 380-415 3P+PE | No | CZ0254 7406 0001 | ||||
Yes | CZ0254 7406 4001 | |||||
7h 480-500V 3P+PE | No | CZ0254 7407 0001 | ||||
Yes | CZ0254 7407 4001 | |||||
5h 600-690 3P+PE | No | CZ0254 7405 0001 | ||||
Yes | CZ0254 7405 4001 | |||||
6h 200-250V 380V-415V 3P+N+PE | 125A 5P | No | CZ0254 7506 0001 | |||
Yes | CZ0254 7506 4001 |
