High Quality Universal Gas Heater Parts
- Ningbo/Shanghai/Hangzhou
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JIALI | |
| Model Number | ODS08 |
Product Description
Specifications
1. Above 15 years experience engineers in gas line2. Complete testing method according to Europe standard
3.Timely delivery

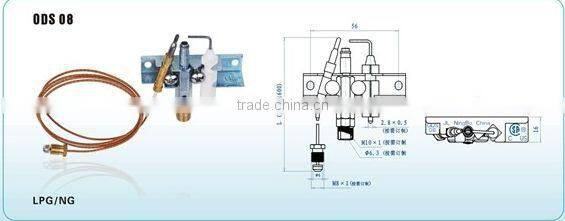

High Quality Universal Gas Heater parts
For this ODS ignition system we design for the gas heater ,normally we design according to customer's requirement .
In nowadays prople use gas more and more , we are the company who can help people to keep safe when they use gas for heating ,
cooking .here you can check our different types ODS product
Technical parameter | |
Heating characteristic | ≥12mV (within 20s at 650°C) |
Cooling characteristic | ≤1.5mV(within 60s) |
Range of length | 150mm(5.9inch)~ 1800mm(71inch) |
Range of resistance | (10~50)±3 mΩ |
| |
Operating conditions: | |
Range of ambient temperatures: 0°C ~ 52°C (32°F to 125°F) | |
| |
Maximum operating temperatures: | |
Thermocouple Tip:750ºC / 1382°F | |
Thermocouple Wire:180ºC / 356°F | |
Cold Junction:150 ºC / 302°F Injector(Burner):750ºC / 1382°F | |
1,Working principle: ODS use thermocouple component as a sensor to search the temperature of pilot flame
in order to drive the electromagnetic valve,when the space is hypoxia(O-17%~19%),
the flame temperature is under 400°C,there is not enough potential to open the valve ,
so then the valve will be closed to keep safe .
2,Function: automatic ignition for gas appliance ,hypoxia protection.
3,Air source :NG,LPG
4,Output Potential: ≥12MV.
5,Injector : stainless steel/ruby/copper.
6,All design and production are may according to customer’s demand.

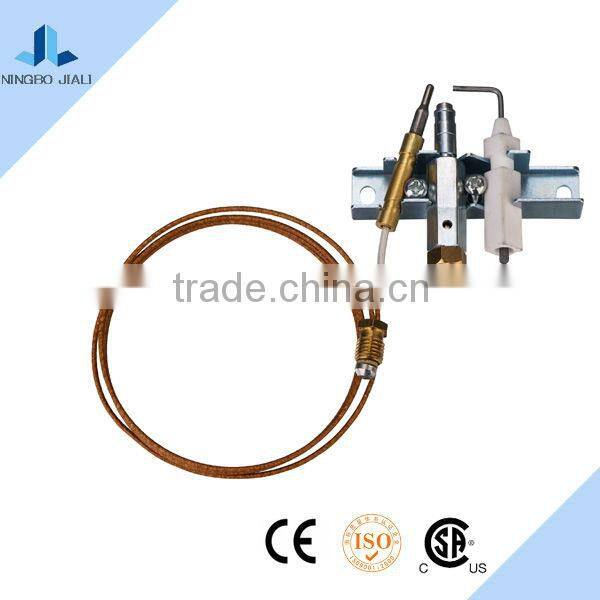

High Quality Universal Gas Heater parts
Technical parameters | |
Applicable gas species | LPG,NG,Propane & Butane |
CO2 | 0.8%-1.5% |
O2 | ≥19.0% |
CO | ≤50ppm |
Inner resistance | 5-50±3 mΩ |
No-load potential | ≥20mV(650℃) |
Connector | Nut (M8*1,M9*1) or others |
Axial tension 50N, sustain 1 min, no loose, no cut | |
The length according the client’s request | |
Other styles
Certificate
High Quality Universal Gas Heater parts
PACKING & SHIPPING | |
PCS/BOX | 25pcs/box |
BOX/CTN | 8box/ctn 200pcs/ctn |
CTN SIZE | 400*250*300 mm |
SHIPPING | By courier &By sea & By air |
DELIVERY | 10-25 days |
About JIALI
Ningbo JiaLi Gas Appliance & Science and Technology Co., Ltd. was established in 1998, specializes in manufacturing of gas appliance,
such as: Thermocouple,ODS,Thermostat,Magnet valve etc.
In 2011, ERP system & ISO (matching the ERP) began to be applied to fully guarantee products' quanlity and efficient internal management. Meanwhile,
Furthermore, our ODS has 5 patents,and passed the CSA by one-time. Especially,the shut-off point of our ODS products can be controlled within 0.3% (CO2, for example 0.8~1.1%).
1.Inquiry response:Your inquires will be replied in 24hours.
2.Samples support:Two free samples are avaliable in 2-5days.
3.Delivery time:Your shipment will be loaded in 15-25days,depeds on quantity.
More details, please contact Annie,thanks!
