Gas Pilot Burner
- Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Jiali | |
| Model Number | ODS05 |
Product Description
Specifications
1. CE/CSA/SGS/ISO2. Sample is available
3. CO2 fluctuating quantity 0.3% max
4. According to customers' drawing

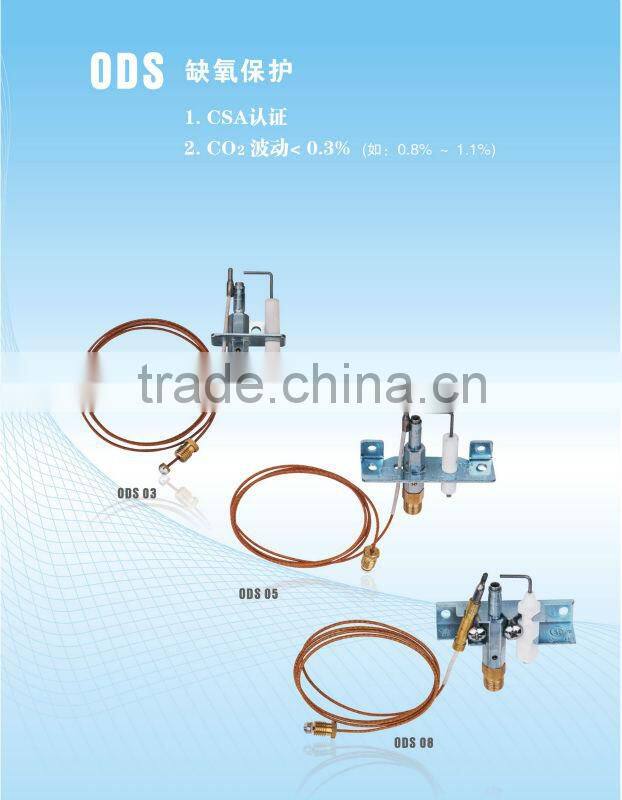

1. Oxygen depletion safety shut-off system
The system is made up of thermocouple, ignitor, the injector(burner) assembly and the nozzle assembly and so on. It is designed to shut off the main burner of the gas appliance, when the oxygen content of the room in which the appliance installed is reduced below a predetermined level, so as to protect user’s health and safty.
2. Useful range of ODS
NG,LPG,Butane and propane
3. Application of ODS
gas heater or others, can design according to customer's requirement .

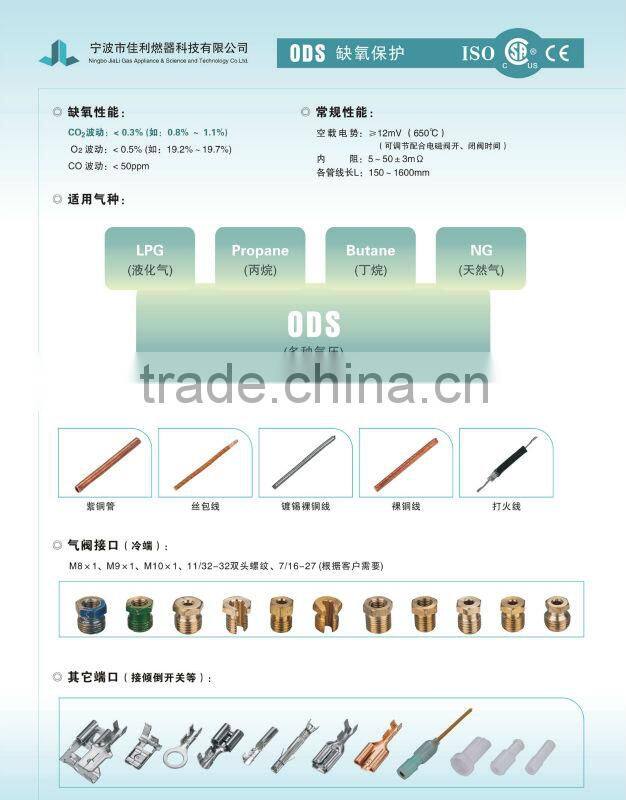

4. Hypoxia performance of ODS :
shut-off point of CO2 : <0.3% (0.8% to 1.1%)
O2 fluctuation: <0.5% (eg: 19.2% to 19.7%)
CO fluctuation: <50ppm
5. Certificate
CSA & 5 patents
6. General Performance
No-load EMF: ≥ 12mV (650 ° C)
Internal resistance: 5 to 50 ± 3mΩ
7. About us
(1). JIALI was established in 1998, has nearly 15 years exporting experience
(2). Manufacturing Thermocouple,ODS,Thermostat,Magnet valve etc.
(3). CSA CE ISO SGS
(4). producing by your drawings,samples or pictures
