0.49inch 64*32 IPS SSD1306 Controller Thin Oled Display With Board
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
7inch 800*480 Lcd 16:10 Capacitive Touch With IIC Interface
-
5inch 800*480 IIC Interface CTP
-
7inch 8:5 USB Interface Capacitive Touch Screen for 1280*800 Lcd
-
7inch 5:3 USB Interface Capacitive Touch Panel Support WIN 7/8 and Linux Android System
-
26inch 1366*768 Desktop Lcd Monitor
-
24inch FHD Desktop Cctv Monitor
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wilcon | |
| Model Number | SW049N-SV01-B | Type | Other, OLED, OLED |
Product Description
0.49inch 64*32 IPS OLED panel mounted board with SSD1306 controller
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 0.49inch OLED |
| 2 | Model number | SW049N-SV01-B |
| 3 | Size | 0.49INCH |
| 4 | Type | OLED |
| 5 | Viewing angle | IPS |
| 6 | Display scale | 2:1 |
| 7 | Display mode | / |
| 8 | Resolution | 64*32 |
| 9 | Piexel pitch | 0.175(W) x 0.175 (H) |
| 10 | Dimension | 14.5*11.4*1.2MM |
| 11 | Active area | 14.5*11.4*1.2MM |
| 12 | Color | Blue/white |
| 13 | Color arragement | / |
| 14 | Interface | I2C |
| 17 | Response time | 10us |
| 18 | Contrast ratio | 2000:1 |
| 19 | Brightness | 130NITS |
| 20 | VDD | 3.3V |
| 21 | Backlight | / |
| 22 | Backlight color | / |
| 23 | LED lifetime | / |
| 24 | Voltage for LED | / |
| 25 | Current for LED | / |
| 26 | Consumption | / |
| 27 | Module weight | 1g |
| 28 | Drive IC | SSD1306 |
| 29 | Interface connect type | solering type |
| 30 | Surface tratement | / |
| 31 | Pin number | 14PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -40----70℃ degrees |
| 2 | Storage Temperature | -40----85℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | No touch |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

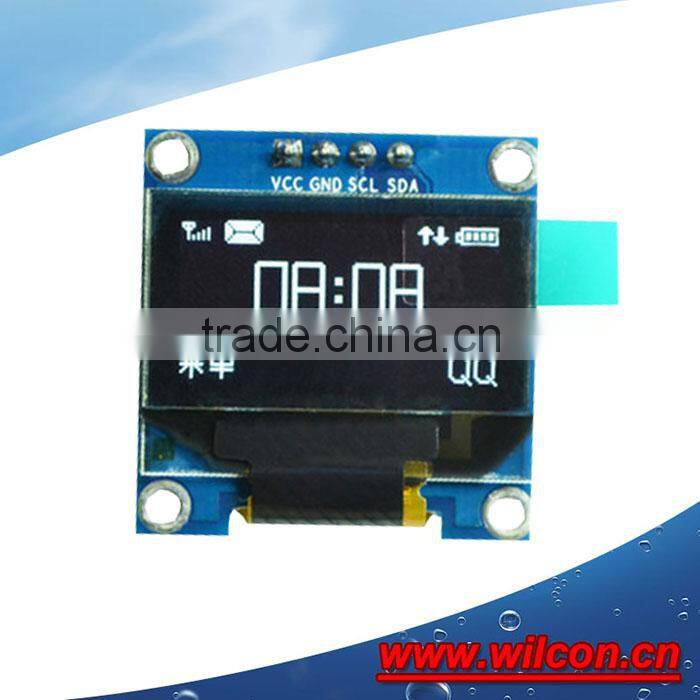

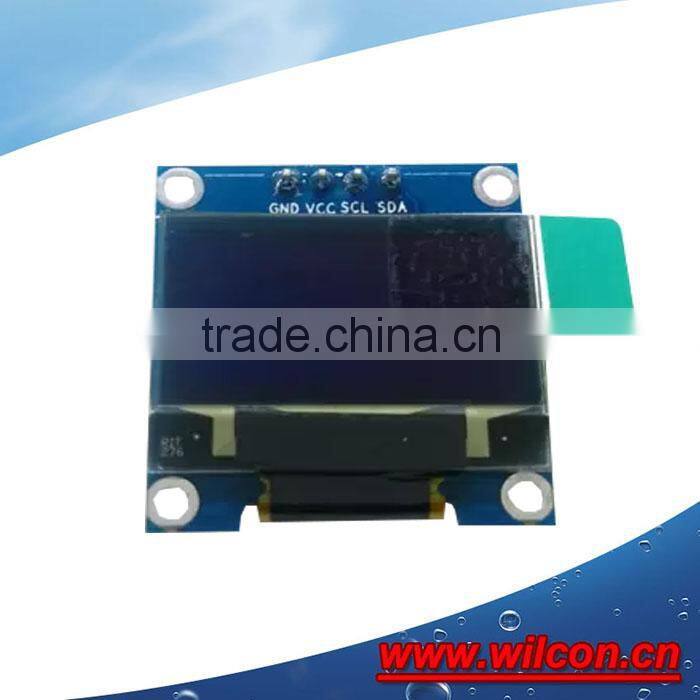

LCD PICS

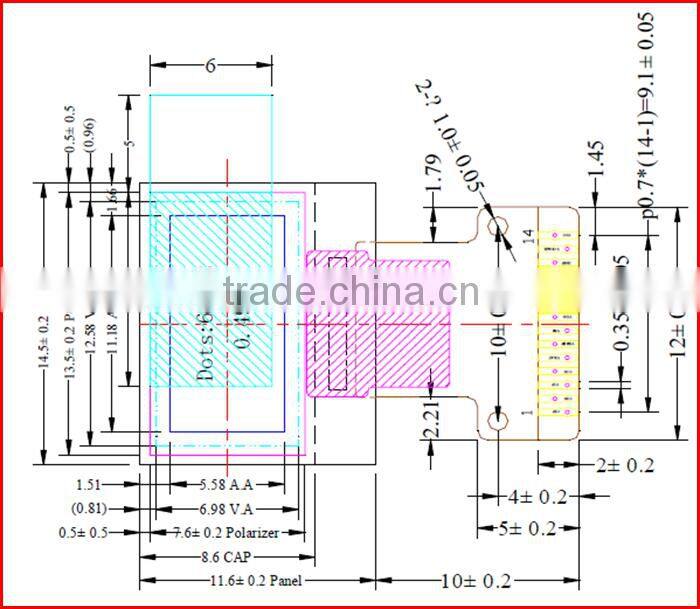

OLED structure

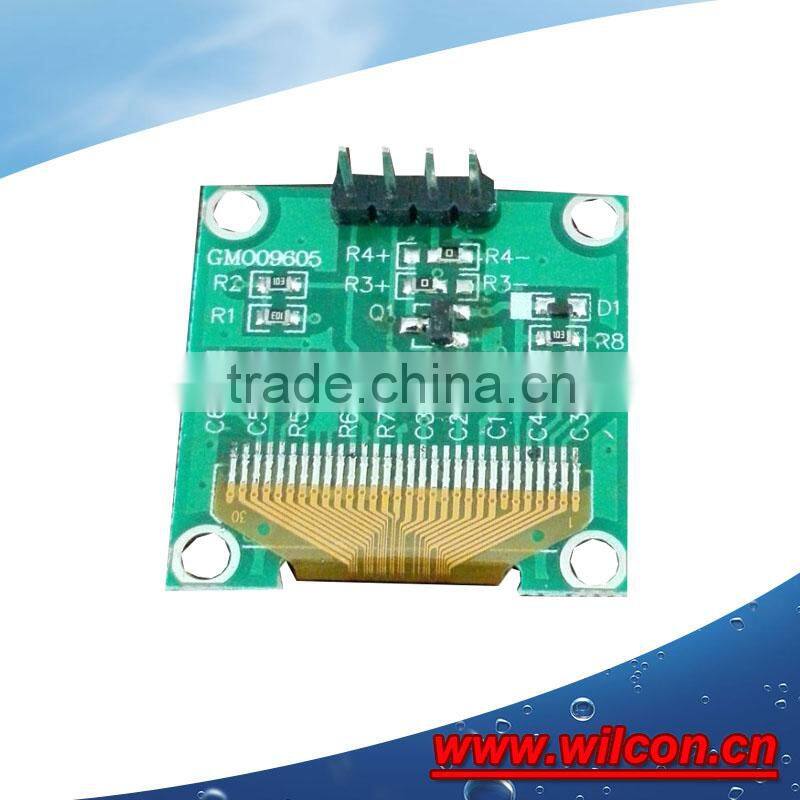

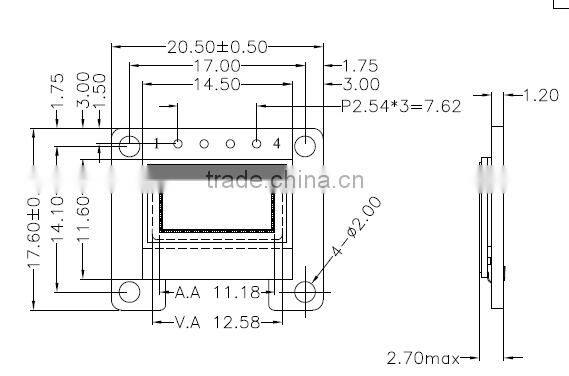

Board structure
