5inch 800*480 tft lcd screen module with lvds interface
Negotiable
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
5.0inch 720*1280 all free angle lcd panel support mipi interface
-
5.0inch 720*1280 IPS lcd display with mipi interface
-
10.1inch lvds 1000nits 1280*800 high brightness IPS lcd touch screen with USB interface CTP
-
10.1inch lvds interface 1280*800 high brightness IPS lcd touch panel with IIC CTP
-
10.1inch 1000nits lvds intenrface 1280*800 sunlight readable tft lcd display
-
2.8inch 240*320 ILI9341 700cd/m2 sunlight readable lcd module panel
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wilcon | |
| Model Number | SW050N-SV1-L | Type | Other, TFT, TFT |
Product Description
5inch 800*480 lvds interface lcd panel display with LVDS to RGB board
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 5.0inch lvds interface lcd panel |
| 2 | Model number | SW050N-SV1-L |
| 3 | Size | 5.0INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 6:00 |
| 6 | Display scale | 16:9 |
| 7 | Display mode | Transmissive |
| 8 | Resolution | 800*480 |
| 9 | Piexel pitch | 0.045*0.135mm |
| 10 | Dimension | 120.7*76.3*3.1mm |
| 11 | Active area | 108(W)*64.8(H)mm |
| 12 | Color | 262K( lvds interface lcd panel ) |
| 13 | Color arragement | RGB |
| 14 | Interface | lvds |
| 17 | Response time | 25ms |
| 18 | Contrast ratio | 500:1 |
| 19 | Brightness | 250cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 21.7V |
| 25 | Current for LED | 40mA( lvds interface lcd panel ) |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions for 5inch lvds interface lcd panel | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel for 5inch lvds interface lcd panel | ||
| 1 | Touch | RTP ,CTP is available,depends on customer need |
| Part 4:Lead time for 5inch lvds interface lcd panel | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.
LCD PICS for 5inch lvds interface lcd panel
lvds interface lcd panel structure
BOARD structure
Packaging & Shipping
Our Services
Company Information
Contact Us
- Shenzhen Wilcon Electronics Technology Co., Ltd.
- Contact nameLynn Lee Chat Now
- Phone86-755-66603873
- AddressGongming, Shenzhen, Guangdong
Product Categories
| Capacitive touch panel | CCTV monitor | Driving board | E-ink/E-paper |
| High brightness lcd | IPS lcd | New Products | OLED |
| other products | TFT lcd module |
New Products
-
2.4inch 240*320 ILI9341 MCU interface tft lcd display screen with 4 wire resistive touch screen
-
2.4inch 240*320 ILI9341 controller IC MCU interface tft lcd display module
-
4.3inch 480*272 lvds interface lcd module
-
4.3inch 480*272 lvds interface touch screen panel with CTP
-
4.3inch 480*272 lvds interface touch screen lcd
-

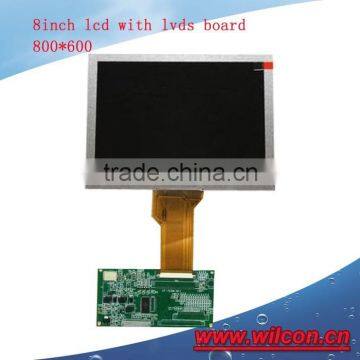

8inch 800*600 RGB interface tft lcd display with lvds controller board
-
