Ticket office alarm system two way intercom system

This product is applicable to any window where is different to communicate, to achieve two-way automatic switching of voice communication between customer and employee who inside and outside of the window glass; which can get the best communication effect. This product adopts the most advanced language processing chip with unique design and strict quality management, can achieve the highest standards in sound quality, volume, anti-jamming, anti howling and other performance

Product  Configuration

 1.Main (internal) speaker  1pcs

2.Deputy (outside) speaker  1pcs

3.Installation clamp 4 pcs

4.User manual  1 pcs

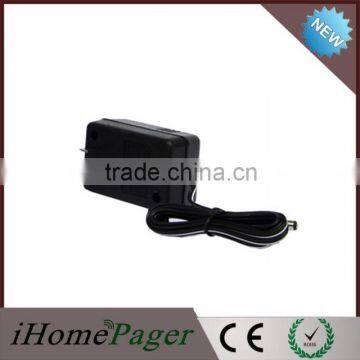

5,Transformer (DC12V)  1 pcs

Product Specifications

 Working voltage:DC12V

Working current:500mA

Output power of Master: 3w

Output power of substation: 3w

Material of Main kit: High-quality aluminum

Material of substation: High-quality aluminum

Master dimension:115*75*105mm

Substation dimension:φ67*20mm

Microphone Sensitivity:-46dB±2dB 20Hz~16KHz

Weight:1.13kg/set

Pakcing:20 sets/carton(425*315*520mm)

Product Characteristics

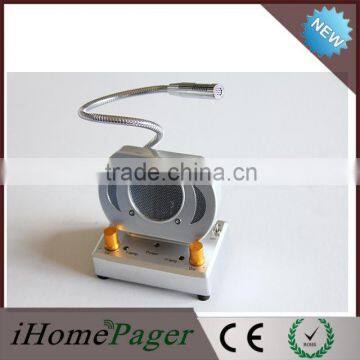

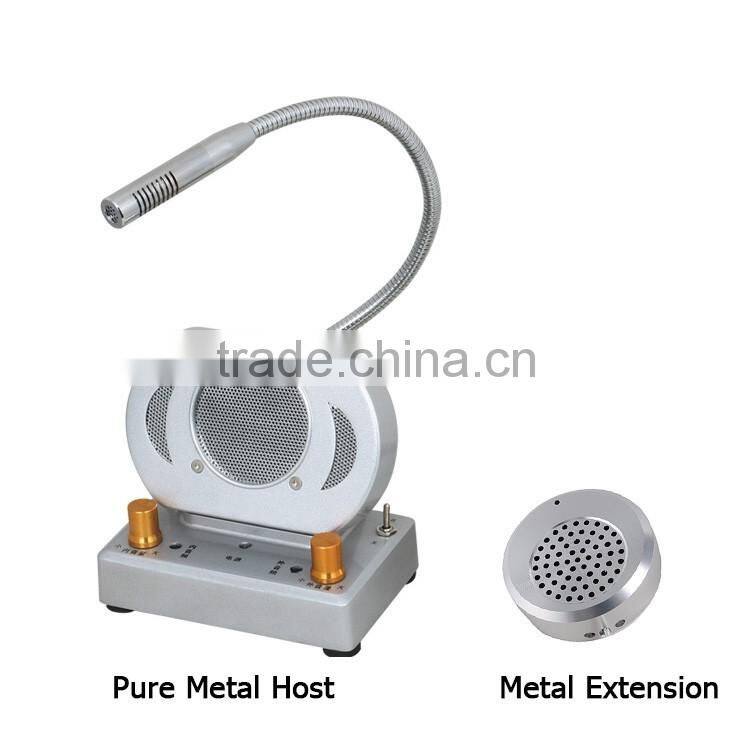

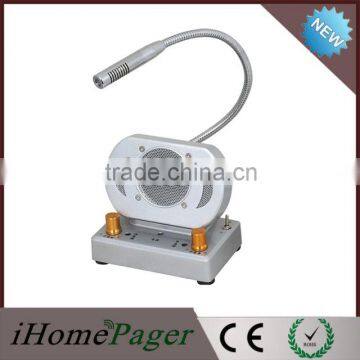

1. Streamlined appearance host, unique all-metal design, standard painted circular extension, air

plugs,Compact, good looks, inside and outside is only one connection, simple installation.

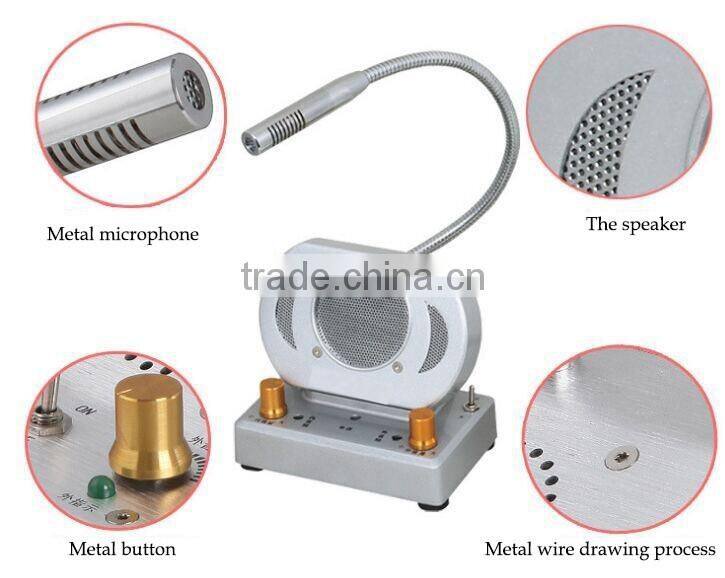

2. The host is aluminum panels, comes with long microphone, extension equipped with a microphone,

no external microphone, automatic handsfree direct two-way intercom.

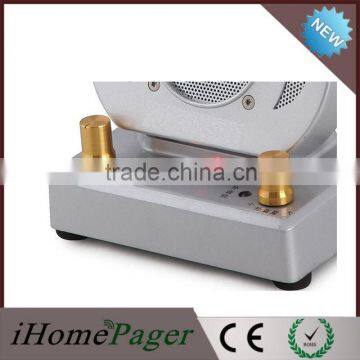

3. High-quality speaker, playback vivid, clear, the volume of inside and outside  can be adjusted individually and indicator tips.

4. microcomputer processing circuit, mute function, unique channel interlock circuit, solve the echo, howling problem.

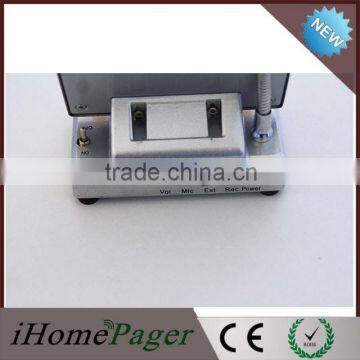

5. the host has recording jack, internal and external dual audio signal output (with the bank teller system recording).

6. can be used to any window difficult to talk . Apply to banks, securities windows, bus station, ticket

office,  factories intercom and so on.

Product Installation

1. The host installation in the workplace, the extension is installed outside the workplace (with double-sided adhesive mounting), connect the extension's plug into the host's  "extension" jack.

2. Insert the DC 12V adapter into the 220V mains supply , insert 12V DC plug into the host of "Power" jack.

3. Press the Power "switch" of the host, the red power indicator light, means power supply is working properly. speak within 50cm of the host, sound inside spread out from the outside extension; the customer's voice outside spread out from inside hosts,  indicating two-way intercom working properly.

4. The "microphone" jack of the host can connect an external microphone, direct access to external microphone and extension achievetwo-way intercom.

5. when needed to record internal and external voice at the workplace. It can be connected to  the "record" hole of the host output sound signal.

6. the machine has been set dual-channel, maximum volume  "6" for the best results, you can turn down a channel according to the actual needs.
