Metal Pressure Spring Coil Machine for Keyboard

FOB Price

US$ 14,000 - 18,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Taiwan, China		Brand Name	CHIEN YU
Model Number	CNC-8		After-sales Service Provided	Engineers available to service machinery overseas

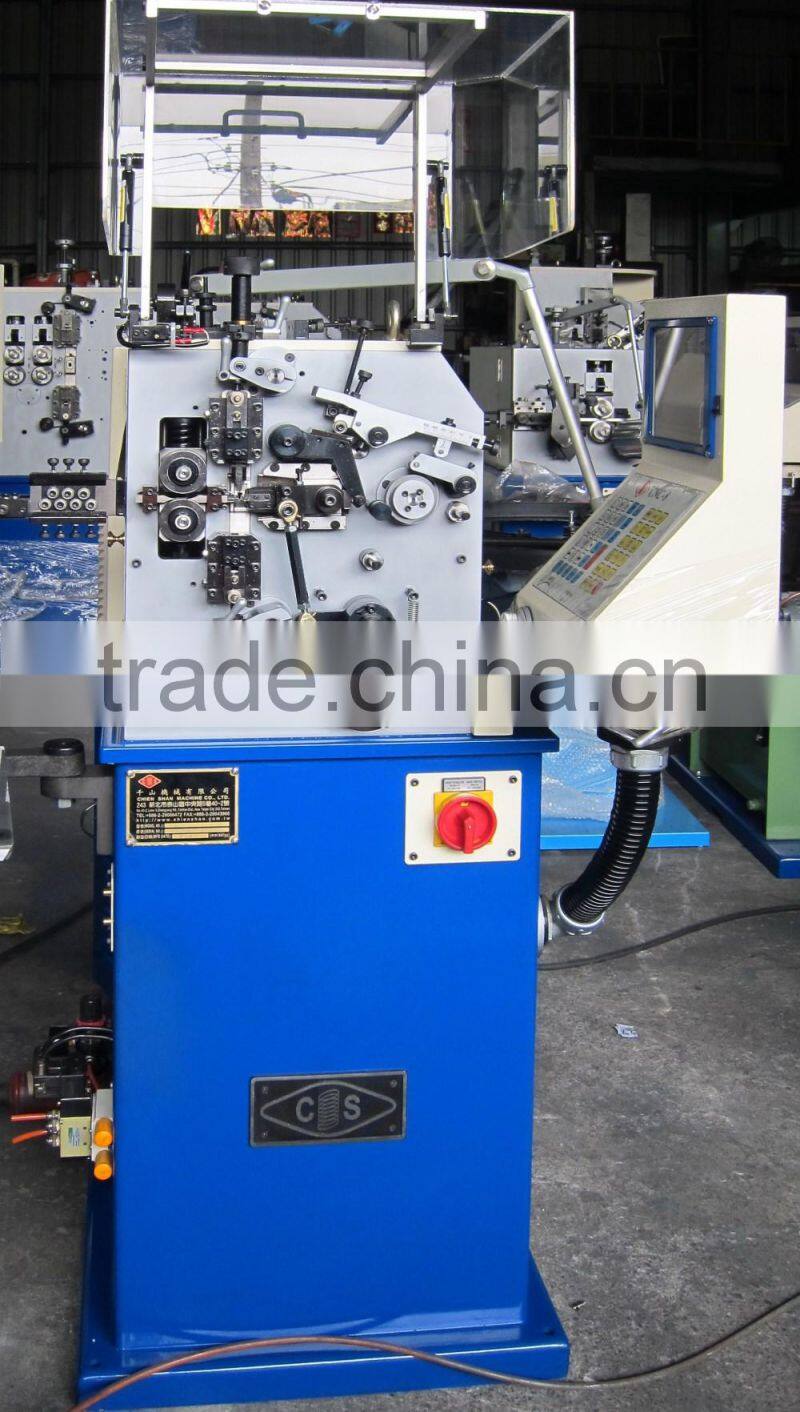

Metal pressure spring Coil Machine for Keyboard

Product Description

Model	Spring Coiling Machine
Wire Diameter	0.13 ~ 0.8 mm
Max. O.D.	20 mm
Max. Production Speed	600 pcs/min
Feed Length	Unlimited
Feed Speed	150 m/min
Feed (Y) Axis (kw)	Y Axis 750W
Cam (X) Axis (kw)	X Axis 750W
Monitor Display	Color / Chinese / English
Max. Value	X : 359.99° Y : 99999.99 mm
Min. Value	X : 0.01° Y : 0.01 mm
Memory	999 Programs Max. 250 Lines for each program
Machine Dimensions	88 x 88 x 180 cm
Wooden Case Dimensions	149 x 112 x 170 cm
Machine Weights	360 Kgs
Gross Weights	570 Kgs
Power	220V 3P 50/60Hz

Wire Diameter suitable for 0.13 ~ 0.8 mm.
Max O.D. up to 20 mm.
2-axis control, for wire feed and pitch mechanism.
High precision equipped with CNC controlled servo-motion system
High production speed Max. up to 600 pcs/min..
Simplified setup and program with English/Chinese platform.
Capable of various kind of springs such as compression springs, oil seal springs, taper springs, battery springs and so on.

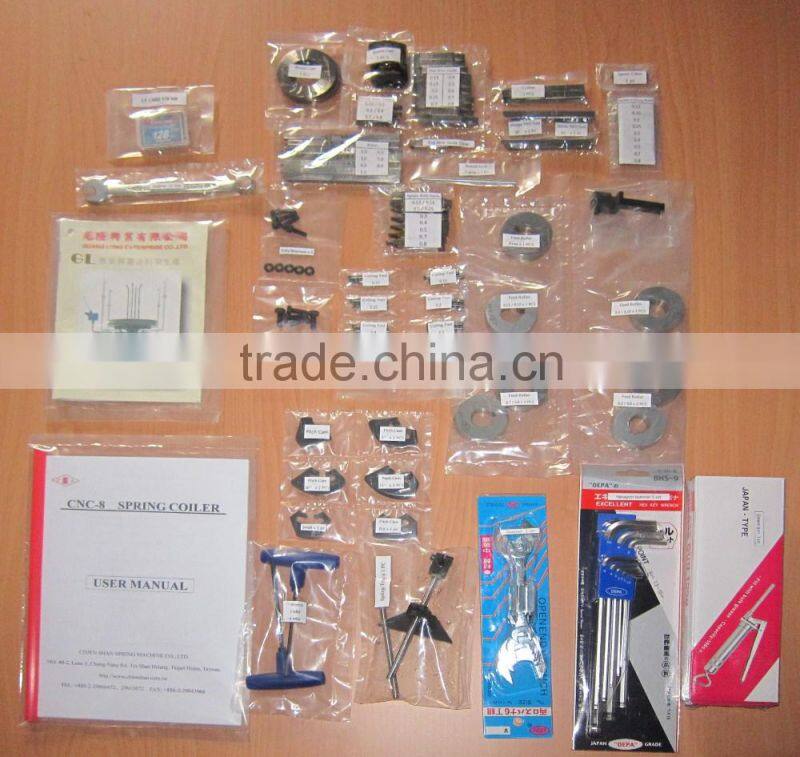

One Set Tools + User Manual

Production Process

Order Process

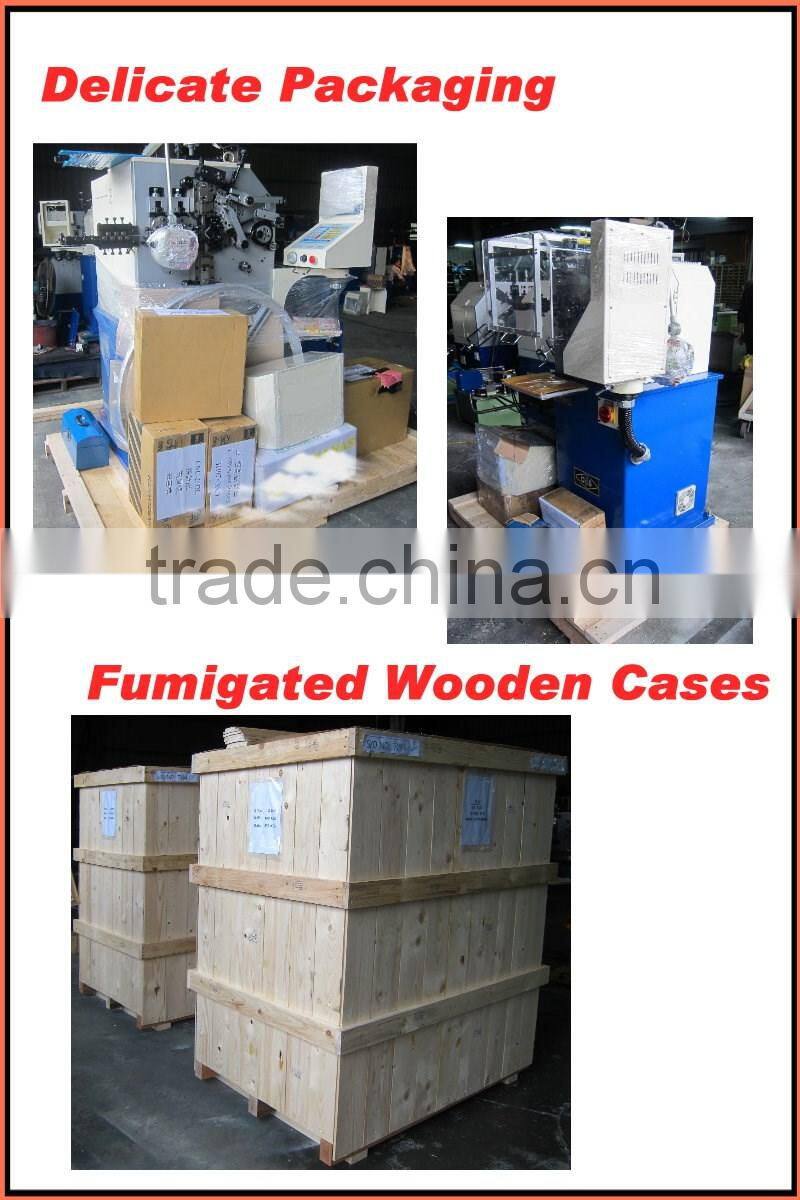

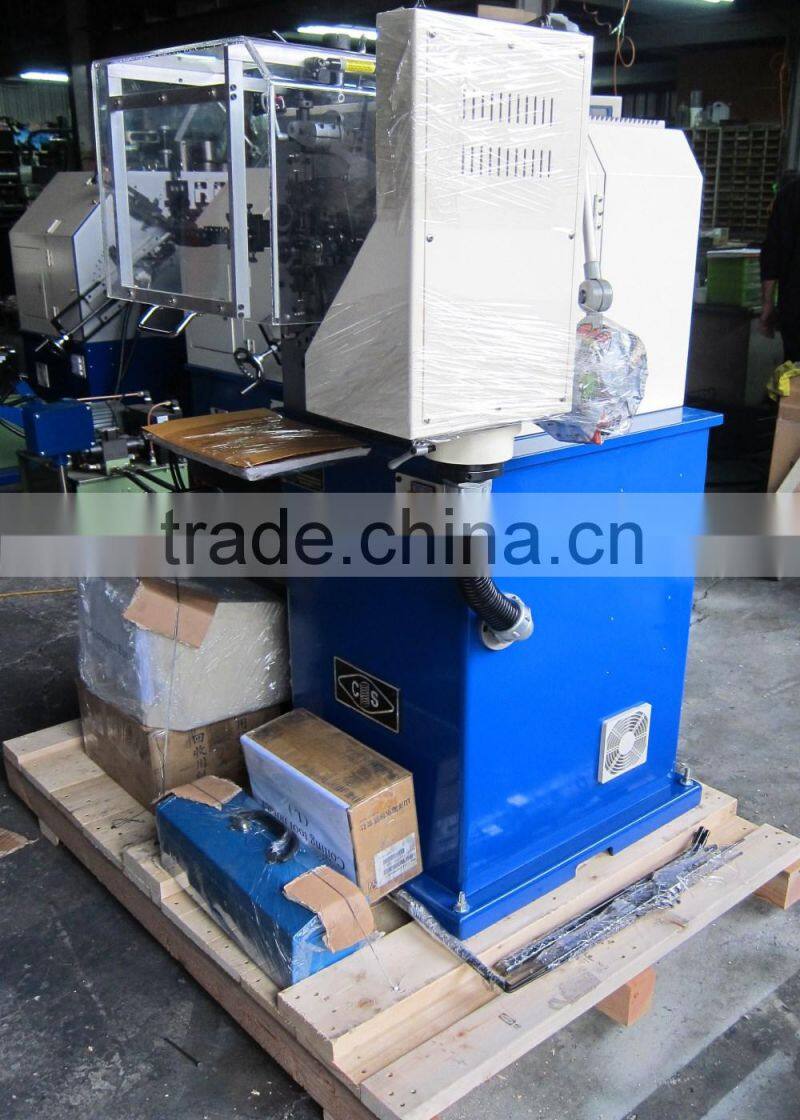

Packaging & Shipping
