Home > Products > high pressure air compressor > Oil Free 10bar Compressor

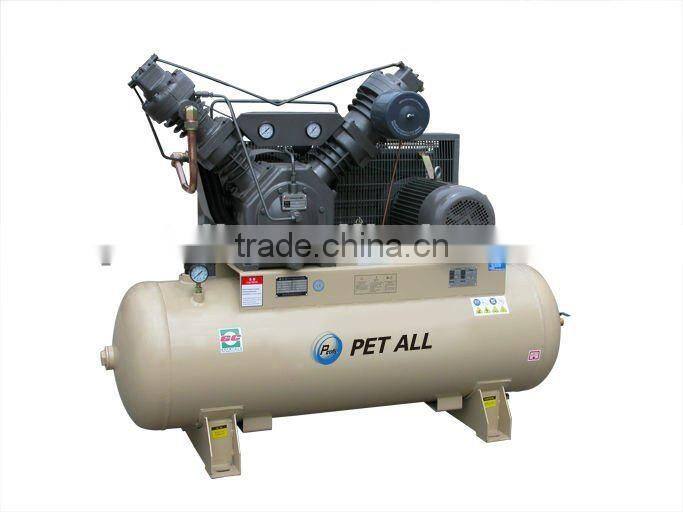

Oil Free 10bar Compressor
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Type | Piston | Configuration | Portable | |
| Power Source | AC Power | Lubrication Style | Oil-less | |
| Mute | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | PETALL | Model Number | VW-0.5/9 |
Product Description
Specifications
oil free 10bar air compressor1.FAD:0.5m3/min
2. pressure:10bar
3.Motor:4KW
4.Cooling:air
oil free 10 bar compressor
- The movement parts uses the lubricating oil splash lubrication system, guarantees normal work of the spare parts under the low temperature, and lengthens the service life.
- The air part of the compressor uses the thermo stable anti-attrition material, guarantees the compressed air part is normally work in the oil-free lubrication situation.
- With the unique body pressure in this series product can guarantee the lubricant of the movement part isolates completely with the part of compressed air enables the compression air to get truly Non-Lube.
- Automatic unload system to ensure the machine starts safety under unload circs, this way can extend the using life of air compressor and protect the mainframe and motor.
Model | Capacity M3/min | Working pressure Mpa | Motor KW | Speed rpm | Dimension mm | Weight KG |
ZW-0.11/7 | 0.11 | 0.7 | 1.1 | 560 | 1080*435*1025 | 145 |
ZW-0.15/7 | 0.15 | 0.7 | 1.5 | 750 | 1080*435*1025 | 150 |
VW-0.3/7 | 0.3 | 0.7 | 3 | 759 | 1340*630*1050 | 420 |
VW-0.5/9 | 0.5 | 0.9 | 4 | 570 | 1700*630*1400 | 420 |
VW-0.65/9 | 0.65 | 0.9 | 5.5 | 680 | 1700*630*1400 | 420 |
VW-0.8/9 | 0.7 | 3.0 | 7.5 | 680 | 1700*630*1400 | 430 |
WW-1.05/9 | 1.05 | 0.9 | 9 | 630 | 1800*860*1400 | 605 |
WW-1.25/9 | 1.25 | 0.9 | 11 | 700 | 1800*860*1400 | 625 |
WW-1.45/9 | 1.45 | 0.9 | 15 | 820 | 1800*860*1400 | 625 |
WW-1.65/9 | 1.65 | 0.9 | 15 | 900 | 1800*860*1400 | 635 |
2-VW-1.0/9 | 1.0 | 0.9 | 2*4 | 570 | 2000*1500*1530 | 840 |
2-VW-1.3/9 | 1.3 | 0.9 | 2*5.5 | 790 | 2000*1500*1530 | 850 |
2-VW-1.6/9 | 1.6 | 0.9 | 2*7.5 | 910 | 2000*1500*1530 | 860 |
2-WW-2.0/9 | 2.0 | 0.9 | 2*9 | 630 | 2050*1760*1700 | 1140 |
2-WW-2.5/9 | 2.5 | 0.9 | 2*11 | 700 | 2050*1760*1700 | 1150 |
2-WW-2.9/9 | 2.9 | 0.9 | 2*15 | 820 | 2050*1760*1700 | 1250 |
2-WW-3.3/9 | 3.3 | 0.9 | 2*15 | 960 | 2050*1760*1700 | 1225 |
4-WW-6.4/9 | 6.4 | 0.9 | 4*15 | 960 | 2050*1760*1700 | 2200 |
