Home > Products > high pressure air compressor > 20 bar high pressure air compressor
20 bar high pressure air compressor
- 5000 Set / Sets per Month
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Type | Piston | Configuration | Stationary | |
| Power Source | AC Power | Lubrication Style | Lubricated | |
| Mute | No | Place of Origin | Jiangsu, China | |
| Brand Name | PETALL | Model Number | PET-1.2/20SB |
Product Description
Specifications
20 bar high pressure compressor1) Model:WH-1.2/20SB
2) FAD:1.2m3/min
3) Pressure:20bars
4)Cooling method: air

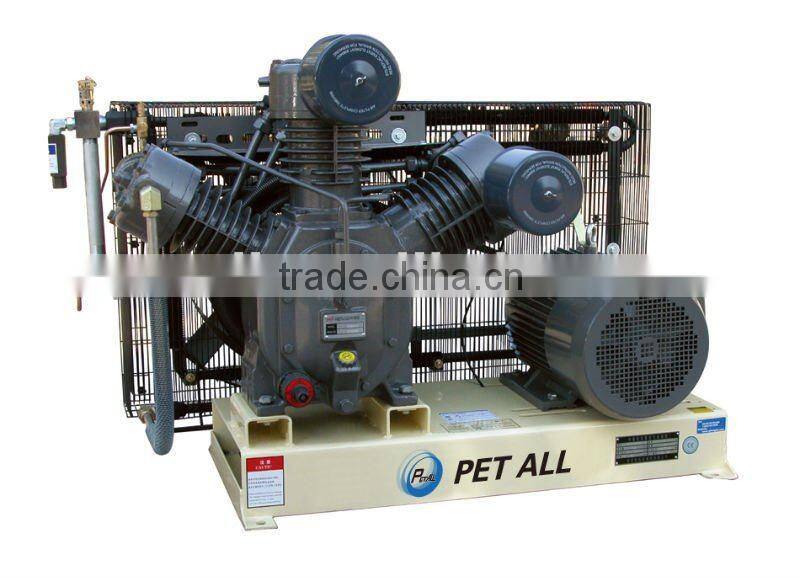

20 bar high pressure air compressor
- high pressure air compressor for PET blow machine
The compressors under this series are widely used PET bottle blowing. - The compressor delivers outstanding quality under all weather conditions
- An automatic unload system to ensure that the system starts safely without residual pressure. This feature protect s both frame and motor and so extends the working life of all components.
- This equipment does not require a foundation saving plant installation costs.
Specification for high pressure air compressor
Model | Capacity M3/min | Working pressure Mpa | Motor KW | Speed rpm | Dimension mm | Weight KG |
VH-0.7/30-SB | 0.7 | 3.0 | 7.5 | 680 | 1240*630*780 | 310 |
WH-1.0/30-SB | 1.0 | 3.0 | 11 | 600 | 1470*780*885 | 430 |
WH-1.2/30-SB | 1.2 | 3.0 | 15 | 760 | 1470*780*885 | 450 |
WH-1.5/30-SB | 1.5 | 3.0 | 18.5 | 680 | 1530*765*1105 | 520 |
VH-0.65/35 | 0.65 | 3.5 | 9 | 800 | 1800*630*1400 | 420 |
VH-0.7/30 | 0.7 | 3.0 | 7.5 | 680 | 1800*630*1400 | 410 |
VH-1.0/30 | 1.0 | 3.0 | 11 | 600 | 2005*795*1260 | 550 |
WH-1.1/35 | 1.1 | 3.5 | 11 | 605 | 2005*795*1260 | 550 |
WH-1.2/30 | 1.2 | 3.0 | 15 | 760 | 2005*795*1260 | 550 |
WH-1.3/35 | 1.3 | 3.5 | 18.5 | 680 | 1140*735*1450 | 520 |
WH-1.5/30 | 1.5 | 3.0 | 18.5 | 680 | 1140*735*1450 | 520 |
2-WH-2.0/30 | 2.0 | 3.0 | 2*11 | 600 | 1880*1180*1440 | 1050 |
2-WH-2.2/35 | 2.2 | 3.5 | 2*15 | 605 | 1880*1180*1440 | 1080 |
2-WH-2.4/30 | 2.4 | 3.0 | 2*15 | 760 | 2050*1570*980 | 1080 |
2-WH-2.6/35 | 2.6 | 3.5 | 2*18.5 | 700 | 1880*1180*1440 | 1150 |
2-WH-3.0/30 | 3.0 | 3.0 | 2*18.5 | 760 | 1880*1180*1440 | 1150 |
3-WH-3.6/30 | 3.6 | 3.0 | 3*15 | 700 | 2350*1570*1880 | 1580 |
4-WH-5.0/3.5 | 5.0 | 3.5 | 4*18.5 | 680 | 2520*1920*1540 | 2400 |
4-WH-6.0/30 | 6.0 | 3.0 | 4*18.5 | 790 | 2520*1920*1540 | 2400 |
