Booster Air Compressor
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Type | Piston | Configuration | Stationary | |
| Power Source | AC Power | Lubrication Style | Lubricated | |
| Mute | No | Place of Origin | Jiangsu, China | |
| Brand Name | PETALL | Model Number | BC330 | |
| Voltage | 220V/380V/440V | Certification | CE and ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

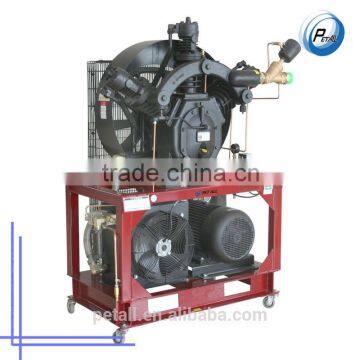

booster air comressor
Booster Compressor are generated for some special applications such as moulding,printing,and leak testing.
Booster compressors are designed to provide high pressure compressed air,which
also have a enlarged displacement capacity.
Booster compressor offer an economical compressing air system for high pressure
The high pressure screw compressor system.
To meet the requirements of PET bottle blowing industry, the high pressure screw compressor system will compress air again from the screw compressor.
-Low-noise, stable air supply.
-System integrates compression, storage , and filtering of blown air with particle count less than 0.001 ppm.
-Steel frame housing contains all components and does not require a foundation.
-The system is cooled with air not water. Saving cooling and maintenance costs.
Booster compressor
Model | Suction Capacity M3/min | Free air delivery M3/min | Motor power HP/KW | Speed rpm | Dimension mm | Weight kg | |
Single stage, Max. pressure 4.0Mpa | |||||||
Suction pressure 0.9-1.0Mpa | |||||||
BC260-10 | 2.55 | 2.0 | 20/15 | 950 | 1310*745*790 | 430 | |
BC330-10 | 3.25 | 2.5 | 20/15 | 800 | 1310*745*790 | 450 | |
BC430-10 | 4.2 | 3.2 | 25/18.5 | 1050 | 1140*800*1540 | 480 | |
BC560-10 | 5.5 | 4.2 | 30/22 | 900 | 1140*800*1540 | 500 | |
BC650-10 | 6.4 | 5.0 | 35/25 | 1050 | 1140*800*1540 | 530 | |
