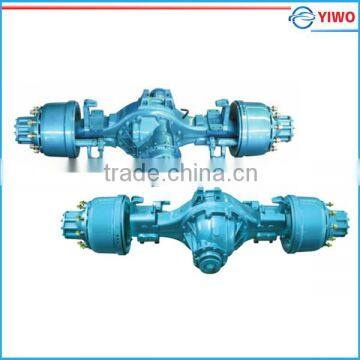

13 ton Europe high transmission and lighter weight double rear driving axle
- Qingdao
- Credit Card
You May Like
-
13 ton Europe heavy duty truck rear driving axle
-
13 ton/16 ton 6x4 truck or trailer truck Europe double reduction hub reduction truck rear driving axle
-
16 ton 6x4 tipper and dumper and heavy duty truck Europe double reduction hub reduction truck rear driving axle
-
13 ton heavy duty truck hub reduction axle assembly
-
heavy duty engineering vehicle 26 ton Suspension assembly
-
heavy duty engineering vehicle 26 ton Suspension axle assembly
Product Details
| Parts | Trailer Axles | OEM No. | double driving axle | |
| Max Payload | 13 ton | Size | 1828-1867 mm | |
| Place of Origin | Shandong, China | Brand Name | YIWO | |
| Model Number | double driving axle |
Product Description
Specifications
1.high quality double driving axle2.Established 1986 year
3.Professional technical team
4.Advanced Eauipments
13 ton europe double driving axle
Our main products are all kinds of truck axle, trailer axle,tractor axle and axle parts.
Advantages:
- The 13 ton Europe double driving axle is customizalbe
- Established on 1986 year
- Professional technical team
- Advanced equipments
| QL400 Single reduction driving axle | ||
| Main technical parameters | ||
| Specifications | Middle axle parameters | Rear axle parameters |
| Payload (KG) | 13000 | 13000 |
| Maximum output torque (N.m) | 40000 | 40000 |
| Self-weight (KG) | 860 | 780 |
| Track (mm) | 1820-1867 | 1820-1867 |
| Spring pin distance (mm) | 966-1040 | 966-1040 |
| Selected ratio | 3.25;3.545;3.909;4.11;4.444;4.875;5.286;5.833;6.33 | 3.25;3.545;3.909;4.11;4.444;4.875;5.286;5.833;6.33 |
| Diameter of hub bolt distributed cicular (mm) | Φ335/Φ285.75 | Φ335/Φ285.75 |
| Brake specification-diameter(mm)*width(mm) | Φ400*200/Φ410*220 | Φ400*200/Φ410*220 |
| Suitable rim | 8.00-20/7.5-20 | 8.00-20/7.5-20 |
| Suitable tire | 11.00-20/10.00-20 | 11.00-20/10.00-20 |
| Minimum clearance to ground (mm) | 252(11.00-20) | 252(11.00-20) |
| QL400 single reduction driving axle is a self-developed light plarform product based on Europe latest product ,it has the advantages of compact structure ,much higher transmission efficieccy and lighter weight ,also it can apply to highway transportation vehicles. | ||
3.5ton/4.5ton/5.5ton/6.5ton/ 7.5ton dis braked front axle assembly |
9 Ton front drum braked axle assembly
|
13 t dingle reduction driving axle for high power heavy duty truck
|
16t Single reduction driving axle ; China largest torque output: 60000 |
13 ton Single reduction tandem driving axle; Press welding housing and cast steel is optional
|
13ton or 16ton double reduction tandem driving axle 13 ton axle is press welding housing;16 ton is cast steel housing |
The bus axle has small noise and smooth brake , be used on 9-11m long bus |
32 ton suspension for heavy duty truck, engineering heavy truck
|
26 ton rear suspension assy for heavy duty engineering vehicle |
a
For more truck axle , please visit : http://ywvehicle.en.china.cn/productgrouplist-222106055/Truck_Axle.html
Warranty
Shanghai YIWO will provide our clients a Claim Documents before cooperate.During the warranty period,
in case of material or workmanship has occurred with spare sparts in normal operation, the defective part
will be repaired or replaced free of charge, and the parts will be delivered with next batch goods.
Spare Parts
Shanghai YIWO will provide our clients a documents on axle parts before produce. And provide a
part price list for purchase.
Installation and Maintenance
Shanghai YIWO will provide Clients the instruction manual on installation and Maintenance.
If necessary, we will send technicist to site guidance.
Technical Service
We have strong after-sale technical service team to help you solve all problem during you use our products.
