Home > Products > Trailer Axle > 13 ton single reduction middle and heavy duty truck tandem drive axle for highway vehicle and engineering vehicle
13 ton single reduction middle and heavy duty truck tandem drive axle for highway vehicle and engineering vehicle
- Qingdao
- Credit Card
You May Like
-
13 ton Europe tandem driving axles for highway vehicle and engineering vehicle
-
13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks
-
16 ton Europe China largest output torque single reduction axle
-
13 ton Europe high transmission and lighter weight double rear driving axle
-
13 ton Europe heavy duty truck rear driving axle
-
13 ton/16 ton 6x4 truck or trailer truck Europe double reduction hub reduction truck rear driving axle
Product Details
| Parts | Trailer Axles | OEM No. | tandem axle | |
| Max Payload | 13 ton | Size | 1820-1867mm | |
| Place of Origin | Shandong, China | Brand Name | YIWO | |
| Model Number | tandem axle |
Product Description
Specifications
1.The 13ton tandem axle is customizalbe2. Press-Welding axle for highway
3.Established 1986
4.Cast steel axle for engineerin
13 ton middle and heavy duty truck tandem axle
Our main products are all kinds of truck axle, trailer axle,tractor axle and axle parts.
Advantages:
- The 13 ton middle and heavy duty truck tandem axle is customizalbe
- Established on 1986 year
- Professional technical team
- Advanced equipments

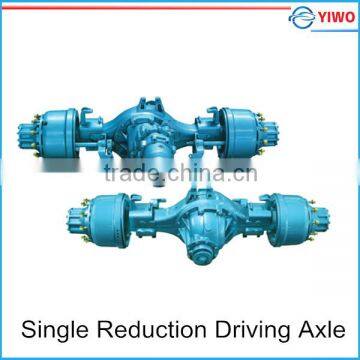

| 457 Single reduction driving axle | ||
| Main technical parameters | ||
| Specifications | Middle axle parameters | Reax axle parameters |
| Payload (KG) | 13000 | 13000 |
| Maximum output torque (N.m) | 40000 | 40000 |
| Self-weight (KG) | 920 | 800 |
| Track (mm) | 1820-1867 | 1820-1867 |
| Spring pin distance (mm) | 966-1040 | 966-1040 |
| Selected ratio | 3.25;3.545;3.909;4.11;4.444;4.875;5.286;5.833;6.33 | 3.25;3.545;3.909;4.11;4.444;4.875;5.286;5.833;6.33 |
| Diameter of hub bolt distributed cicular (mm) | Φ335/Φ285.75 | Φ285.75/Φ335 |
| Brake specification-diameter(mm)*width(mm) | Φ400*200/Φ410*220 | Φ400*200/Φ410*220 |
| Suitable rim | 8.00-20/7.5-20 | 8.00-20/7.5-20 |
| Suitable tire | 11.00-20/10.00-20 | 11.00-20/10.00-20 |
| Minimum clearance to ground (mm) | 252(11.00-20) | 252(11.00-20) |
| 457 single reduction driving axle applies to middle and heavy duty truck with optional of widen brake.The highway vehicles can use press-welding housing to achieve a good performance.The engineering vehicles can use cast-steel housing to achieve a good performance. | ||
3.5ton/4.5ton/5.5ton/6.5ton/ 7.5ton dis braked front axle assembly |
9 Ton front drum braked axle assembly
|
13 t dingle reduction driving axle for high power heavy duty truck
|
16t Single reduction driving axle ; China largest torque output: 60000 |
13 ton Single reduction tandem driving axle; Press welding housing and cast steel is optional
|
13ton or 16ton double reduction tandem driving axle 13 ton axle is press welding housing;16 ton is cast steel housing |
The bus axle has small noise and smooth brake , be used on 9-11m long bus |
32 ton suspension for heavy duty truck, engineering heavy truck
|
26 ton rear suspension assy for heavy duty engineering vehicle |
a
For more truck axle , please visit : http://ywvehicle.en.china.cn/productgrouplist-222106055/Truck_Axle.html
Warranty
Shanghai YIWO will provide our clients a Claim Documents before cooperate.During the warranty period,
in case of material or workmanship has occurred with spare sparts in normal operation, the defective part
will be repaired or replaced free of charge, and the parts will be delivered with next batch goods.
Spare Parts
Shanghai YIWO will provide our clients a documents on axle parts before produce. And provide a
part price list for purchase.
Installation and Maintenance
Shanghai YIWO will provide Clients the instruction manual on installation and Maintenance.
If necessary, we will send technicist to site guidance.
Technical Service
We have strong after-sale technical service team to help you solve all problem during you use our products.
