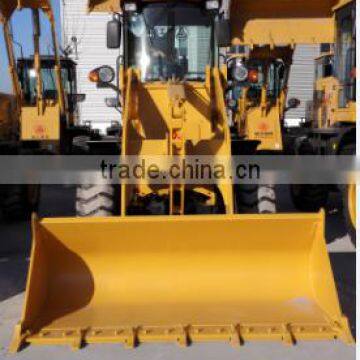

2016 Hot Sale Small Wheel Loader T936L 1 Ton 2 Ton
US$ 5,000 - 9,000
/ Unit
1 Unit(Min. Order)
- Qingdao Port
- T/T
You May Like
-
2T Small Wheel Loader for Sale 920
-
Articulated Small Mini Wheel Loader With Pallet Fork , Quick Hitch 1.6T ZL16
-
ZOT 2016 New Product! China Mini Wheel Loader, Small Wheel Loader T926L With Yunnei Engine
-
ZOT 2016 New Product! China Mini Wheel Loader, Small Wheel Loader T915L With Quanchai Engine
-
ZOT 2016 New Product! China Mini Wheel Loader, Small Wheel Loader T936L With Yunnei Engine
-
ZOT 2016 New Product! China Mini Wheel Loader, Small Wheel Loader T939L With Yuchai Engine
Product Details
| Condition | New | Brand Name | ZOT | |
| Model Number | T936L | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 5748*2040*2920mm | Rated Load | 1800KG | |
| Certification | iso | Warranty | 12MONTHS | |
| After-sales Service Provided | Overseas service center available |
Product Description
1.8 ton small wheel loader T936L with A/C, Pilot control
Guided by market, bulid brand by quality, develop by innovation.
Company Information
Shandong ZOT Machinery Co.,LTD. is a member of SDLG group , which is specialized in manufacturing wheel loader, backhoe loader, road roller, motor grader and other construction machinery. We devote ourselves to improving quality and building good brand. We need profit as well as long term business relationship.
Choosing ZOT machines is the first step to saving money!
Product Description
| Item | T915L | T926L | T930L | T933L | T936L | T939L |
| Loading Capacity(kg) | 1100kg | 1400 | 1500kg | 1500kg | 1800kg | 1900kg |
| Operating weight(kg) | 3050kg | 4200 | 5000kg | 5000kg | 5600kg | 6000kg |
| Max Tractive Force(Kn) | 27kN | 32 | 42kN | 42kN | 45KN | 60KN |
| Dumping Height(mm) | 3000mm | 3300 | 3400mm | 3400mm | 3500mm | 3500mm |
| Dumping Distance(mm) | 850mm | 1030 | 970mm | 970mm | 900mm | 900mm |
| Grade ability(%) | 35% | 35 | 35% | 35% | 35% | 35% |
| Min Turning Radius(mm) | 4300mm | 4800 | 5200mm | 5200mm | 5500mm | 5500mm |
| Dimensions | ||||||
| Length(mm) | 5300mm | 6005 | 6015mm | 6015mm | 6130mm | 6130mm |
| Width(mm) | 1720mm | 1926 | 2200mm | 2200mm | 2200mm | 2200mm |
| Height(mm) | 2700mm | 2805 | 2970mm | 2970mm | 3010mm | 3010mm |
| wheel base(mm) | 2115mm | 2300 | 2510mm | 2510mm | 2660mm | 2660mm |
| Tread(mm) | 1350mm | 1520 | 1550mm | 1570mm | 1675mm | 1675mm |
| The minimum clearance | 250mm | 270 | 350mm | 350mm | 350mm | 350mm |
| Engine | ||||||
| Manufacturer | Quanchai | Yunnei | Yunnei | Yunnei | Yunnei | Yuchai |
| Model | QC2015 | YN490 | YN33 | YN36GBZ | YN38GBZ | YC4D80-T20 |
| Power(Kw) | 24kW | 37kW | 48kW | 65kW | 76KW | 58KW |
| Transmission | ||||||
| Converter Tyre | Six Axis Transmission | 265gearbox and converter | 265torque converter | 280torque converter | 280gearbox and converter | 280gearbox and converter |
| Low speed(km/h) | 4/7 Km/h | 0~9 | 0~11Km/h | 0~11Km/h | 0~11Km/h | 0~11Km/h |
| High Speed(km/h) | 16/29 Km/h | 0~24 | 0~27Km/h | 0~27Km/h | 0~27Km/h | 0~27Km/h |
| Service Brake | Hydraulic brake | air brake | air brake | air brake | air brake | air brake |
| Axles | Isuzu Strengthen Axles | ZOT | ZOT | ZOT | ZOT | ZOT |
| Battery | 6-QW-60MF | 6-QW-80MF | 6-QW-80MF | 6-QW-80MF | 6-QW-100MF | 6-QW-100MF |
| Cabin | Luxury | Luxury Cabin | Luxury | Luxury | Luxury | Luxury |
| Chair | Luxury | Luxury Chair | Luxury | Luxury | Luxury | Luxury |
| Steering System | ||||||
| Type | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering | Full Hydraulic steering |
| Steering Angle(°) | ±33° | 33° | ±33° | ±33° | ±33° | ±33° |
| Hydraulic system | ||||||
| System Pressure(Mpa) | 16MPa | 16 | 16MPa | 16MPa | 17MPa | 17MPa |
| Total Time(s) | ≤9s | ≤9 | ≤9s | ≤9s | ≤10s | ≤10s |
| Oil Tank | ||||||
| Fuel Tank(L) | 75L | 80 | 90L | 90L | 90L | 90L |
| Hydraulic Oil Tank(L) | 75L | 80 | 90L | 90L | 90L | 90L |
| Tyre | ||||||
| Model | 14/90-16 | 16/70-16 | 16/70-20 | 16/70-20 | 16/70-24 | 16/70-24 |
| Front tyre Pressure(Mpa) | 0.3MPa | 0.3 | 0.33MPa | 0.33MPa | 0.33MPa | 0.33MPa |
| Rear tyre Pressure(Mpa) | 0.28MPa | 0.28 | 0.30MPa | 0.30MPa | 0.30MPa | 0.30MPa |
| Bucket | ||||||
| Capacity(m³) | 0.45m³ | 0.6 | 0.75m³ | 0.75m³ | 0.95m³ | 0.95m³ |
Our Services
Our warranty: because of high quality, we are confident to give our customers 2 years warranty!
Our service: Spare parts being supplied in time; Engineers is available to your place; service center is available in some country.

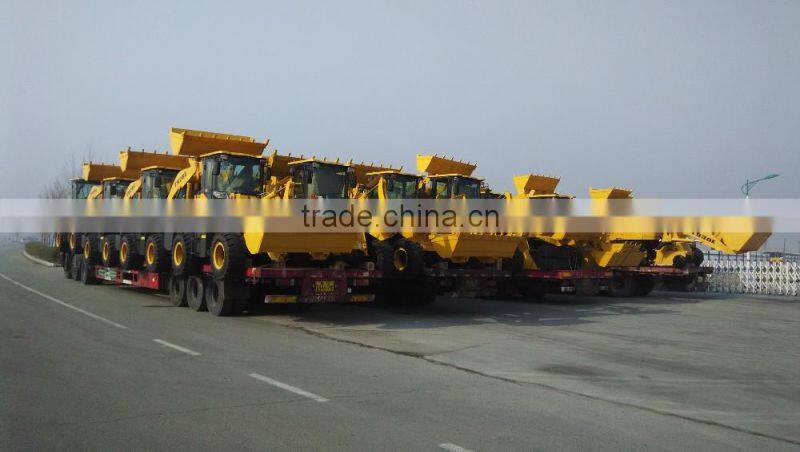

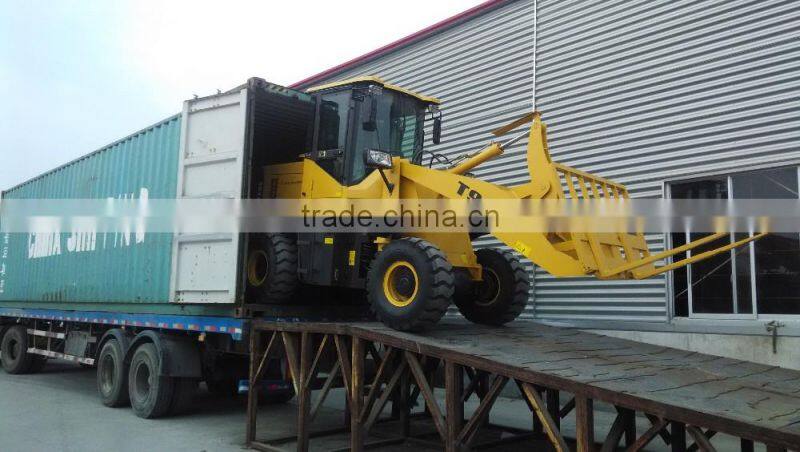

Shipping and packing: Being shipped by container, and naked packing.
Delivery time: within30days after getting deposit
Payment terms: 1. 30%deposit by TT, 70% balance before shipment or after the copy of B/L. 2. 100% Irrevocable L/C at sight.

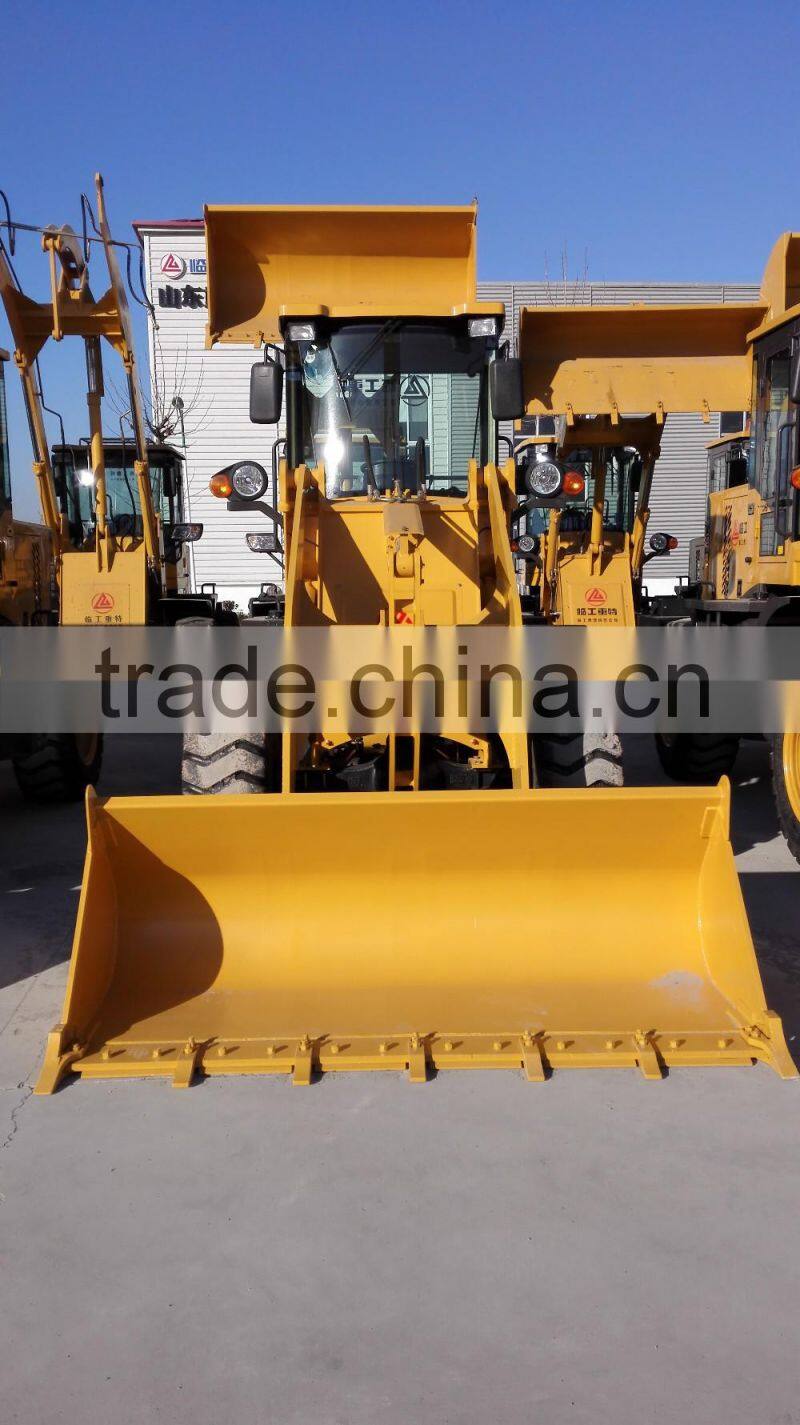

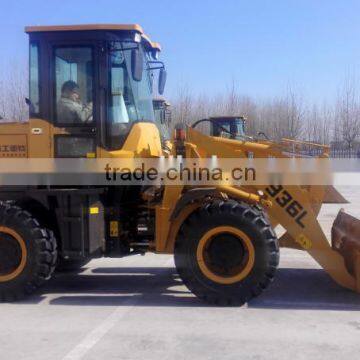

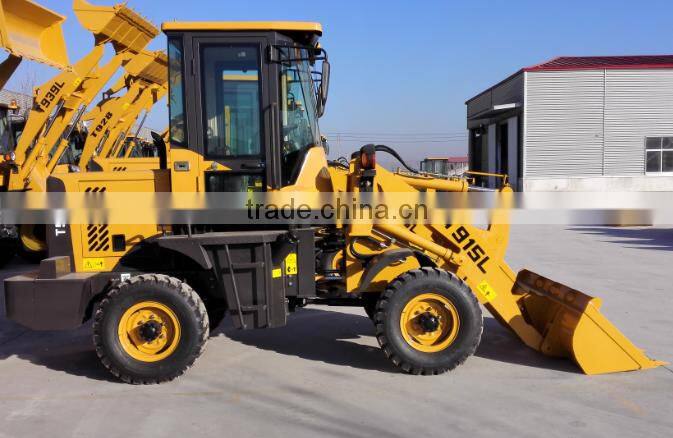

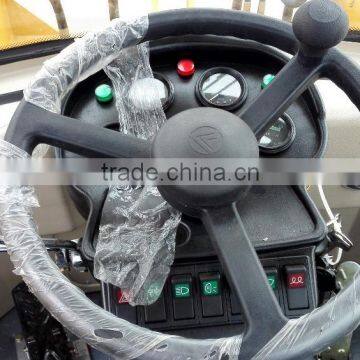

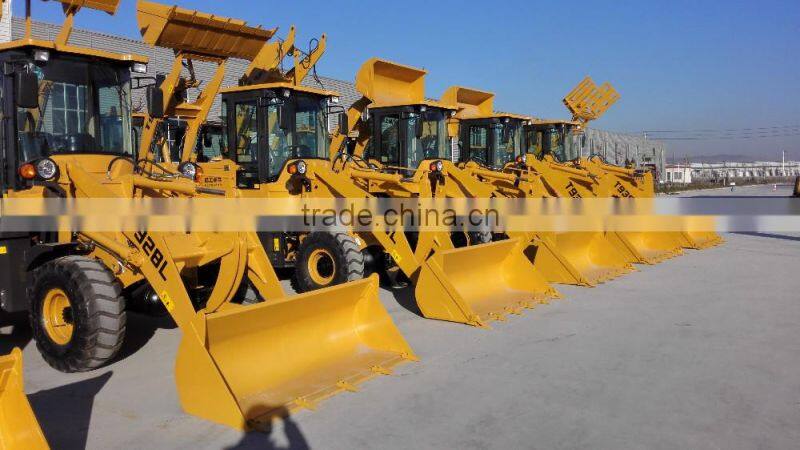

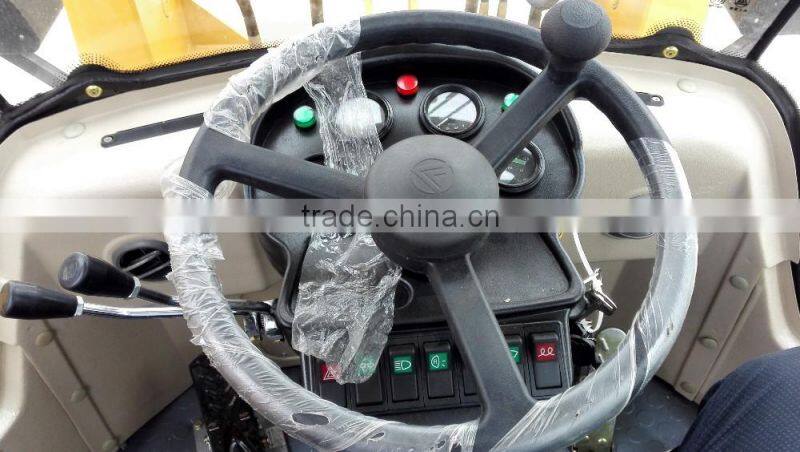

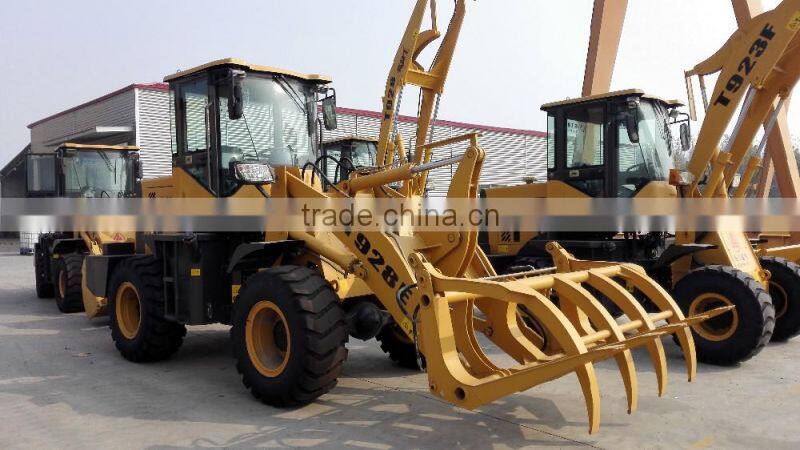

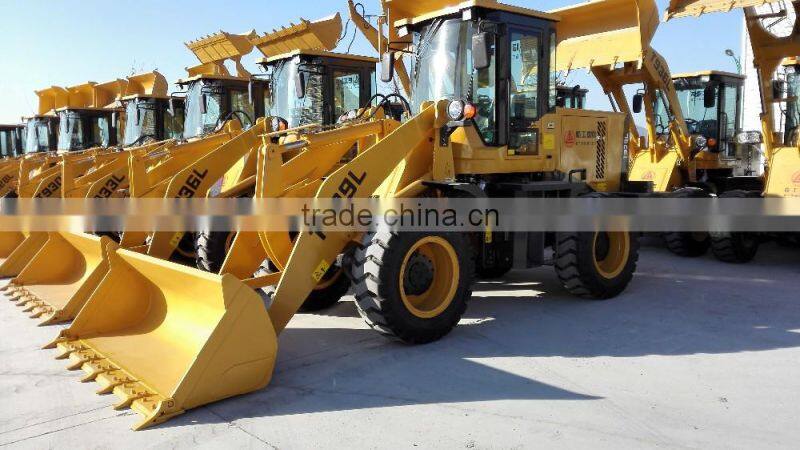

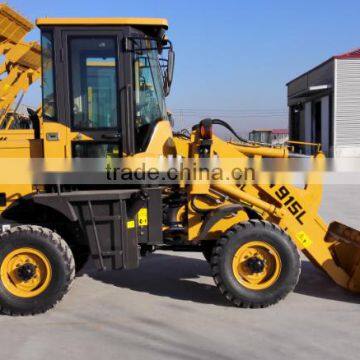

Details Photo:
