Skid Steer Loader JC45 JC60 Mini Skid Steer Loader for Sale

FOB Price

US$ 16000.00 - 16000.00 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	ZOT
Model Number	JC45	Place of Origin	Shandong, China
Type	Skid Steer Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	3380x1740x2050mm	Rated Load	700kg
Warranty	12 Months	After-sales Service Provided	Engineers available to service machinery overseas

Skid Steer Loader JC45 JC60 mini skid steer loader for sale

Product Description

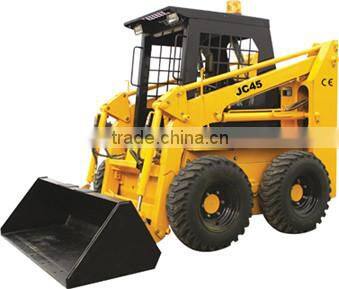

Main features of JC45 Skid steer loader

compact structure, maneuverable movement stuitable for narrow space operation

open cabin with mechanical control system

double accelerograph control

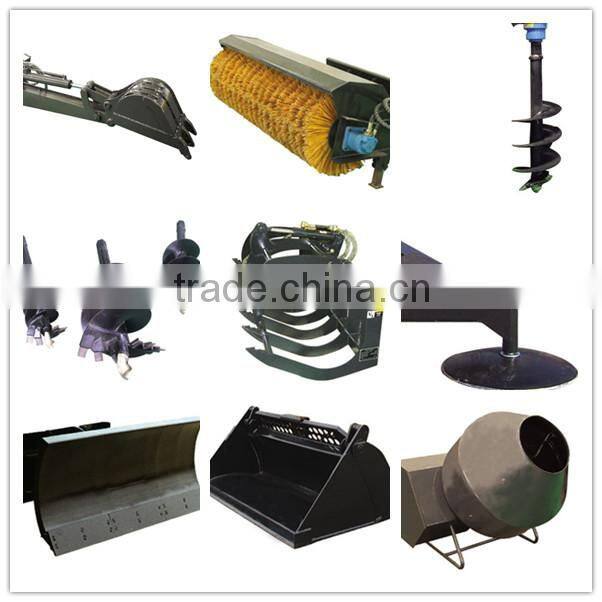

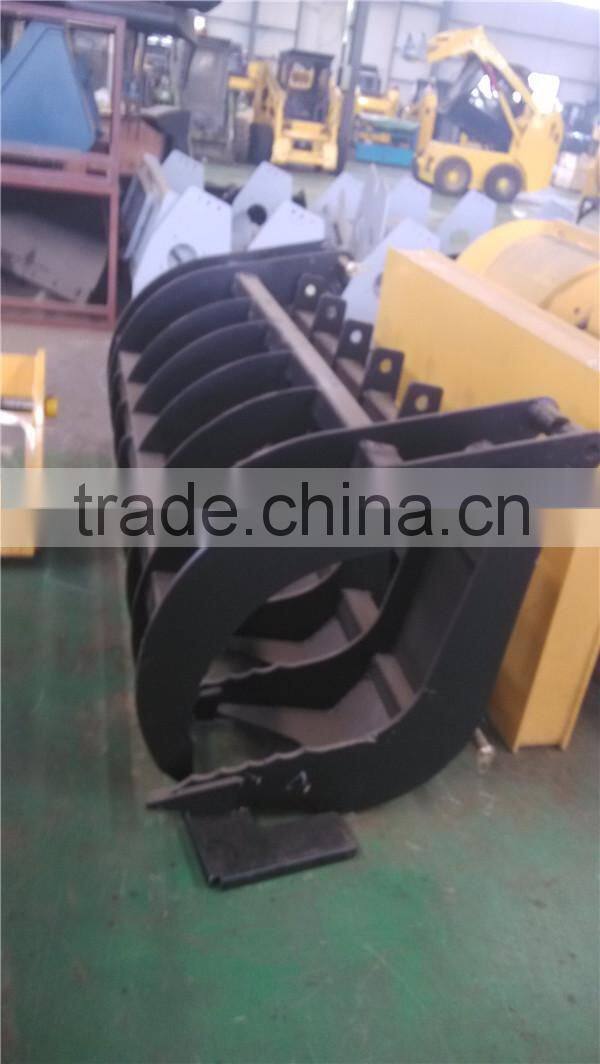

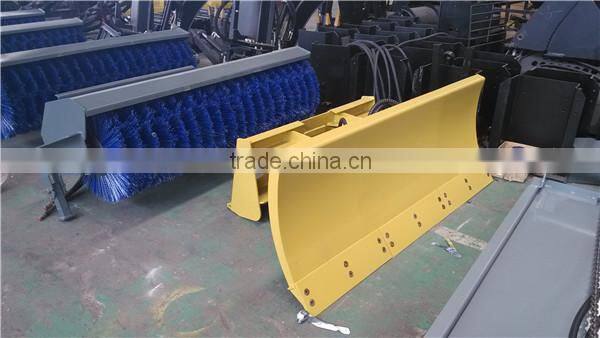

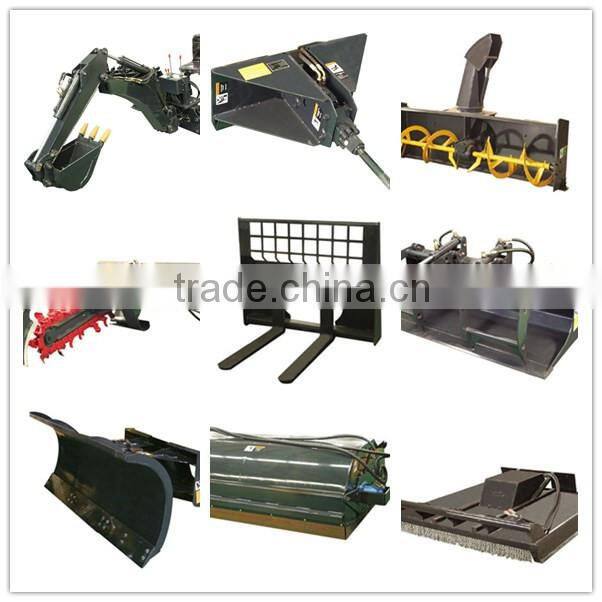

multi-fuction with a wide range of attachments

hydraulic brake

Specifications
Rated Operating Capacity	700
Tipping load(Kg)	1400
Bucket Capacity(m³)	0.36-0.45
Hydraulic Pump Flow(L/min)	62.5
Engine power(HP)	50
Weight(Kg)	2750
Max.Travel Speed (km/h)	12
Grade ability(°)	20
Tire	10-16.5
Fuel/hyd.oil capacity(L)	50/50
Dimensions
A.Height at Maximum Extension	3670mm
B.Hinge Pin Height	2900mm
C.Total Height	2050mm
D.Length with Bucket	3380mm
E.Length without Bucket	2450mm
F.Width with Bucket	1740mm
G.Track Width	1450mm
H.Wheelbase	991mm
J.Ground Clearance	185mm
K.Dumping Angle	40°
L.Dumping Height	2310mm
M.Maximum Reach	710mm

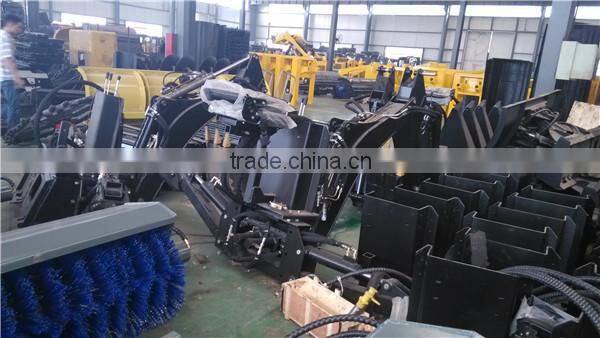

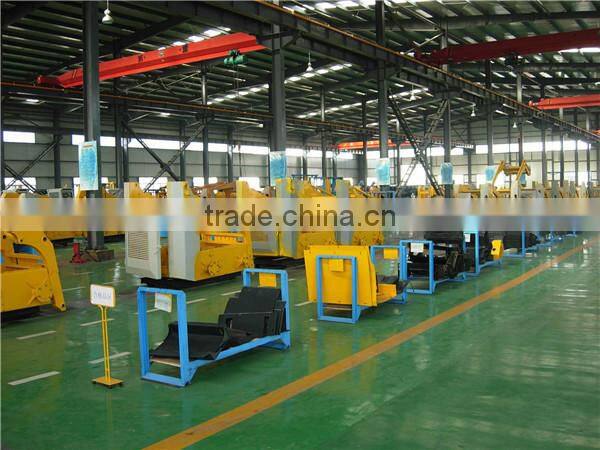

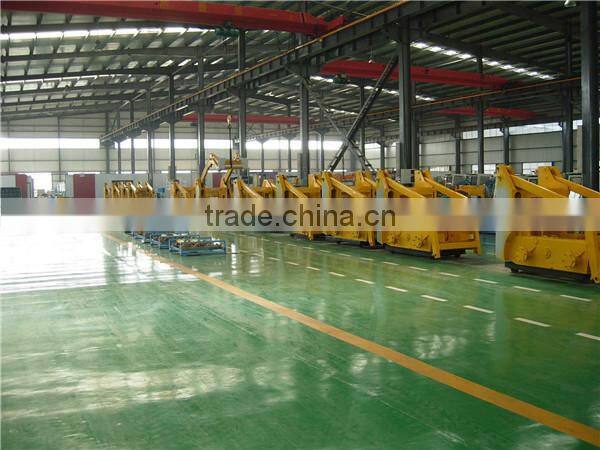

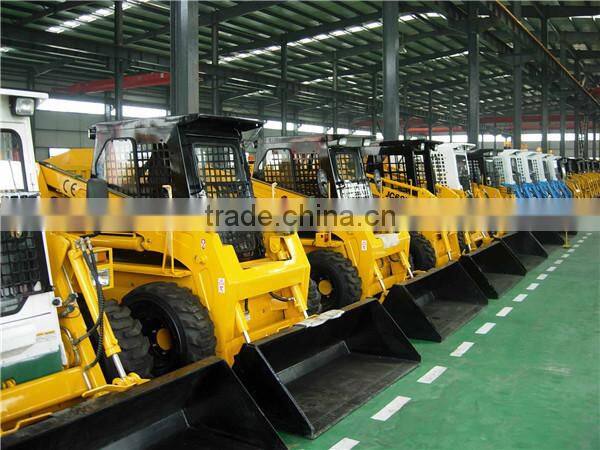

FACTORY VIEW
