Head-Up Car Speed Display with Tpms tire pressure monitoring system

Specifications

1. TD 5010 A/X 04 TPMS package information

• Monitor kit
• sensor kit

2. HUD TPMS technical specification:

Transmitter:

• Pressure range:0-180 PSI
• Accuracy:Pressure ±3 PSI,temperature±2°C
• Frequency:315 MHz*Operating Voltage:DC12~24V
• Operating humidity: 450 mA
• Operating Temperature: -20 C~85 C
• HUD Dimensions: 85mm X 62mm X 18.8mm
• HUD Weight:100g
• Speed Ranges: 0~255Km/H
• Max. Brightness: 5500 nit

3. Product features:

DIY installation

Simply screw the sensors onto the valve stems in the place of valve stem caps.

Light and compact

Extremely lightweight and compact with specially designed electronic sensors.

Accurate tyre pressure sensors

Electronic tyre pressure sensors are accurate to +/- 1 PSI.

Abnormal pressure warming

The LCD monitor will send an immediate warning if any tyre is monitored and exceeds the pressure parameters that you chose to set.

Anti theft sensor mounting design

Each of the tyre pressure sensors is provided with a specially designed locknut. This secures it tightly onto the valva stem and prevents easy removal.

Transmission status display

The sensors will automatically transmit pressure/temperature date to the LCD monitor when it is turned on.

Battery power status display

The LCD monitor will display a low battery warming when either the monitor unit or any of the tyre sensors has low bettery power.

LCD monitor

The LCD monitor displays the 4 tyres pressures.This monitor can be mounted inside the vehicle by using either the suction cup mount or alternatively the self adhesive plate. This monitor can also be powered from the vehicle cigar lighter socket by using the power adapter supplied.

Multinational patents

This product has been patented in the US,EU ,Taiwan, China etc.The patents cover PC board circuit and mechanical design. It is illegal to copy this product in any without authorization.

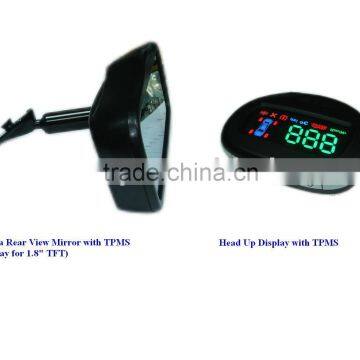

4. Other Series
