Home > Products > TPO Waterproof Membrane > high quality TPO roofing membrane

high quality TPO roofing membrane

FOB Price

US$ 3 - 7 / Square Meter

2000 Square Meters(Min. Order)

Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	hongyuan
Model Number	HPM-T

Product Description

Specifications

TPO roofing membrane
1.width:2.05m
2.length:20m
3.thickness:1.2mm,1.5mm,2mm
4.type: reinforced TPO , homogeneous TPO

TPO Waterproof Membrane

Features

1.It’s easy to install with good system integrity, few accessories.

2. Excellent tensile strength, tearing resistance and penetration resistance performance.

3. No plasticizer. They have been tested as having excellent resistance to thermal aging and ultraviolet, durable and exposed.

4. Hot-air welding. The peel strength of joint is high.

5. Fast welding speed.

6. Environment friendly, 100% recycled, without chlorine.

7. Durable hot welding performance and easy to repair.

			Specification
			H	L	P		G	GL
The resin thickness of Middle fabric, mm≥			—		0.40
Maximum tension,N/cm ≥			—	200	250		—	200
Tension strength,Mpa≥			12				12
Maximum tension elongation,%≥					15
Fracture elongation,%≥			500	250			400	200
Heat treatment size change rate %≤			2.0	1.0	0.5		0.1	0.1
Low temperature bend			-40°C No crack
Water tightness			0.3Mpa,2h, No seepage
Attack resistance			0.5kg·m,No seepage
Static charge resistance			—			20kg ,No seepage
Seam strip strength ,N/mm≥			4.0 or Membranes break			3.0
Right-angle tear strength,N/mm≥			60				60
Trapezoid tear strength N≥			—	300		450		350
Bibulous rate (70°C 168h), %		After soaking≤	4.0
		Air-cure later≥	-0.40
Heat aging (115°C)	Time		672h
	Appearance		No blister,flaw,delamination,coherence,hole
	Tensile strength retention,%≥		90
	Elongation rate of keeping,%≥		90
	Low temperature bend		-40°C, No crack
Chemistry resistance	Appearance		No blister,flaw,delamination,coherence,hole
	Tensile strength retention,%≥		90
	Elongation rate of keeping,%≥		90
	Low-temperature bending		-40°C, No crack
Artificial weather accelerated aging	Time		1500hb
	Appearance		No blister,flaw,delamination,coherence,hole
	Tensile strength retention%≥		90
	Elongation rate of keeping%≥		90
	Low temperature bend		-40°C ,No crack

Applications

Roof construction & steel structure of both industrial and civil engineering.

Underground engineering, such as subways, tunnels, air Raid shelter, etc.

Sewage treatment, dam, reservoir and basement, grain storehouse, etc.

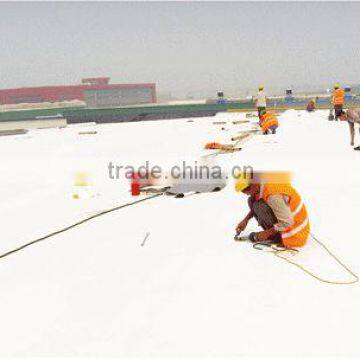

Pictures for your reference

1. Homogeneous TPO Membrane

2. Polyester Reinforced TPO Memberane

3. Fabric backing TPO Membrane
