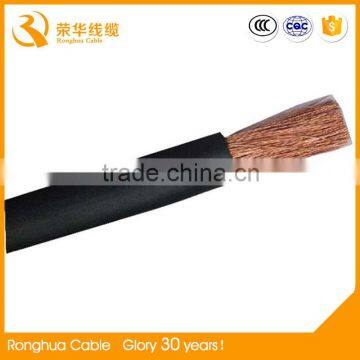

2016 Hot Sale PVC Welding Cable With Best Service

FOB Price

USD $0.5 - $10 / Meter

1000 Meters(Min.Order)

Port Tianjin port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	Ronghua
Model Number	PVC	Insulation Material	Rubber
Type	Low Voltage	Application	Power Station
Conductor Material	Copper	Jacket	Rubber

Product Description

2016 Hot Sale PVC Welding Cable With Best Service

Product Description

2016 Hot Sale PVC Welding Cable With Best Service

H01N2-E/H01N2-D welding cable For the transmission of high
currents from the electric welding device to the welding tool.

Product Type: H01N2-D H01N2-E rubber insulation copper super flexible welding cable

H01N2-D is a harmonized, flexible, rubber jacketed welding cable. This welding cable is designed for the transmission of high currents from electric welding machines to the welding tool on manually or automatically operated line and spot welding machines. Also suitable for assembly lines and conveyor systems in the ship building, automobile industry and tool making industries. H01N2-D cables retain their high flexibility even under the influence of ozone, light, oxygen, protective gases, and oils. The robust jacket and construction aids in the resistance to both hot and cold temperatures as well as to flames. They are suitable for use outdoors in dry or damp conditions.

1. Service conditions

Welding cable is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value

is 400V.

2.Working information

Model

Name

Main applications

Working temperatur

of core ≤℃

Natural Rubber Sheath for Welding Cable

Always used indoor

YHF

Neoprene Rubber Sheath Welding Cable

Always used outdoor

Synthetic elastomer Sheath Welding Cable

3.Products datas

welding cable H01N2-D 60245 IEC 81 (YH) 60245 IEC 82(YHF)

Nom.	Max. Dia.	Nom. Cover	Average O.D. mm		Maximum DC
Area	of wire	Thickness			Resistance at 20°C
2mm	mm	mm			Ω/km
			Min.	Max.	Tinned copper	Untinned copper
10	0.21	2	7.7	9.7	1.95	1.91
16		2	8.8	11	1.24	1.21
25		2	10.1	12.7	0.795	0.78
35		2	11.4	14.2	0.565	0.554
50		2.2	13.2	16.5	0.393	0.386
70		2.4	15.3	19.2	0.277	0.272
95		2.6	17.1	21.4	0.21	0.206
120	0.51	2.8	19.2	24	0.164	0.161
150		3	21.1	26.4	0.132	0.129
185		3.2	23.1	28.9	0.108	0.106

Relative products1

bv house wire cable pvc insulated wire cable xlpe sheath wire cable

Company Information

Some products:

Certifications Required:

FAQ

1.When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

2.How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3.How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.

4.What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
