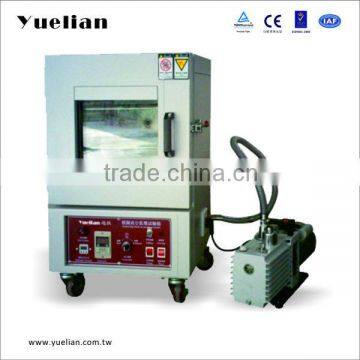

New arrival vacuum high altitude environment high-altitude low pressure vac chamber for medical lab equipment testing TV2-125

Model

TV2-27

TV2-64

TV2-125

TV2-216

Interior dimension

W× D× H (cm)

30 ×30×30

40 ×40×40

50 ×50×50

60 ×60×60

Exterior dimension W× D× H (cm)

60×47 ×80

70× 57 ×90

70×70 ×90

90 ×77 ×110

Capacity

27L

64L

125L

216L

Use and Standard

1. Use: products are tested by simulating high altitude environment, all the test specimens will be tested under 11.6kPa(1.68psi), the subatmospheric pressure atmosphere.

 2. Test purpose: the final test report requires no explosion or fire on the products;

3. Test method: UL 1642 UL2054 UN38.3 etc test standard;

Structure

1. Body of the chamber adopts the high quality of cool-rolled steel sheet, with electrostatic powder coating on the surface. The coating is hard and firm, with strong rust resistance, no corrosion.

2. Interior material: high quality and stainless steel sheet, as thick as 6mm thickness, with round corner modeling which is smooth, fluent, and easy to clean.
3.the chamber door is double tempered glass structure, which can observe the test specimen in the chamber clearly.
4. With a rubber sealing ring between the work chamber and the glass door to ensure the high vacuum box.

Main Technology Parameter

1. Temperature: normal temperature
2. Interior material: SUS 304# stainless steel(thickness:6.0mm)
3. Bottom: universal wheel

4.Exterior material: SECC stainless plate, with fine powder paint treatment(thickness:1.5mm)
5.Observing window: tempered glass explosion-proof membrane affixed.
6. Counter:3 digits display 0.S~999H (switchable among H-hour, M-minute, S-second)

7.Degree of vacuum: 11.6Pa( the indicated value of the vacuum gauge<-0.116Mpa)

8. Power:  AC 220V 50HZ
