Keen Price !!!popular Wood Crusher
- All port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | DINGSHENG | Model Number | 0DS-7 | |
| Voltage | 380V | Power(W) | 45kw | |
| Dimension(L*W*H) | 1550*800*1050mm | Weight | 500kg | |
| Certification | BV,CE,ISO | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction of popular wood crusher
Widely used in paper making, edible fungus, mechanism charcoal, shaving board, sawdust board, high density board, MDF and other industrial production in the preparation section, and a single wood powder (sawdust) production base, cutting raw materials mainly logs, branches.Sawdust crusher is also called sawdust machine, sawdust crusher, sawdust, wood powder is a new type of production (sawdust) before production ideal mechanical equipment, slicing, crushing, can be processed for branches and branches of 1-20 cm in diameter, can also be used for bamboo, straw, corn stalks, sorghum stalk fiber stem shape materials such as chip.
Application of popular wood crusher
Specially used in Orchard garden , Botanical garden, Landscaping department;
1. wood, tree trunk, tree branch, straw, bamboo stick etc;
2. wooden piece, small tree branch, leaf, tree bark, feedstuff and chemical material etc material;
3. Orchard garden , Botanical garden, Landscaping department;( Trimmed branches, trunk, leaf can be crushed as fertilizer .)
4. Machine can installed on the cart or farm vehicle;
5. Engine can be electromotor,diesel engine,gasoline engine,both of them are ok for working;
6. Crushing type can be mobile and fixed-line( two-way for choice).

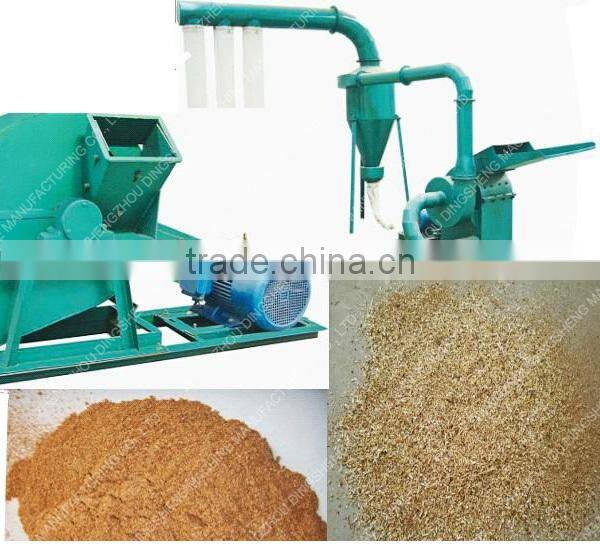

Working principle of popular wood crusher
This equipment is automatic grind wood into sawdust, feed the materials inlet, first through blade, cut into grind room, mill under the impaction of high speed revolved hammer and reaction of blade
cutting, though sieves wind power produced by inner wind leaves sent to outlet or outlay fan send to
outlet. The size of finished material is determined by adjust the length of blade and the diameter size of sieve, so as to satisfy different requirement.
Technical parameters of popular wood crusher
Specification | 0DS-4 | 0DS-5 | 0DS-6 | 0DS-7 | 0DS-8 |
Cutter diameter(mm) | 400 | 500 | 600 | 800 | 1000 |
Blade number(piece) | 4 | 4 | 4 | 6 | 8 |
Feed diameter(mm) | 150×160 | 170×190 | 200×200 | 220×240 | 270×300 |
Rotation speed(r/min) | 2600 | 2600 | 2600 | 2000 | 2000 |
Motor power(kw) | 11 | 15 | 22 | 45 | 75 |
Capacity(kg/h) | 500-800 | 600-1000 | 900-1200 | 2500 | 3000-4000 |

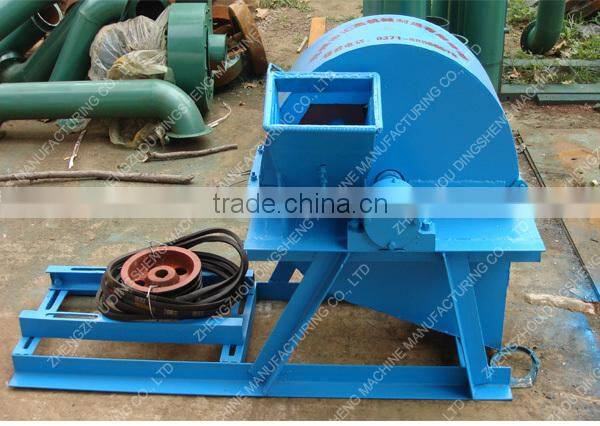

Structure of popular wood crusher
Small wood grinder is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of crusher machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.
Features of popular wood crusher
1. Unique Feeding Design, the feeding inlet is made at the side of the device to make feeding easily.
2.The second grinding designed for grinding chamber, the output can increase 15% even particle size.

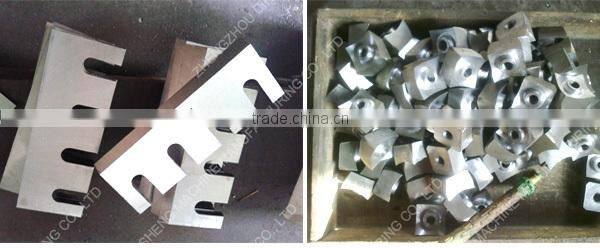

4.The smaller gap between beater and screeners can be used for grinding coarse and fine materials.
6.The motor and rotor are installed in the same heavy-duty base, using coupling direct drive, the rotor are checked by dynamic balance, and can work forward and reverse, the hammers are arranged symmetrically.
7.Two kinds of gap between beaters and screeners through changing position of beater are used for coarse and fine grinding.
After-sales service of popular wood crusher
1.The warranty period of all of our product is 1 year.
2.Any problems you have, contact me freely, our after-sales service team will help you immediately.
3.Warmly welcome you came visit our factory, we can pick you up at the Zhengzhou International
airport at any time.
4.Any problems can be told us, and we will try our best to support you.
