Grain Silo 500t for Sale

   grain silo 500t for sale

For the  grain silo 500t for sale
1. Material : hot-galvanized steel sheets
2. Zinc coating : 275 g /m2
3.Bottom : two types: Hopper bottom and Flat bottom
4. Volume : around 1430 m3
5. Inside the grain silo body : we equip the Level system, Ventilation system,
Temperature control system.Draft fan .
6. Complete line includes : Cleaning , Transport, Silo body, Electric control system, at site.

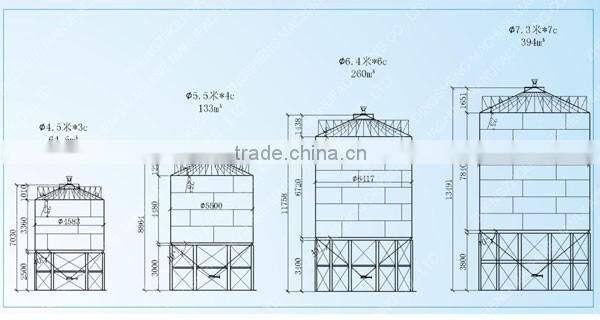

structure and size of our grain silo 500t for sale

Features of  grain silo 500t for sale

Siding plate: pressed corrugated plate,hot galvanizing ,Galvanized amount 275g/m²(2 sides) ,thickness 1.5mm
Upright post(column): Z cross-section, pressed by national standard Q345 steel plate, 15 columns evenly distributed on the circumference. thichbness distribution: 1c-7c2.5MM-4.0mm
double doors on the wall, installed on the siding plate. outside has the platform.
framework on the top of silo is composed of 8 pieces Z-type steel purlin
The cover on the top of silo is pressed by 0.75mm hot galvanized , with 1.2m height of guardrail
Each silo has 2 Natural ventilation cap, 1 bservation hole
Each silo has one set of inside vertical ladder.

installation of grain silo 500t for sale

The grain silo 500t for sale for grain we have installed all over the world:
