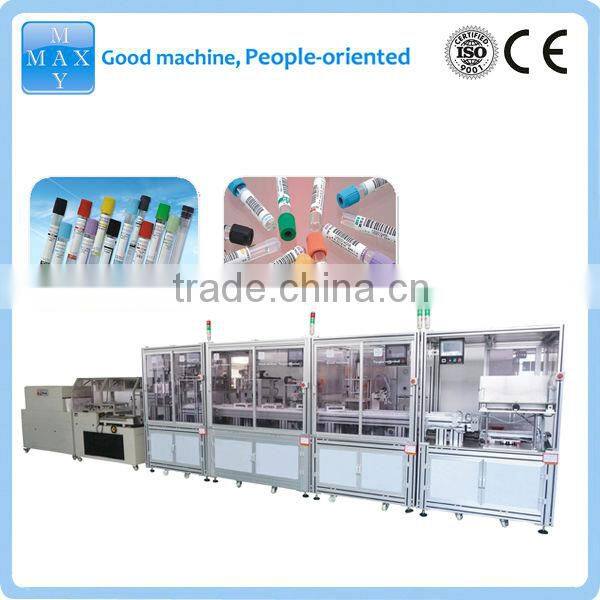

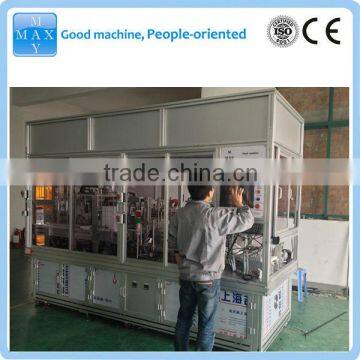

New Hot Non Vacuum Blood Collection Tube Machine

Equipment Introduction

1. New hot non vacuum blood collection tube machine is used to assemble 16mm vacuum blood collection tube automatically, including automatic tube filling, spraying & dosing, drying, online capping & stoppering, pre-vacuuming & tray loading etc..

2.This machine is the first line in China which can realize online cap & stopper combination.

3.Meanwhile, it is also the first line directly using derangement foam tray.

4.It can track and inspect the assembling technology in the whole process, and reject the faulty ones.

5.Basically resolve the traditional process which has inadequate control to the products quality.

6.It also enhances the products quality, and reduces labor cost.

The line can be equipped with laminar air flow hood.

l Compact structure, stable, easy to install.

2 Low power consumption and running cost.

3 Adopt powerful fan, long-term use under high hydrostatic situation.

4 Maintain low noise.

5 Class A(≥0.5um particles≤3.5/L)

6 Average air speed: 0.35-0.55m/s

7 Noise≤64(dB)m(A)

Main Technical Parameters

Features:

l  Space utilization

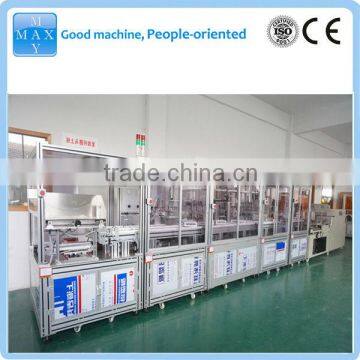

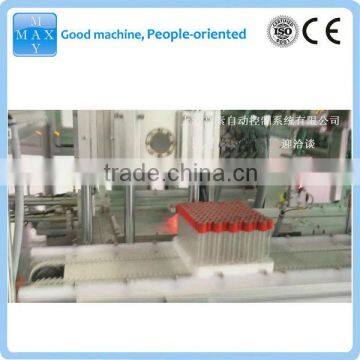

New hot non vacuum blood collection tube machine includes tube loading, filling, drying1, drying2, capping, stoppering, pre-vacuuming, vacuum sampling, tray loading.Comparing with traditional type, overall length is only the half.

lI  Higher efficiency

This machine uses multi-axis manipulators, to ensure the equipment precise running and digital control.

Multi-channel filling system, high efficient drying system, special capping and stoppering, with vacuum degree detection device, bring the system more stable running, and higher production capacity.

lII  Less operators

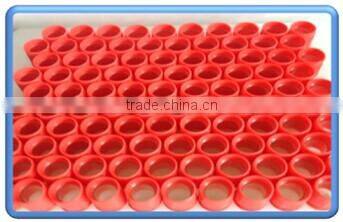

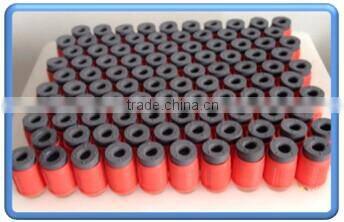

With online cap & stopper combination function, it can reduce one cap & stopper combination machine and the relevant operator.

The whole production line only need 2 operators to easily run the production process.

lV Comprehensive inspection

Service for the production line

Pre-sale service

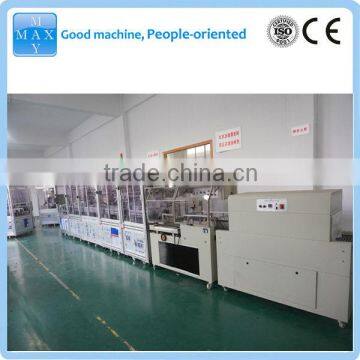

Our products include modular type and integral type. According to our latest design, the production line is composed of tube labeling, tube filling, gel filling, dosing, cap&stapper combining and wearing, tube pre-vacuum&loading, shrinking packing stations.

Thanks to our highly automatical advanced intelligent control system, all the fabricating information can be displayed and controlled in the touch screen, to ensure safely and effectively fabrication.
