Home > Products > Special generator > 50Hz 300kw 375kva AC 3 phase silent diesel generator meeting your need for clean,low-cost power

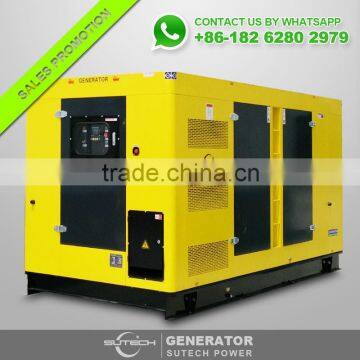

50Hz 300kw 375kva AC 3 phase silent diesel generator meeting your need for clean,low-cost power
- Shanghai
- T/T Credit Card
You May Like
-
high quality 2mw retread natural gas generator with low price fast delivery
-
BV/CCS/ABS containerized 500kva marine generator KT19-DM engine (50Hz/60Hz, 400V/440V/480V)
-
Low using cost 1.2MW 1200kw natural gas generator with Jichai engine
-
BV/CCS/ABS 40Kw~800Kw Cummins marine diesel generator, prime power type and emergency type
-
BV/CCS/ABS 400Kw Cummins marine generator, powered by Cummins KTA19-DM engine (50Hz/60Hz, 400V/440V/480V)
-
BV/CCS/ABS 350Kw marine generator, emergency type, powered by Cummins KTA19-DM engine (50Hz/60Hz, 400V/440V/480V)
Product Details
Place of Origin | Jiangsu, China | Brand Name | SC12E460D2 | |
Model Number | 300kw diesel generator price | Output Type | AC Three Phase | |
Speed | 1500rpm/min | Frequency | 50HZ | |
Rated Power | 300kw | Rated Voltage | 400/230V | |
Rated Current | 540A |
Product Description
50Hz 300kw 375kva AC 3 phase silent diesel generator meeting your need for clean,low-cost power
Open Type Silent Type Mobile Type
Container Type Synchronizing Type Portable Type
The following engine brands, alternator brands and Control panel for optional
Rated power | Engine | Alternator | Control panel |
20kw~1300kw | Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators | Deepsea ComAp Harsen Smartgen | |
8kw~1600kw | |||
68kw~504kw | |||
20kw~500kw | |||
220kw-2400kw | |||
280kw-800kw | |||
600kw-1800kw | |||
50kw-650kw | Doosan Daewoo | ||
2kw~2500kw |
Q:What's our power capacity range of diesel generators?
Answer: We can offer the range from 1kva~3000kva.
Q:What's your delivery time?
Answer: 7 work days after we get the down payment.
Q:What's your payment?
Answer: T/T, L/C, and 30% T/T as the deposit, the balance payment should be paid before shipping and Alibaba trade assurance acceptable.
Q:What's your warranty?
Answer: One year warranty or 1000 hours which comes first.
Q:What's your MOQ?
Answer: 1 set.
Q:What’s the frequency of diesel generators?
Answer: 50/60HZ
Q:What’s the voltage of your diesel generator?
Answer: 220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage…
50Hz 300kw 375kva AC 3 phase silent diesel generator
Engine
Engine Model | SC12E460D2 |
Engine manufacturer | Shangchai |
Number of Cylinders | 6 cylinders |
Cylinders arrangement | Vertical in line |
Cycle | 4 stroke |
Aspiration | Naturally |
Bore×Stroke | 128mm x153mm |
Displacement | 11.8L |
Compression ratio | 16.5:1 |
Prime Power/Speed | 338KW / 1500rpm |
Standby Power/Speed | 338KW / 1500rpm |
Speed Governor | electrical |
Cooling System | Forced water cooling cycle |
Steady speed droop | ≤1% |
Total lubrication system capacity | 45L |
Fuel Consumption at 100% Load | 198 g/kw.h |
Starter Motor | DC24V, |
Alternator | AC24V |
50Hz 300kw 375kva AC 3 phase silent diesel generator
Alternator
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 300Kw |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
Control panel
Brand | Deepsea/ComAp |
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
Optional-addtional parts
Engine | Fuel System | Cooling system | Exhaust system |
Coolant Heater Lube oil heater Electronic governor Engine oil temperature | External Tank Water Separator | 50-60 Radiator, Remote radiator Cooling tower | Heavy Duty air filter Silencer Enclosures |
Alternator | Control System | Others | Voltage Connections |
Anti Condensation Heater Permanent Magnet Generator-PMG Drop CT-for paralleling | Remote Control Panel Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet | Rainproof Type Soundproof Type Containerized Type Trailer Type Spare Parts | 480/277V 440/254V 416/240V 400/230V 380/220V 240/139V 220/12 V 208/120V |
High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available |
Taizhou Sutech power Machinery Co., Ltd which is one of the largest diesel generator set manufacturers in China mainland. Our production capacity amounts to 9000 sets per year. We are specialized in making 1kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA, TWGII alternators. Our gensets mainly use DEEPSEA and SMARTGEN control panel. According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
