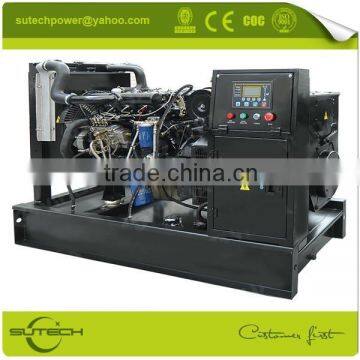

10Kva to 60Kva Yangdong diesel generator, High quality and low price, water cooled

FOB Price

USD $2,000 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Yangdong
Model Number	Yangdong engine	Output Type	AC Three Phase
Speed	1500rpm/min	Frequency	50Hz
Rated Power	10Kva to 60Kva	Rated Voltage	110V~600V
Rated Current	14.4A~90A

Product Description

Specifications

Yangdong diesel generator from 10Kva to 60Kva
TWGII alterantor
Deepsea control panel
High quality
Reasonable price

10Kva~60Kva Yangdong diesel generators

Main technical data

Yangdong engine

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Yangdong engine,Controlled by Deepsea panel

Voltage

Phase

P.F

(COS)

Output

(KVA)

400/230V

0.8

10Kva to 60Kva

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

Yangdong diesel generator power capacity

Rated Power (kw)		8	10	12		15	20	24	30
GENERATOR	Type	Brush or Brushless Alternator
	Cont.A C output (Kw)	7.5	9	11		13	17	23	27
	Max.output(Kw)	8	10	12		15	20	25	30
	Voltage (V)	220~ 240/110~ 120 400/230V
	Power Factor	1 for one phase and 0.8 for three phase
	Exictation System	Self-excitation & Brushless or Brush
ENGINE	Model	Y385G	YD480G	YD1485G		YSD490G	Y490D	Y4100G	Y4102G
	Displacement (L)	1.357	1.532	1.809		2.156	2.672	3.76	3.76
	Bore×stroke (mm)	80*90	85*90	80*90		85*95	90*105	102*115	105*115
	Starting system	12V or 24V Electric Starting
	Cooling method	Closed/Open circle water-cooied
	Firing order	2001/3/2		1-3-4-2
	Compression Ratio	22.5	22	18		18	18	19	19
	Specific fuel consumption	≤265	≤262	≤249		≤245	≤243	≤258	≤258
	(g/kW .h)
	Steady speed regulation	≤5%
	Instantaneous speed regulation	≤10%
	Steady speed time(s)	≤5
	Fluctation rate of speed	±0.5%
DIMENSIONS	Fuel tank capacity (L)	100
	ing time (h)	45	35		32	25	20	15	12
	Overall dimensions (L×W×H)(mm)	16509001000			18009001000

Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	62.5Kva~825Kva
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Control panel

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.
