Super Low Density XPS Foam Boards
- Qingdao CHINA
- Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | DEYILI | |
| Model Number | DWB-1200 | Material | Other, extruded PS | |
| Thickness | 20-140mm | Size | 600/900/1200mm |
Product Description
Super Low Density XPS foam boards

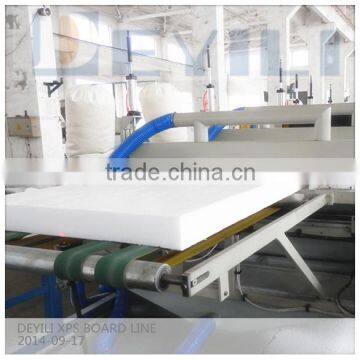

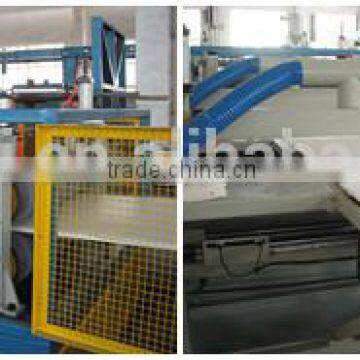

XPS foam plate production line is one of our new hi-tech products. XPS foamed board is one kind of
good insulating materials with continuous even surface and beehive structure. It has superior advantages
of good heat preservation, heat insulation, water-proof and high compression resistance. XPS board
has been widely used in the fields of heating-preservation and insulation for roof and out-wall, low
temperature storage facilities, surface and undersurface of roads. As an ideal insulating and damp-proof
material, it has wide market prospect.
Main technical parameter:
Material | Poly styrene |
Production precess | Thermo extrusion |
Board width | 600/900/1200mm |
Board length | 600mm~2000mm |
Board thickness | 20~140mm |
Color | User identified |
Density | 28~45kg/m3 |
Compression strength | 200kPa~800kPa |
Water absorption V/V | ~0.20% |
Moisture permeance | ~0.75ng/m.s.Pa |
Size stability L/W/T | 0.28%/0.15%.0.85% |
Burning performance | B1,B2 |
MOQ | 200m3 |
Delivery time | 5 days |
The standard seaworthy packaging: Standard sea-worthy packing by PE film for 4-side or 6-side.

Since foundation in 1998, Deyili has been persevering in technology innovation and devoted to R&D and
applications of new machinery, new technology and new technique. We have an excellent technical team
and keeps close cooperation with many technology institute and universities. At present, Deyili owns 28
National Patents, 14 items supplied domestic gap and 6 items are National Key Products. We take the
lead in development and updating of our key products, which reached the highest technical level in China.
Deyili passed certifications of ISO9001 and CE. According to criteria of modern enterprises, we are making
great efforts to carry out effective management from production, supply, quality, technique, to services.
Deyili has won wide recognition from domestic and overseas customers by high quality products and service.
After years of exploration, the enterprise has been enlarged and strengthened continuously.
Now it has become a group which widened its businesses from one fold plastic machinery to
production of plastic pipes and pipe-fittings. Deyili can provide more integrated solutions and
all-around services to customers from extrusion lines to technique and materials.
Payment terms | 30% down payment after signing the contract within 5 workdays, the rest 70% payment after test run in our factory and before shipment. |
Accepting& inspecting in seller's factory | Bring into the agreed time, it is in seller's factory to accept and inspect. The test run will make the pipes under two sides discussion, and promise the machine works in succession for two hours. Other special request, negotiate by two sides. The charge of test materials should be paid by buyer side. |
Installation&test-run in buyer's factory | 1)User should prepare the plant, operators and tools for machine installing, and make the energy available such as water, electricity, materials, work space, labors and so on. 2)Seller send one engineer for direction and supervising the installing, test run and training. The test run will be finished in 15 days if there is other requests please inform in advance. 3)The buyer should pay $100 per day as subsidy for the engineer, and in addition the round airplane tickets, food, hotel fee and insurance of the engineer during the installation and test-run period. |
Documents supply | Mechanical and electrical operation manual(1), Electrical connection drawing(1), And Operation technique manual(1). |
Welcome for your visiting and discuss the details on the technical and process.
The concrete information please write to our sales.
