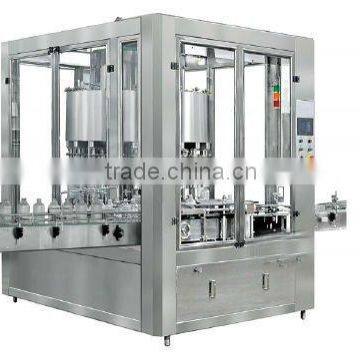

FRP-20 Full automatic rotary piston filling machine
Negotiable
/ Set
1 Set(Min. Order)
- T/T
You May Like
Product Details
| Condition | New | Application | Other | |
| Packaging Type | Bottles | Automatic Grade | Automatic | |
| Power | 4.5KW | Place of Origin | Jiangsu, China | |
| Brand Name | no | Model Number | FRP-20 |
Product Description
Specifications
This is a new developed quantitative filling machine, high automation, large production capacity.Main characteristics:
1.This is a new developed quantitative filling machine, high automation, large production capacity. Stroke of the piston cylinders are controlled by PLC. The whole filling process is the perfect combination of mechanism, electricity, photics and pneumatics. The performance of this machine can reach the international advanced technology of similar products.
2.It adopts advanced mechanical and electrical integration technology. Any filling specification can easily be changed by modifying parameters in touch screen. Not only the filling volume of 20 filling heads can be changed substantially, but also each filling head can be changed finely. The computer memory can save related parameter of each kind of package specification which save time for the next adjustment.
3.During the machine running cycle, each part of mechanical drive is protected by mechanical and electrical integration. Any abnormity during running, the machine will stop automatically and alarm. At this time, the touch screen shows where the problem is.
4. Thanks to the function of watertight and pneumatic protection, it is environment-friendly equipment.
Technical parameter:
No. | Items | Performance |
01 | Machine Dimension(L×W×H) | 2400mm × 2200mm x 2200mm |
02 | Number of filling heads | 20 |
03 | Bottle spec. | |
Diameter | φ40mm~φ120mm | |
Height | 80mm~280mm | |
04 | Filling volume | 50ml~1000ml |
05 | Production capacity | 12,000 bottles / hour (tested by water) |
06 | Filling tolerance | |
50ml~200ml | ≤±1ml | |
200ml~1000ml | ≤±2ml | |
07 | Power supply | 380V ;50Hz |
08 | Power | 4.5 Kw |
09 | Pneumatic(air-operated)source | 0.4~0.65 MPa clean and stable compressed air |
