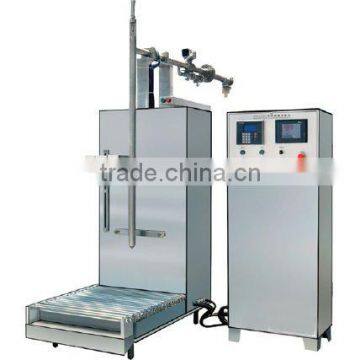

FW-300S Liquid Weighing filling Machine
Negotiable
/ Set
1 Set(Min. Order)
- T/T
You May Like
Product Details
| Condition | New | Application | Other | |
| Packaging Type | Other, DRUM | Automatic Grade | Automatic | |
| Power | 0.5KW | Place of Origin | Jiangsu, China | |
| Brand Name | no | Model Number | FW-300S |
Product Description
Specifications
It is a special designed filling machine with one filling nozzle, for liquid from 100kg to 300KgMajor characteristics:
This is a special designed filling machine with one filling nozzle, for liquid from 100kg to 300Kg, the filling nozzles can reach the bottom of barrel during filling, which can efficiently reduces foaming producing. This machine with the advantages such as: compact structure, high accuracy of quantative filling, large production, etc.
Technical parameter:
No | Items | Performance |
01 | Power supply | AC 380V; 50Hz (may customized) |
02 | Power | 0.5 Kw |
03 | Container mouth diameter | ≥ φ60 mm |
04 | Container spec(max) | Φ600mm × 930mm |
05 | Filling range | 100kg~300kg |
06 | Filling tolerance | ±0.2% F.S. |
07 | Production Capacity | 40~60containers/hour |
08 | Number of filling nozzle | 1 |
09 | Pneumatic (air-operated) source | 0.6Mpa clean and stable compressed air |
10 | working relative humidity | < 95% (no condensation) |
11 | working environment temperature | 0-40 °C |
12 | material interface | standard flange(material intake pressure:< 0.6 MPa) |
13 | machine weight | 420kg |
14 | machine dimension (L×W×H) | 800mm ×1700mm × 2100mm |
