Prefab House (K Type-2)

FOB Price

US$ 30 - 60 / Square Meter

1 Square Meter(Min. Order)

Port Guangzhou
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OEM
Model Number	K Prefab house	Material	Other, steel & sandwich panel
Use	Carport, House, Warehouse, Other, Carport, House, Warehouse, Workshop,Plant, House/Shop/Warehouse/Workshop,Plant

Product Description

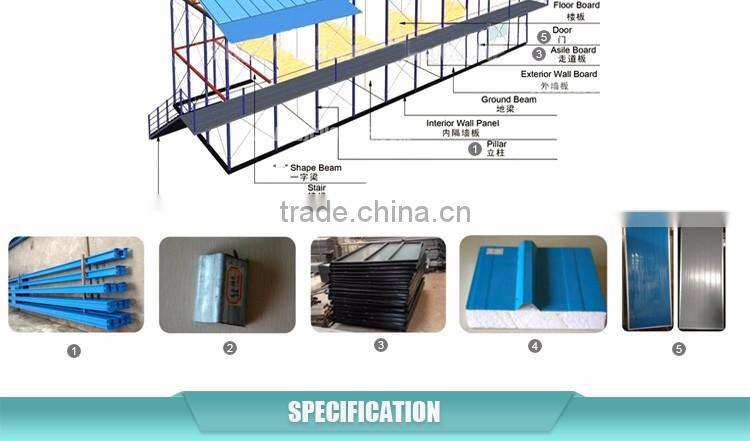

No.	Parts name	K type house (economical)	T type house (luxury) / hipped roof house
1	roof beam	8#C-section steel	double 14# 16# 18# steel channel
2	floor purlins	8#C-section steel	12# C shaped steel
3	ground beam	8#C-section steel	55mm steel channel
4	pillar/column	double 8#C shaped steeel	8# square tube
5	ring bream	8#C-section steel	8# channel steel
6	"A" shape roof	8#C-section steel	angle section steel,C-section steel
7	roof purlins	8#C-section steel	40801.8 square tube
8	roof fixture	L40*30

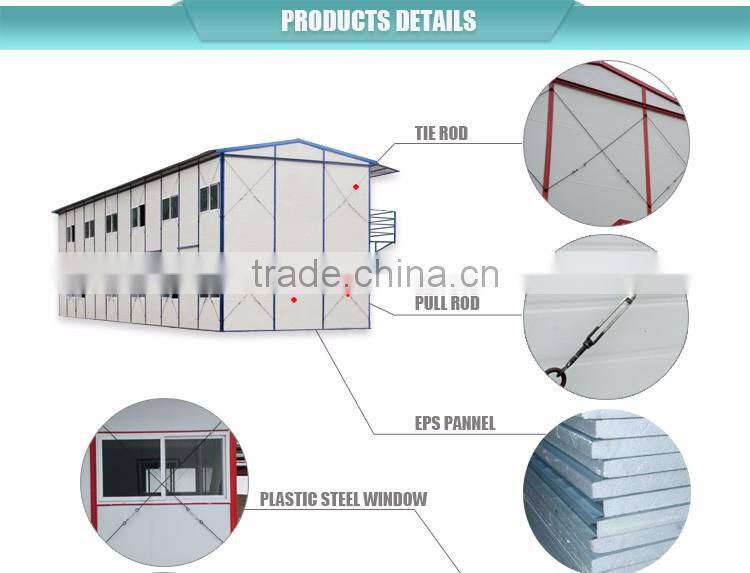

9	external wall	50-200mm EPS/glass wool/rock wool/extruded plate)XPS)/phenolic foam board (SDQX)/PU sandwich panel(single steel plate:0.2-0.5mm thickness)	50-200mm EPS/glass wool/rock wool/extruded plate)XPS)/phenolic foam board (SDQX)/PU sandwich panel(single steel plate:0.2-0.5mm thickness)
10	internal wall	50-200mm EPS/glass wool/rock wool/extruded plate)XPS)/phenolic foam board (SDQX)/PU sandwich panel(single steel plate:0.2-0.5mm thickness)	50-200mm EPS/glass wool/rock wool/extruded plate)XPS)/phenolic foam board (SDQX)/PU sandwich panel(single steel plate:0.2-0.5mm thickness)
11	roof panel	20mm PU foam tile	50mm/75mm/100mm sandwich corrugated tile,PPGI plate(0.2-0.5mm thickness) Middle:EPS/glass wool/rock wool/extruded plate(XPS) phenolic foam board(SDQX)
12	window	PVC sliding window	PVC sliding window/aluminum alloy sliding window
13	door	steel frame with sandwich panel door	aluminum frame with sandwich panel door

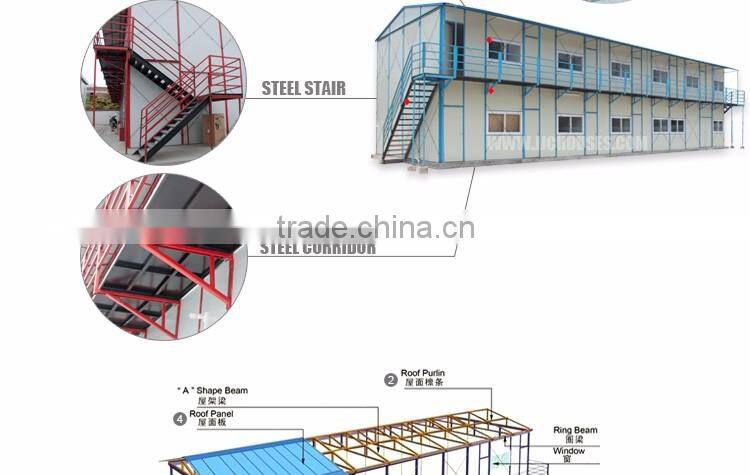

14	stair	steel stair
15	aisle board	3mm pattern-steel plate
16	rain shelter shed	0.2-0.5mm color steel plate
17	floor bearing	15mm PLY-wood board
18	length	less than 150 meter
19	width	less than 15 meter
20	height	single layer less than 3.1 meter
		doule layer less than 6 meter
		3 layer less than 9 meter
21	inner height	2.85 meter per layer
22	roof slope	1:05
23	bearing weight	roof:70kg/sqm
24	bearing weight	floor:150kg/sqm
25	wind grad	11 grede
26	fireproof grad	B1-A1 grade
27	temperature	−40 to −60 degree
28	anti-earthquake	7 grade

JJC house is located in Guangzhou, Guangdong, the most prosperous city in south of China. We produce, develop and export prefab house, prefab villa, container house, portable toilet...

With a hard-working excellent team and harmonious wording atmosphere, our products are more and more perfect and diversified, not only beautiful in appearance, but also practical in marketing.

JJC house is committed to provide first-class quality and efficient pre-sale and after sale services, which has taken good reputations from our customers around the world.

You are welcome to visit our office in Guangzhou; it is only 10 minutes from the Guangzhou fair.
You are welcome to visit us and Email to us now!
