Single Layer Cast Stretch Film Machine / Casting Machine
- NINGBO
- T/T Credit Card PayPal
You May Like
-
Cast Stretch Film Machine/stretch Film Machine Price
-
Cast Stretch Film Machine/pvc Stretch Cling Film Machine Quality Choice
-
Cast Stretch Film Machine/cast Stretch Film Manufacturing Machine
-
Cast Stretch Film Machine/stretch Film Rolls Cutting Machine
-
Cast Stretch Film Machine/cast Stretch Film Machine
-
Cast Stretch Film Machine/cast Film Production Line
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | AUTOMATIC | Place of Origin | Zhejiang, China | |
| Brand Name | JINGDIANRUIHUA | Model Number | single layer | |
| Voltage | ACCORDING YOUR REQUIRE | Power(W) | 65KW | |
| Dimension(L*W*H) | 6800*2300*2400MM | Weight | 4000KG | |
| Certification | CE SGS | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Single Layer Cast Stretch Film Machine / Casting Machine
1,Introduction of Casting Machine
1) This machine uses LLDPE and LDPE as main material to make one side or two sides self-sticky stretch film,recycled LLDPE is available
2) This machine can make machine use film and hand use film,widely used in packing cargos
3) Stretch film has good shrinking memory and self-sticky function,prevent goods from loosening and collapsing during transportation
4) Perfect transparency and tensile strength of this film keep cargos clean and safe
2,Main Configuration of Casting Machine
1) Extruders: 3 screws with diameter 90/55/55mm,L/D 30:1,screw and barel material 38CrMoAl
2) Loading: 3 sets automatic vacuum loaders
3) T Die: width 1800mm,5 layers extrusion A/C/B/C/A
4) Cooling: 2 pieces recycling water chiller
5) Control system: Delta PLC,touch screen
3,Performance of Casting Machine
1)Good tensile strength
2)Superior anti-pricking ability
3)High transparency
4)Good ductility and anti-impact strength
5)Stable sticky effect
4,Main Technical Parameters of Casting Machine
| 1500mm Casting Machine | ||
| MODEL | MS-90/70-1500 | MS-90/55x2-1500 |
| Screw diameter | 70/90mm | 55x55x90mm |
| L/D ratio of screw | 30:1 | 30:1 |
| Width of T-Die | 1750mm | 1750mm |
| Width of film | 1500(500X3)mm | 1500(500X3)mm |
| Thichness of film | 0.01-0.05mm | 0.01-0.05mm |
| Structure of film layers | A/B/A | A/B/C,A/C/B/C/A |
| Max output | 200kg/h | 220kg/h |
| Linear speed of machinery | 150m/min | 150m/min |
| Total power | 125kw | 140kw |
| Dimension(LxWxH) | 12x2.5x3m | 12x2.5x3m |
| Weight | 9T | 10T |
| 1000mm Casting Machine | ||
| MODEL | MS-70-1000 | MS-70/55-1000 |
| Screw diameter | 70mm | 55/70mm |
| L/D ratio of screw | 30:1 | 30:1 |
| Width of T-Die | 1250mm | 1250mm |
| Width of film | 1000(500X2)mm | 1000(500X2)mm |
| Thichness of film | 0.01-0.05mm | 0.01-0.05mm |
| Structure of film layers | A | A/B,A/B/A |
| Max output | 90kg/h | 110kg/h |
| Linear speed of machinery | 50-100m/min | 50-100m/min |
| Total power | 50kw | 80kw |
| Dimension(LxWxH) | 8x4x3m | 8x4x3m |
| Weight(about) | 6T | 7T |
| 500mm Stretch Film Machine | ||
| MODEL | MS-55-500 | MS-55/55-500 |
| Screw diameter | 55mm | 55x2mm |
| L/D ratio of screw | 30:1 | 30:1 |
| Width of T-Die | 650mm | 650mm |
| Width of film | 500mm | 500mm |
| Thichness of film | 0.01-0.05mm | 0.01-0.05mm |
| Structure of film layers | A | A/B |
| Max output | 25-40 kg/h | 35-55kg/h |
| Linear speed of machinery | 50-100m/min | 50-100m/min |
| Total power | 40kw | 65kw |
| Dimension(LxWxH) | 7x4x3m | 7x4x3m |
| Weight(about) | 3T | 4T |
5, Delivery Time of Casting Machine
30 days after deposit

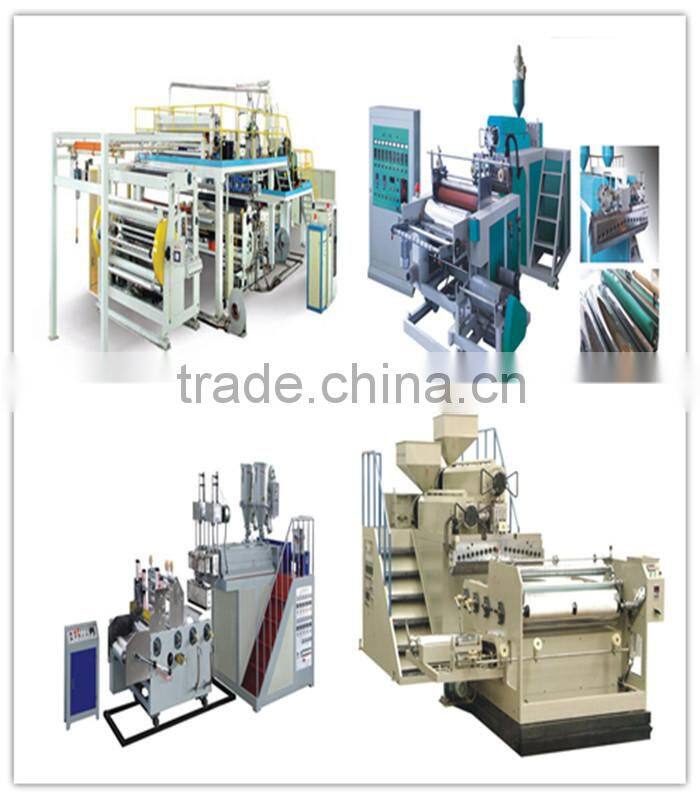

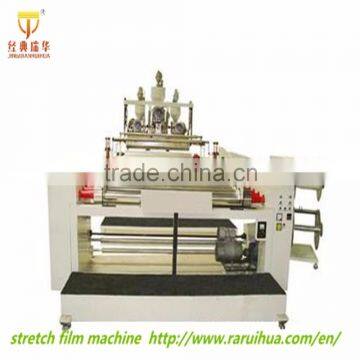

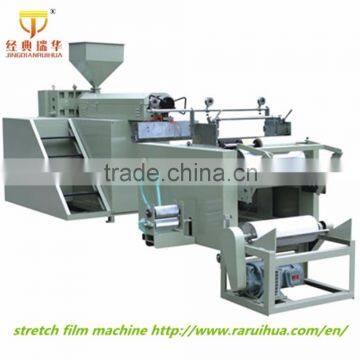

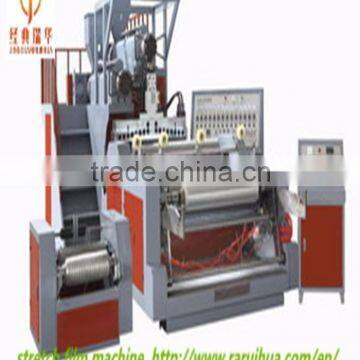

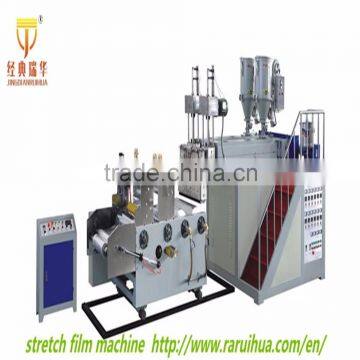

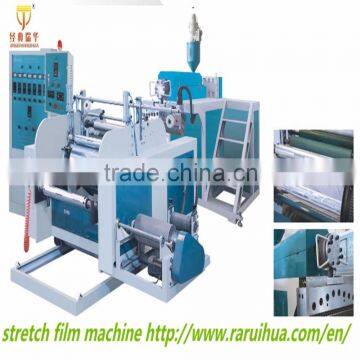

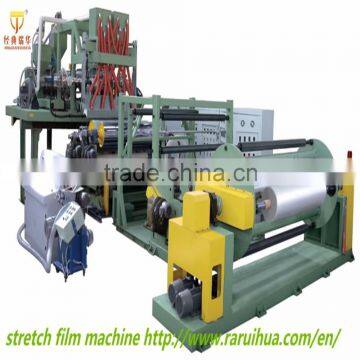

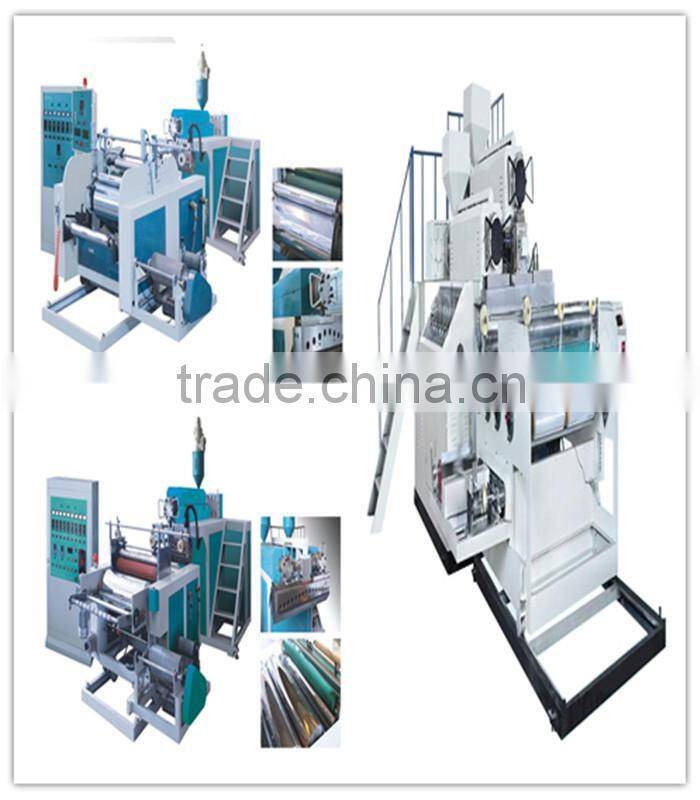

6,Detailed photos of Casting Machine
1.Q:Are you a factory or trading company ?
A:We are a factory
2. Q:Where is your factory located ?How can I visit there ?
A:Our factory is located in Ruian City , Zhejiang Province ,China. It's about 40 minutes by plane from shanghai (5 hours by train ) All our clients from home and abroad are warmly welcome to visit us
3. Q:How is your after-sales service ?
A:We have been in this printing machine line of business for more than many years , we will send our professional engineer to install and test machine .So our after-sales service is always reliable
4. Q:How can I get sample bags ?
A: We are honored to offer sample bags
5. Q:If your machines can print ..........
A : Our machines is multifunction , can do roll to roll printing , such as paper, plastic , woven , nonwoven .Surely , you can offer your products, Let us confirm it . we will suggest you the best project.
6 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory , we put more time to the quality control
---------------------------------------------------------------------------------------------------------------
1.We will test machine, before shipment,then make QUALITY CERTIFICATE From Inspection Department of Government,Then send picture and video to customers!
2.Packing :Stretch Film Packing with Wooden Packing ,Or Vacuum Packing
