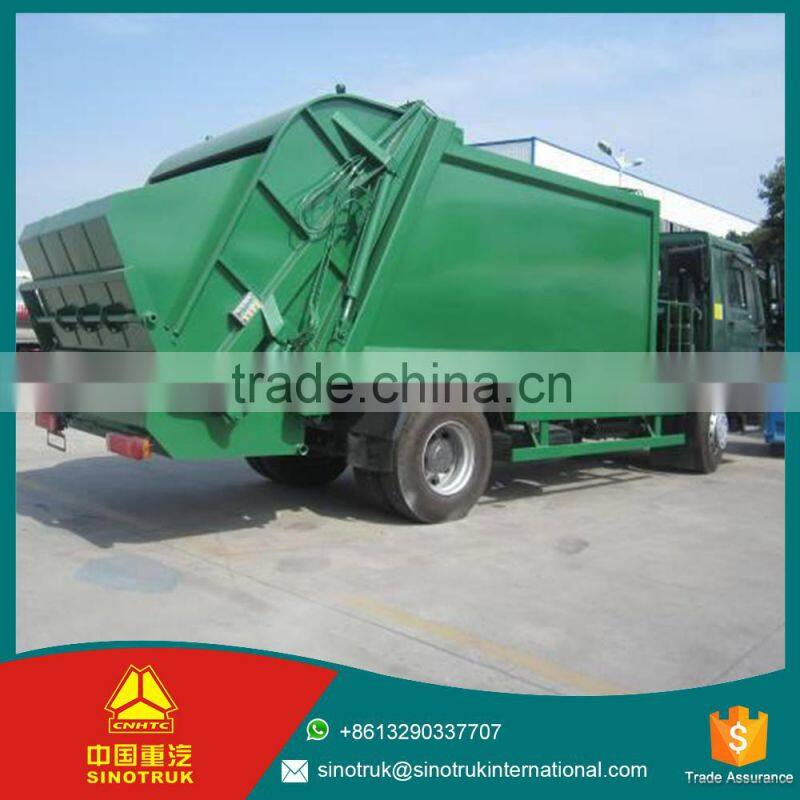

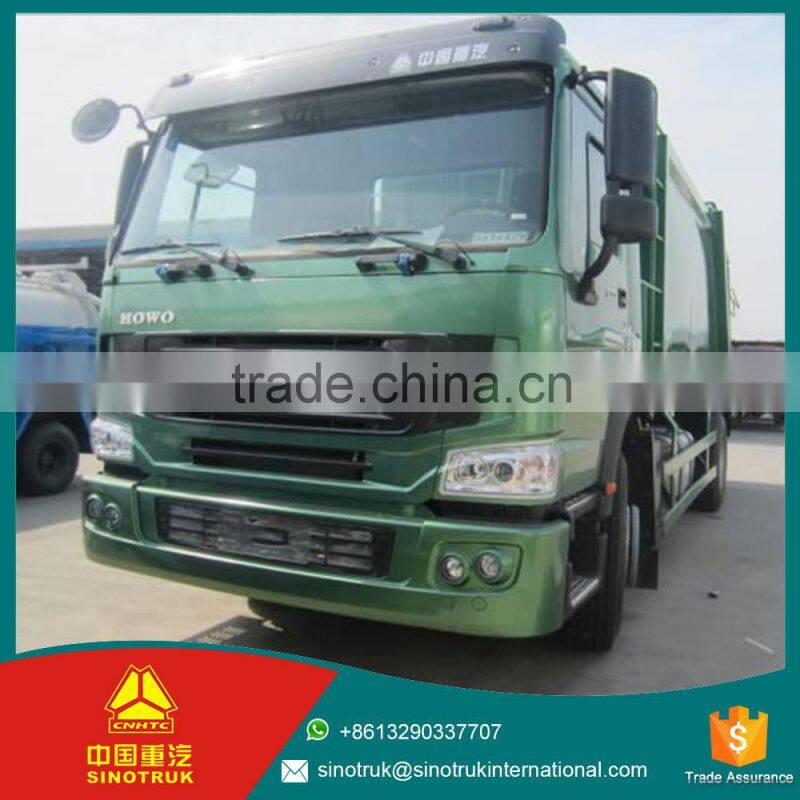

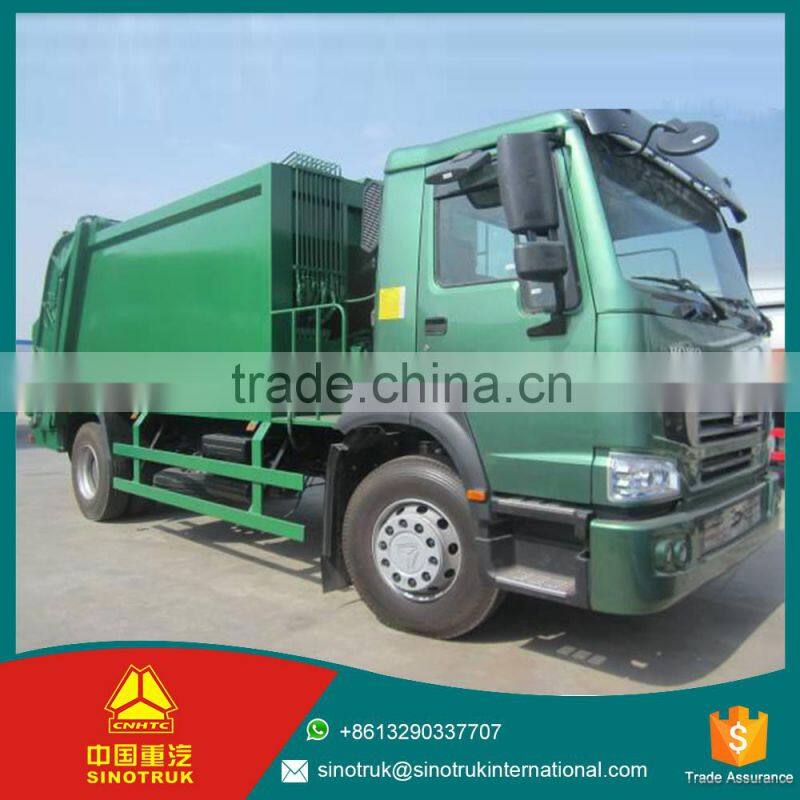

Manual Operation Howo 290HP Rubbish Truck/compressible Garbage Truck / 4*2 Garbage Truck

 Model Name

HOWO compactor garbage truck

 Chassis model

ZZ1167M4617C

Driving Type

4x2,right hand drive

Weights

Rated payload weight(kg)

20000

 Curb weight(kg)

8300

8000

7800

Dimensions

Wheelbase(mm)

4600

 Overall Dimension(mm)

8765×2500×3300

8600×2500×3300

8500×2500×3300

 Garbage box

12m3

10m3

8m3

 Max speed(km/h)

 90

Engine

Engine model

WD615 (290HP)

Engine type

4 stroke water-cooled,,turbo-charge,Intercooling engine

No. of cylinders

straight-6 cylinders

Displacement(L)

9.726L

Max.Power(Kw)

213

Drive Line

Transmission

HW13710,10forwarder,2 reverse gear,manual operation

Steering

ZF8098

Brake system

Air brake

Cab

Cab

HW76 with one bed

Standard configuration

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly; with A/C; Whole instrument desk, digital meters,

Axle

Front axle

HF7

Rear axle

ST13

Tire specification

Tire specification

295/80R22.5

Box technology specification

Box valume

8m3-12m3

Box material and thickness

Side 4mm,bottom 5mm

Sewage tanker

200L

Fill volume

1.2cbm

Loading time

20-30S

The cycle time of the loading

50-60S/per turn

Unloading model

Dump

Unloading time

40-50S

Hydraulicsystem pressure

16Mpa

Other

Electric system

VDO electric system ,24V,negative grouped

Tool

Standard equipment
