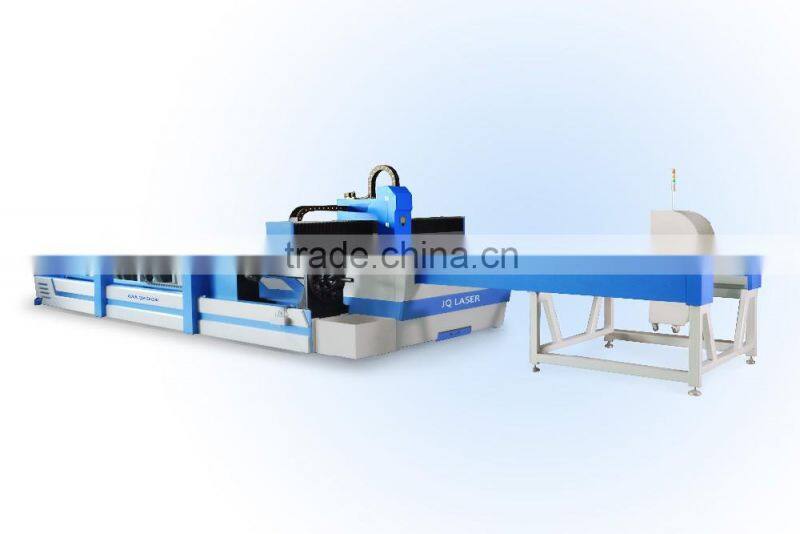

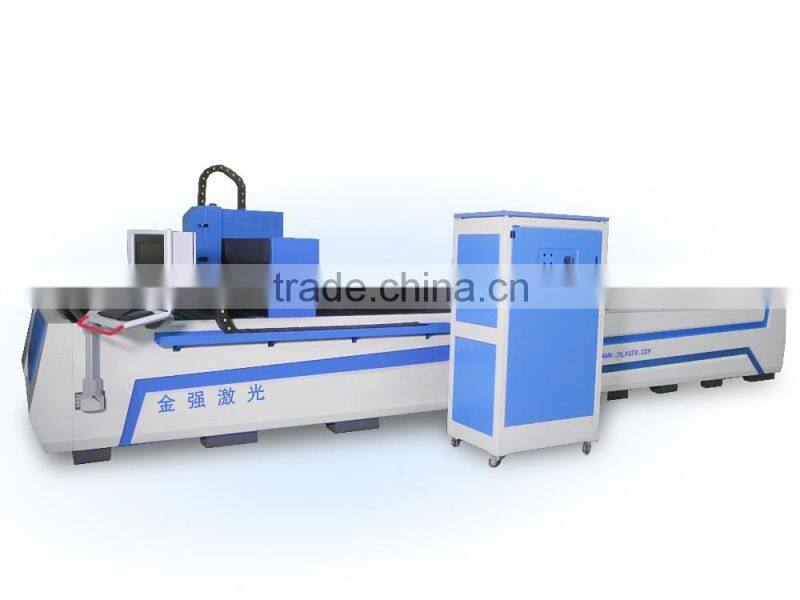

Fiber Laser Cutting Machine for Metal Industry

Product Application

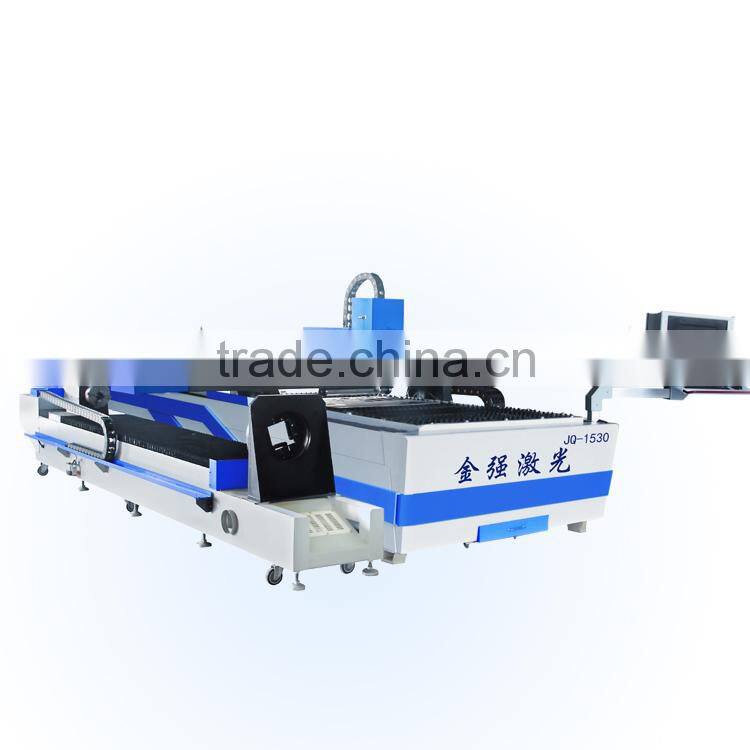

JQ-1530 fiber laser cutting machine adopts America Nlight laser device(option: IPG, Raycus) which has international advanced laser technology. Equipped with efficient transmission system by Taiwan high-precision gear rack after grinding process and high-precision linear guide. Advanced automatic CNC CYPCUT system, group into high precised CNC fiber laser cutting machine.

Mainly applicable for carbon steel, stainless steel and aluminum alloy etc such metals’ cutting and molding.With advantage of High speed, High precision, High efficiency and High cost performance. This model is metal processing industry’s first considering metal cutting machine.

Main Features

1)  Good beam quality: smaller focused spot, cutting lines more sophisticated, higher efficiency, better processing quality

2)  Cutting speed: 2 times the same power over carbon dioxide laser cutting machine

3)  Stable performance, laser life of up to 100,000 hours

4)  Electrooptical conversion rate: Fiber laser cutting machine Electrical and optical conversion rate three times higher than carbon dioxide laser, energy saving

5)  Low operating costs: the machine consumes about the same carbon dioxide laser cutting machine for 20-30% 6: Low maintenance costs: no laser working gas;

optical fiber transmission, without reflection lenses; may save a lot of maintenance costs

7)  Convenient operation and maintenance: fiber optic transmission, no need to adjust the optical path

8)  Flexible light guide effect: small, compact, easy to flexible manufacturing needs

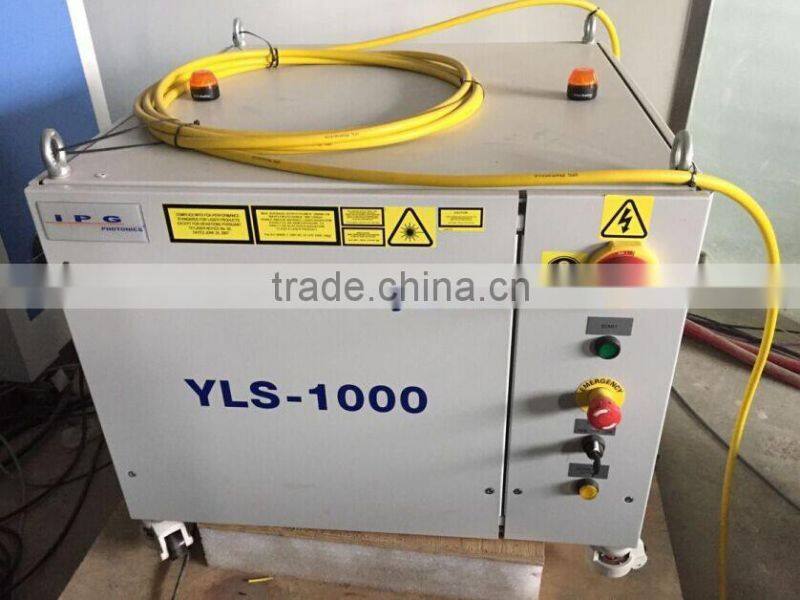

Name: IPG Fiber Source

Brand: IPG

Original: Germany

Lifetime up to 100000 hours;
The photoelectric conversion more than 35%;
Working environment: 10-40 degree
Device with air-condition to keep it in normal temperature.

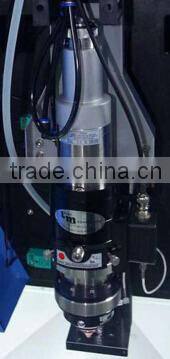

Name: Lasermech Laser Head
Brand: LaserMech
Original: America
With Auto sensor system. Make sure cutting steel which is out of shape.
Inside laser head, with one one collimating mirror, one focus lens and protect mirror.
At the bottom with copper nozzle, diameter mainly with 1.5mm diameter.

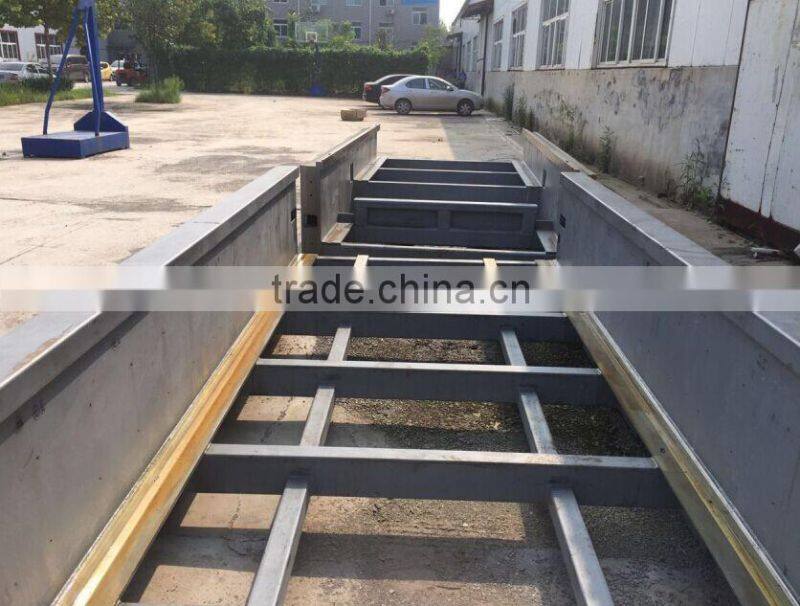

Name: Machine body

X-axis beam is Casting aluminum alloy structure, machine bed is casting structure, it can make sure long time machine bed not out of shape. Work stable is very important for the machine performance after long time using.

Name: Cypcut Control System

With Cypcut Control system and software with English language, applicable insert files with DXF. Or AI format. Drawing in the software is also okay. Software with fly cutting mode for cutting same products for save time. With Nesting function, autonomic compose type for saving materials by saving spaces.
