metal letters laser cutting machine
- 300 Set / Sets per Month
- qingdao
- T/T Credit Card PayPal
You May Like
Product Details
Laser Type | YAG | Place of Origin | Shandong, China | |
Brand Name | JQ | Model Number | JQ-YAG-500W |
Standard export plywood case
Product Description
Specifications
metal letters laser cutting machineJQ-YAG-500W laser cutting machine
1.one year warranty
2.CE/FDA
metal letters laser cutting machine

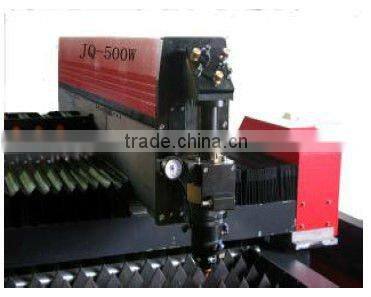

JQ-YAG-500W laser cutting machine
1. Machine features
1) Laser cutting head with metal sensor (autofocus for metal cutting) imported from USA, has high sensitivity and good stability.
2) Power supply controlled by control cabinet, easy to operate. Control computer is installed.
3) Japanese servo motors improve the cutting speed and stability.
4) High precision ball screws drive system.
5) 5P water chiller.
6) High precision in cutting. Excellent in stability. High quality in cutting edge
7) High performance-price ratio
2. Technical parameters
No. | Items | Parameters | Unit |
1 | Machine Name | Metal laser cutting machine | |
2 | Machine Model | JQ-YAG-500W | |
3 | Laser wavelength | 1064nm | |
4 | Laser pulse frequency | 0.1 - 500Hz | |
5 | Width of pulse | 0.2 - 20ms | |
6 | Working current | 100 - 400 A | |
7 | Laser rated power | 500W | |
8 | Laser power source | 18kw | |
9 | Chiller | 5kw | |
10 | X axis, Y axis route | 1300×2500mm | |
11 | Z axis route | 50mm | |
12 | X,Y located precision | +/-0.05 | mm/m |
13 | X,Y repeated located precision | +/-0.05 | mm/m |
14 | Min line width | 0.2mm | |
15 | Located apparatus | Red light direction | |
16 | Way of air protection | Coaxial | |
17 | Suitable file format | dxf, ai, plt | |
18 | Driving way | Japanese servo motors | |
19 | Continuous working time | 24 | H |
20 | Max cutting thickness (Carbon steel) | 8 | mm |
21 | Applied material | Stainless steel, carbon steel, copper, aluminum, titanium sheet and so on | |
22 | General power | 12-20 | KW |
23 | Electrical source voltage | 380V±10%/50Hz/100A | |
24 | Spare parts | Xe lamp, water, auxiliary gas(N2, O2) | |
25 | Grade of laser | Class IV |
.

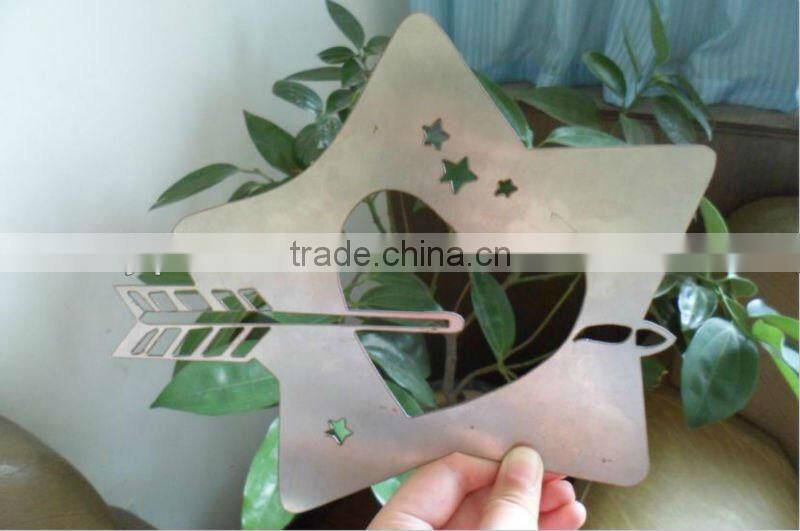

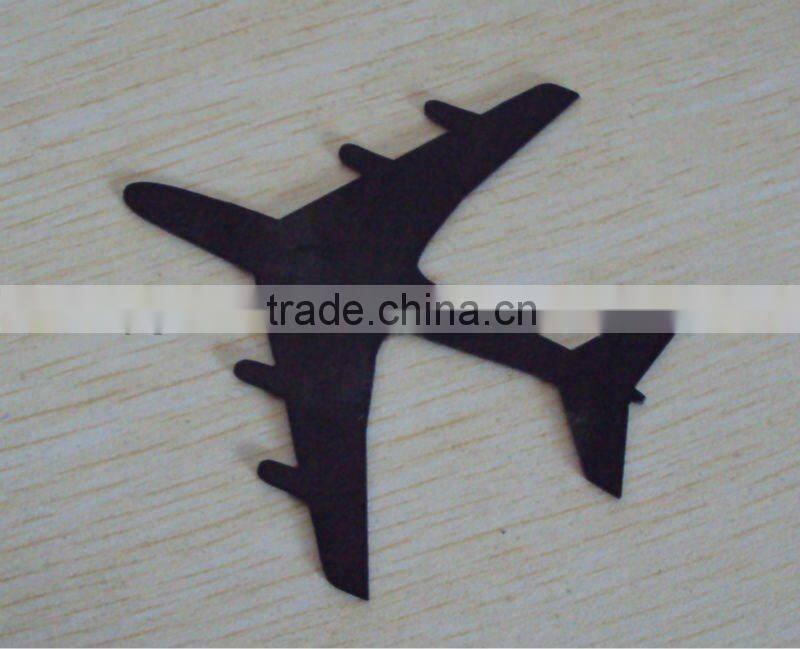

4. Samples
