Home > Products > XCMG Motor Grader > XCMG GR180 Motor Grader with front blade and rear ripper

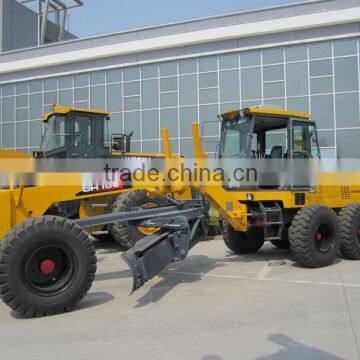

XCMG GR180 Motor Grader with front blade and rear ripper
- 20 Set / Sets per Month
- Qingdao/Shanghai
- T/T
You May Like
Product Details
| Condition | New | Forward Speed(km/h) | 38 | |
| Reverse Speed(km/h) | 23 | Place of Origin | Jiangsu, China | |
| Brand Name | XCMG | Model Number | GR180 | |
| Weight | 15400kg | Dimension(L*W*H) | 8900x2625x3470mm | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
XCMG Motor Grader GR180
Performance and characteristic:
1. New appearance design.
2. The articulation frame is adopted and macthed with the steering of the front wheel, with small turning radius, maneuvering and flexible.
3. The electro-hydraulic contrals the power shift gearbox, with 6 ahead box and 3 back gears.
4. The international mataching hydraulic parts are adopted, with reliable operation.
5. The motions of the knife are fully hydraulically controlled.
6. The rear axle is the three-section driving axle which is provide with the NO-SPIN self-locking differential mechanism.
7. The manipulation table and seats are adjustable. The arrgement of the manipulation handle and instruments are reasonable, with convenient application, and the comfprt of driving is improved.
8. The cab is grand and nice, with wide eyeshot and good sealing.
9. The front bolldozing plate,rear scarification device, front scarification harrow and automatic leveling device can be added.
Main technical specification
Basic specification | |
|---|---|
| Engine model | 6CTAA8.3 D6114 |
| Rated power/speed | 138kW/2200 140kW/2300rpm |
| Dimension(LxWxH) | 8900×2625×3470mm |
| Operating weight(Standard) | 15400kg |
Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 79KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3965×610mm |
