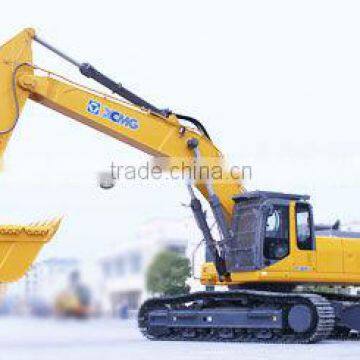

XCMG Crawler Excavator XE470C

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

XCMG Crawler Excavator XE470C

Parameter:

Model			Unit	XE470C
Operating weight			kg	46100
Standard bucket capacity			^m³	1.9~2.3
Engine	Engine Model		---	QSM11
	Type	Direct injection	---	√
		Four strokes	---	√
		Water cooling	---	√
		Turbo charged	---	√
		Air to air intercooler	---	√
	No. of cylinders		---	6
	Rated power/speed		kw/rpm	250/2000
	Max. torque/speed		N.m	1790/1400
	Displacement		L	11
Main data	Travel speed		km/h	5.4/3.2
	Max. gradeability		/	≥30
	Swing speed		r/min	9
	Ground pressure		kPa	82.7
	Max. Bucket digging force		kN	271
	Max. Arm crowd force		kN	231
	Max. Traction force		kN	338
Hydraulic	Main pump		--	2 Plunger pumps
	Rate flow of main pump		L/min	2*360
	Max pressure of prime relief valve		MPa	31.4/34.3
	Max pressure of travel equipment		MPa	34.3
	Max pressure of swing equipment		MPa	28.4
	Max pressure of pilot system		MPa	3.9
Oil & Fuel refilling	Fuel tank capacity		L	650
	Hydraulic tank capacity		L	360
	Engine lubrication		L	38
Dimensions	Overall length		mm	12030
	Overall width		mm	3580
	Overall height		mm	3842
	Overall width of upperstructure		mm	2995
	Track length		mm	5220
	Overall width of undercarriage		mm	3580
	Standard track shoe width		mm	600
	Track length on ground		mm	4180
	Track gauge		mm	2392/2890
	Clearance under counter weight		mm	1360
	Ground clearance		mm	703
	Tail swing radius		mm	3665
Working Range	Max. digging height		mm	10675
	Max. dumping height		mm	7409
	Max. digging depth		mm	7337
	8inch horizonal digging depth		mm	7117
	Max. vertical wall digging depth		mm	5225
	Max. digging reach		mm	11631
	Max. swing radius		mm	4909
	Angle of arm deflection		Degree
