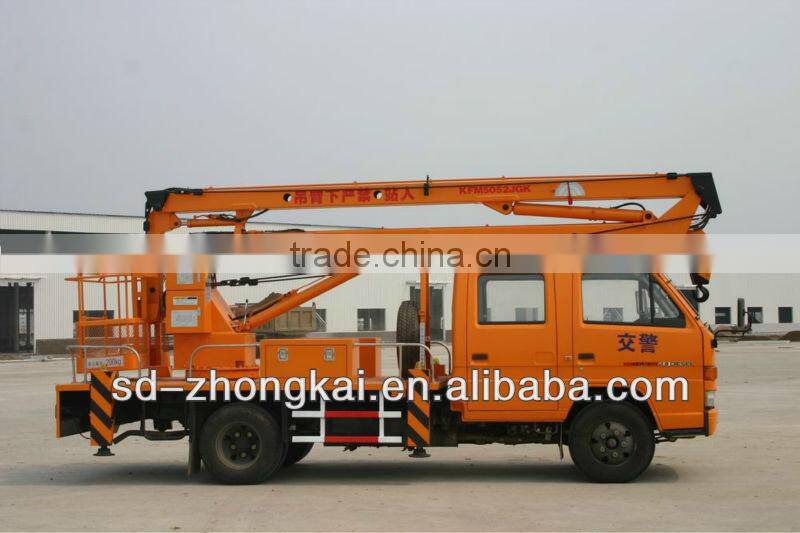

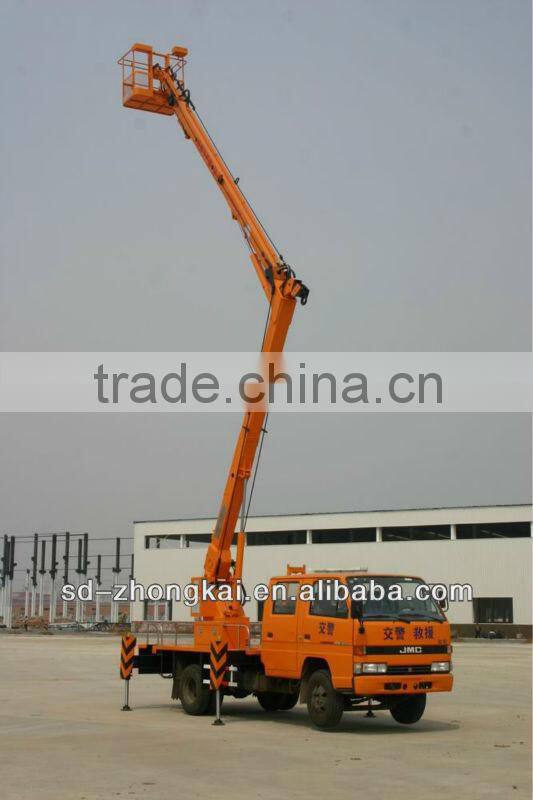

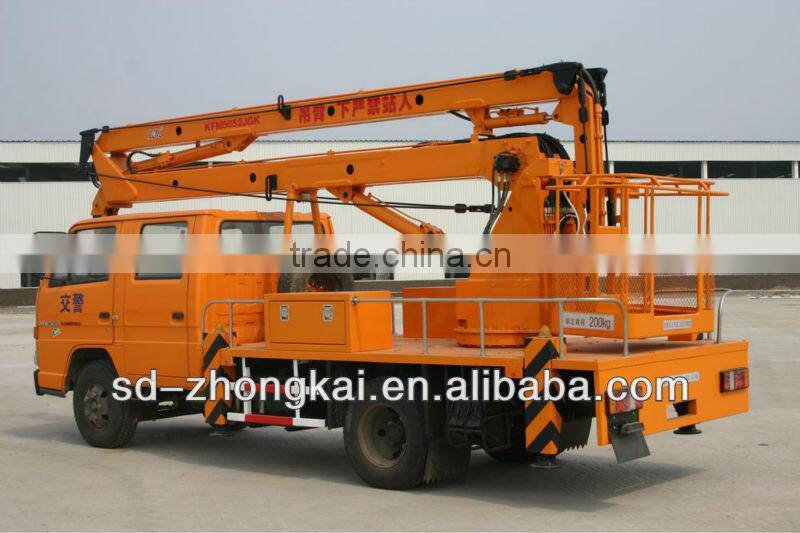

KaiFan Brand 14M Articulated Boom (JMC) Aerial Working Platform

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Tianjin/Dalian/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	Kaifan
Model Number	KFM5052JGK

Product Description

Specifications

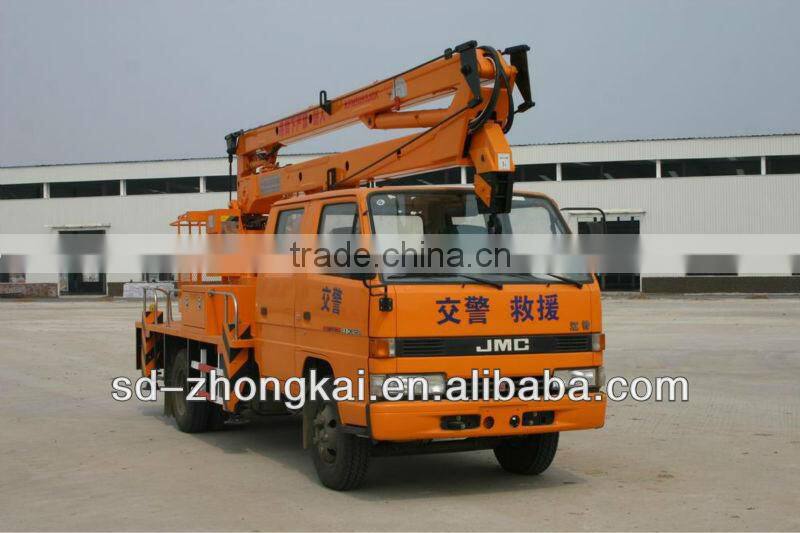

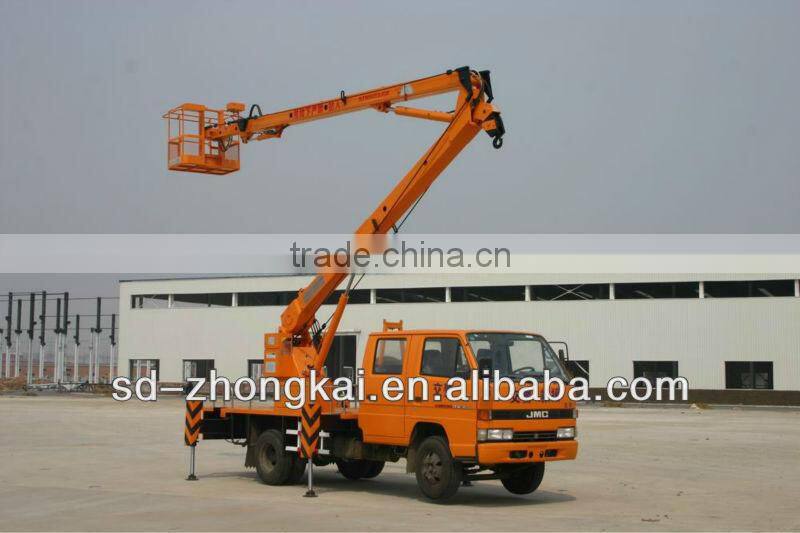

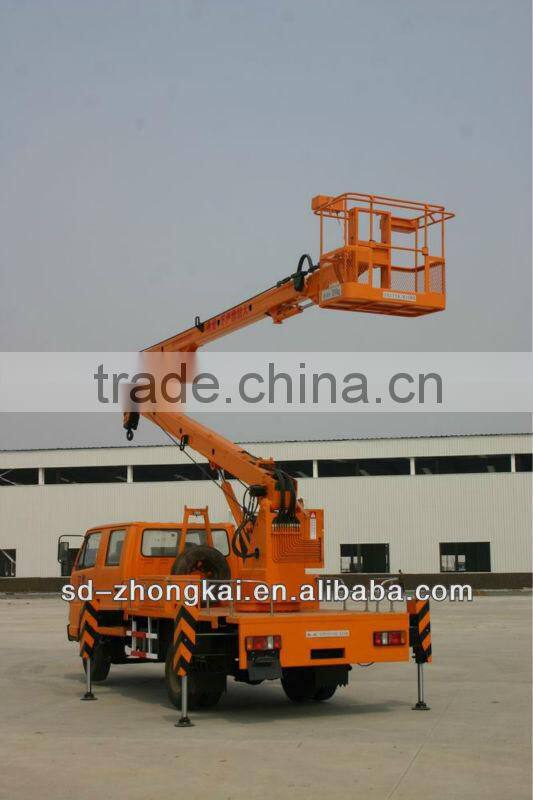

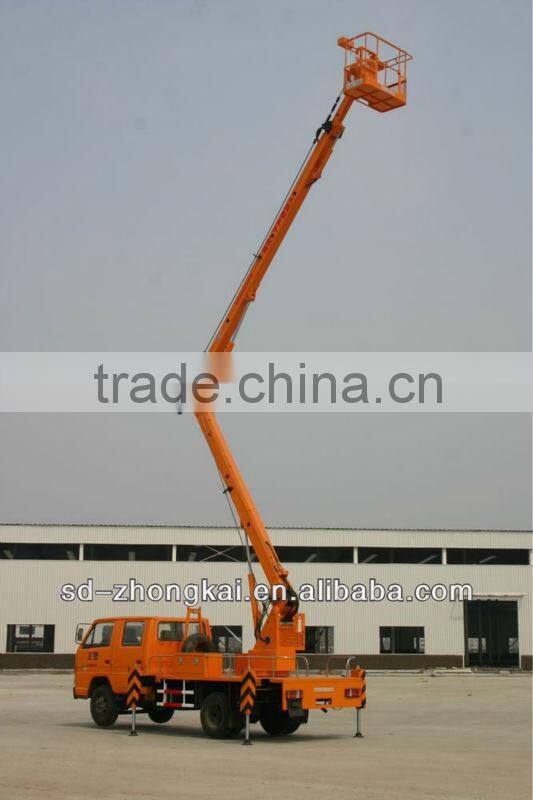

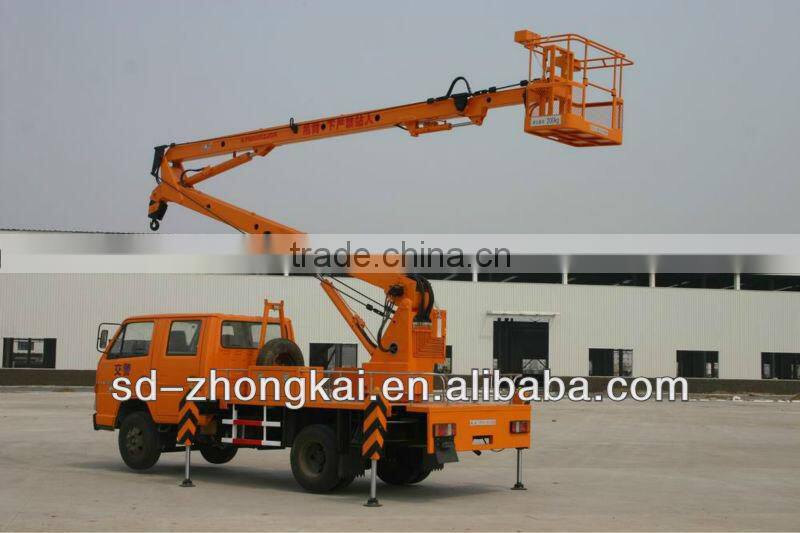

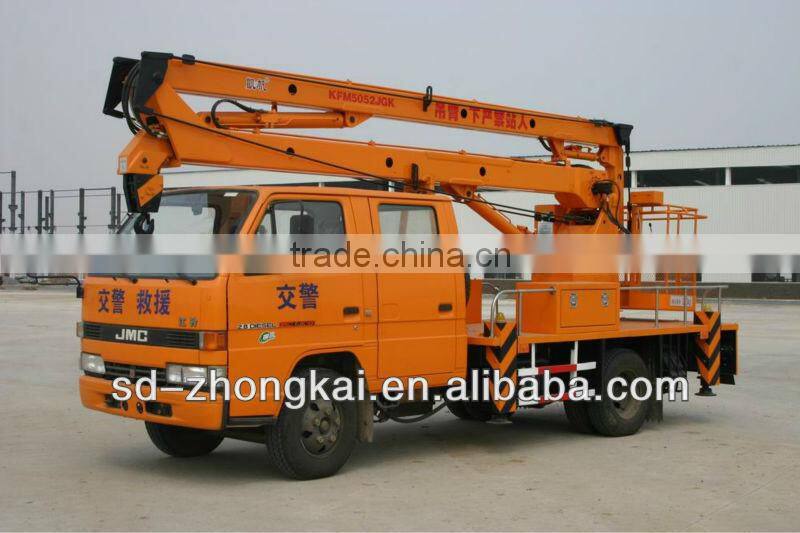

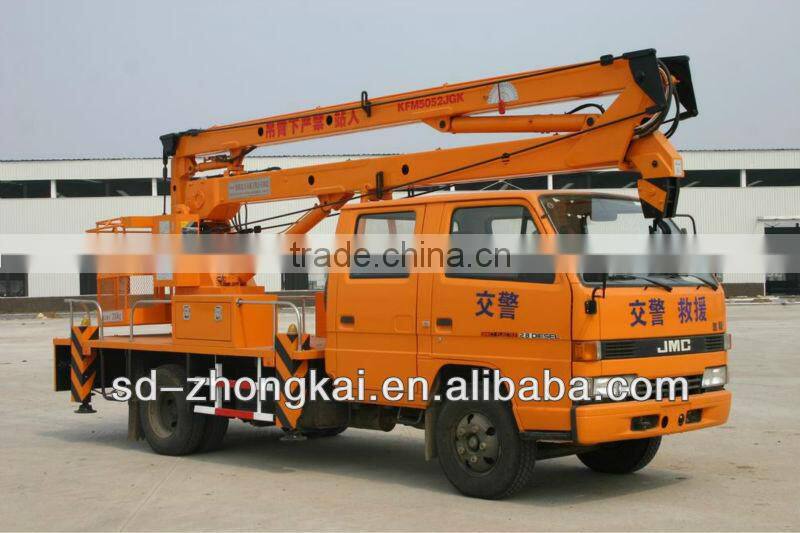

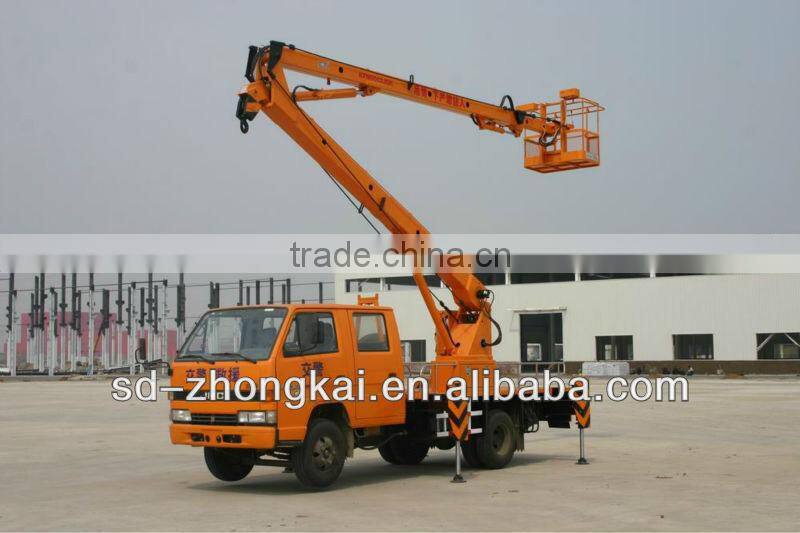

KaiFan Brand 14M Articulated Boom (JMC) Aerial Working Platform
1. Max. Working height: 14m
2.Rated loading: 200kg

KaiFan Brand 14M Articulated Boom (JMC) Aerial Working Platform

Technical Parameters

(KFM5052JGK-GKZ-14J)

1. Working Condition

1. Altitude: 0-1000m
2. Temperature: -25°C--+45°C, environmental relative humidity ≤90%
3. Allowed working condition: solid, stable land, the vehicle should be horizontal
4. Wind force: ≤6 degree (wind speed ≤12.5m/s)

2. Working Range

KFM5052JGK Articulated Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.

3. Main Parameters

Bulletin No.		KFM5052JGK
Type		GKZ-14J
External dimensions(mm)		6320×2000×2920
Structure type		Three-section articulated boom
Working Cage	Internal size(mm)	1100×600×1100
	Rated loading(kg)	200(or 2 persons)
	Max. Working height(mm)	14000
	Max. Height from ground(mm)	12300
	Max. Working radius(mm)	7050
	Working radius when doing the highest height(mm)	2990
Working Boom	Max. Raising angle of lower boom(º)	70
	Max. Raising angle of upper boom(º)	70
	Max. Raising angle of jib(º)	90
	Boom rack rotation angle(º)	360
Outrigger	Vertical span(mm)	2950
	Horizontal span(mm)	2750
	Travelling of vertical outrigger(mm)	450
	Adjustment	Single adjustable
Lifting	Rated lifting weight(kg)	995
Lifting	Rated lifting height(mm)	7700

4. Chassis Introduction

Traveling Performance Parameters	Chassis model	JMC JX1060TSG23
	Persons	2+3
	Axle base (mm)	3360
	Wheel base (front/rear)(mm)	1385/1425
	Driving mode	4×2
	Front suspension(mm)	1015
	Rear suspension(mm)	1815
	Approaching angle(º)	27
	Departure angle(º)	11
	Max. Grade ability(%)	28
	Min. Turning diameter(mm)	13600
	Min. Ground clearance(mm)	190
Engine	Engine model	JX493ZLQ3
	Rated power(kw/r/min)	85/3600
	Torque(N, m/r/min)	285/2000
Max. Speed(km/h)		70
Gas consumption per one hundred miles(diesel oil) (L)		12
Specification of the tire		7.00R16LT
The whole weight(kg)		4880
Max. Weight with whole loading(kg)		5205

5. Equipments Introduction

1. JMC JX1060TSG23
2. Working boom assembly
3. Rotation structure assembly
4. Body transformation assembly
5. Extending outrigger
6. Spare type & tool box
7. Hydraulic system assembly
8. Electric system assembly
9. Safety control system
10. Working cage assembly
11. Safety belt
12. Safety lift & Moving guard bar
13. Balance slid rod device
14. Maintenance bag & tools
15. Safety warning & Light
16. Air- conditioning
17. Lifting device

6. Vehicle Information

1. Manual Instruction
2. Operation manual of chassis
3. Guarantee of chassis
4. Certification of quality of the vehicle
5. Maintenance Manual (Operation instruction)
6. Operating safety certification
