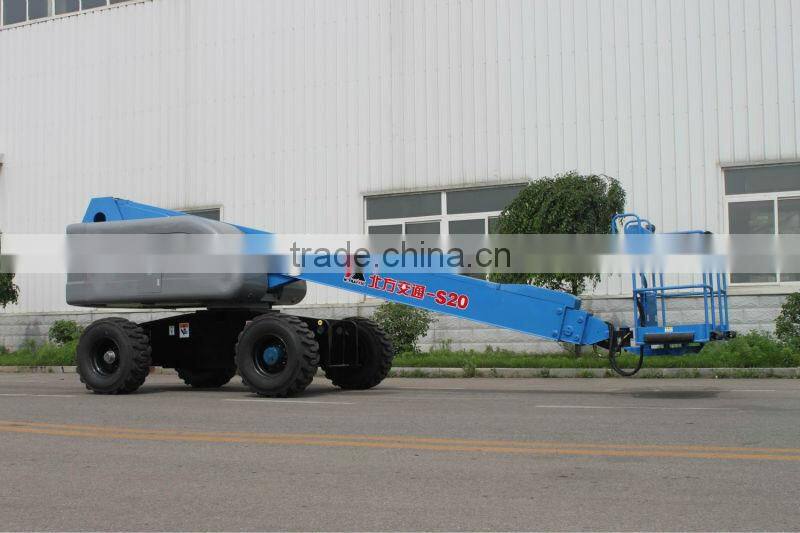

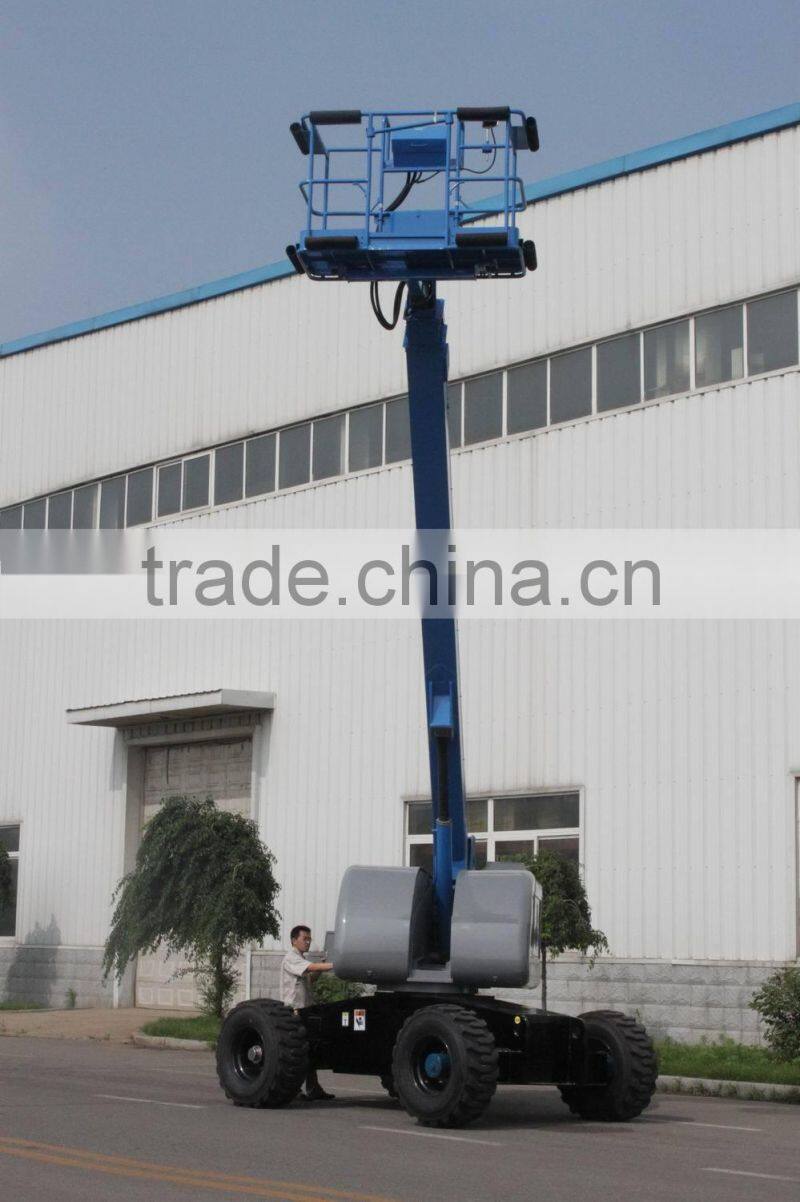

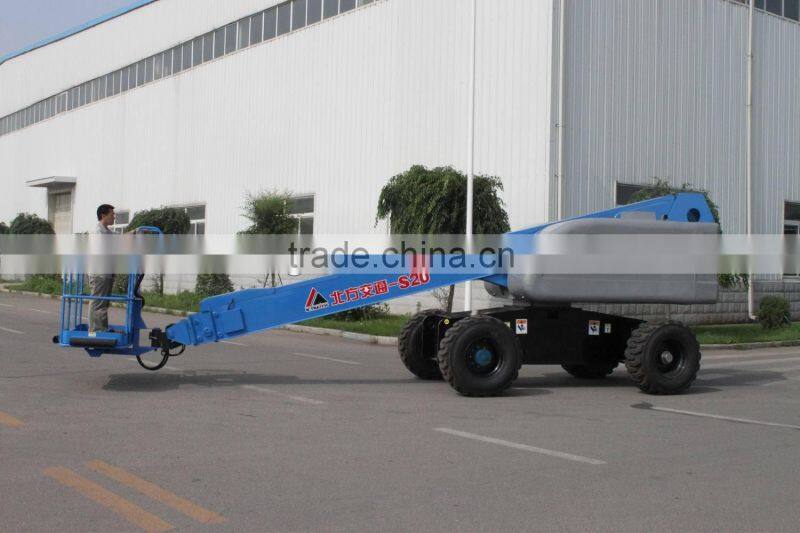

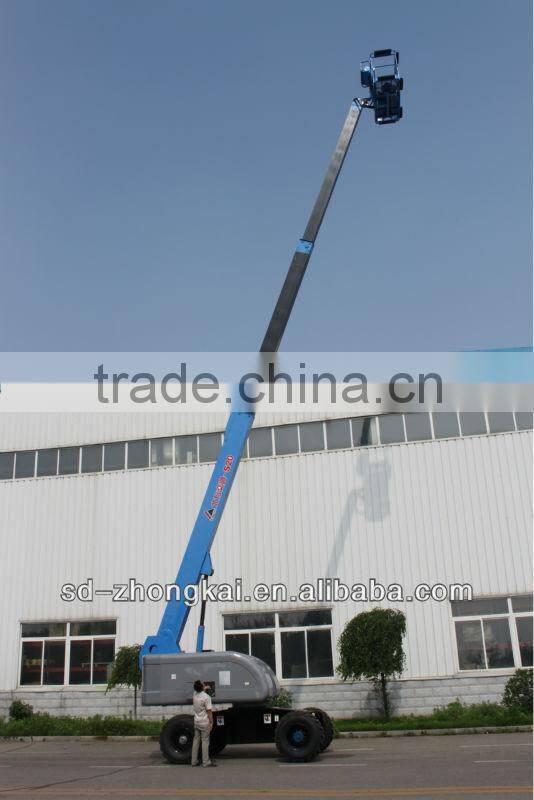

KaiFan Brand 20M Articulated Boom Self-propelled Aerial Working Platform

Specifications

KaiFan Brand 20M Articulated Boom Self-propelled Aerial Working Platform

Technical Parameters

(KFM-ZS18)

1. Working Condition

1. Altitude: 0-1000m
2. Temperature: -25°C--+45°C, environmental relative humidity ≤90%
3. Allowed working condition: solid, stable land, the vehicle should be horizontal
4. Wind force: ≤6 degree (wind speed ≤12.5m/s)

2. Working Range

KFM-ZS18 Self-propelled Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.

3. Product Advantages

The basket can self-adjust with large load capacity.
When chassis tilt, the turntable can automatic level.
Equipped with the option of double-wheels and four-wheels.
The turntable rotates for continuous 360 degree.
Strong gradeability.

4. Main Parameters

5. Technical Features

Working height is 20m. Load capacity of basket is 227kg. Optional weighing sensor, prevent overloading, good security. Fully hydraulic driven, imported wheel edges reducer, large torque and high gradeability. Wheel-track can be adjusted in the working platform according to the working condition. Make sure of the safety and convenient transportation. Adopting Statistical Process Control, not only save energy, but also reduce wear of tire. Imported high-strength steel, full telescopic boom structure, large working outreach, safety and reliability. Rotate self-adjustable working platform, optional anti-collision device. Adopting the original imported Deutz diesel engine from Germany, to make sure the sufficient power, stability and reliability. Adopting the industrial foam tire or solid tire, drive on the rough pavement safely. Hydraulic system adopted the international advanced integrated modular technology of cartridge valve, stability and reliability. Adopting the advanced CAN digital electronic control technology, protection grade of electrical system reached IP65, interlock of ground and working platform, monitoring by level sensor and long angle sensor. Equipped with emergency pump, free customers of their worries.

6.   Vehicle Information

1. Manual Instruction
2. Certification of quality of the vehicle
3. Maintenance Manual (Operation instruction)
4. Operating safety certification
